Carr Lane CL-500500600-TTBM-50 | 5/8-11 Thread Two-Sided Tooling Block

Two-Sided Tooling Blocks-Modular, Heavy 5/8"

Precision tooling block for horizontal machining centers, incorporating our Heavy (5/8-11) modular system. One-piece cast iron construction provides superior accuracy, dimensional stability, and vibration dampening. Both faces are Finish machined to tight tolerances and qualified to the base, with a grid of multipurpose holes spaced at 2.0000" within .0008" of true position. Universal mounting holes fit almost any inch or metric slot spacing. The tooling blocks fit 500mm square pallets.

Application Information

These tooling blocks have two identical wide faces to allow fixturing large parts.

Multipurpose Holes(Heavy)

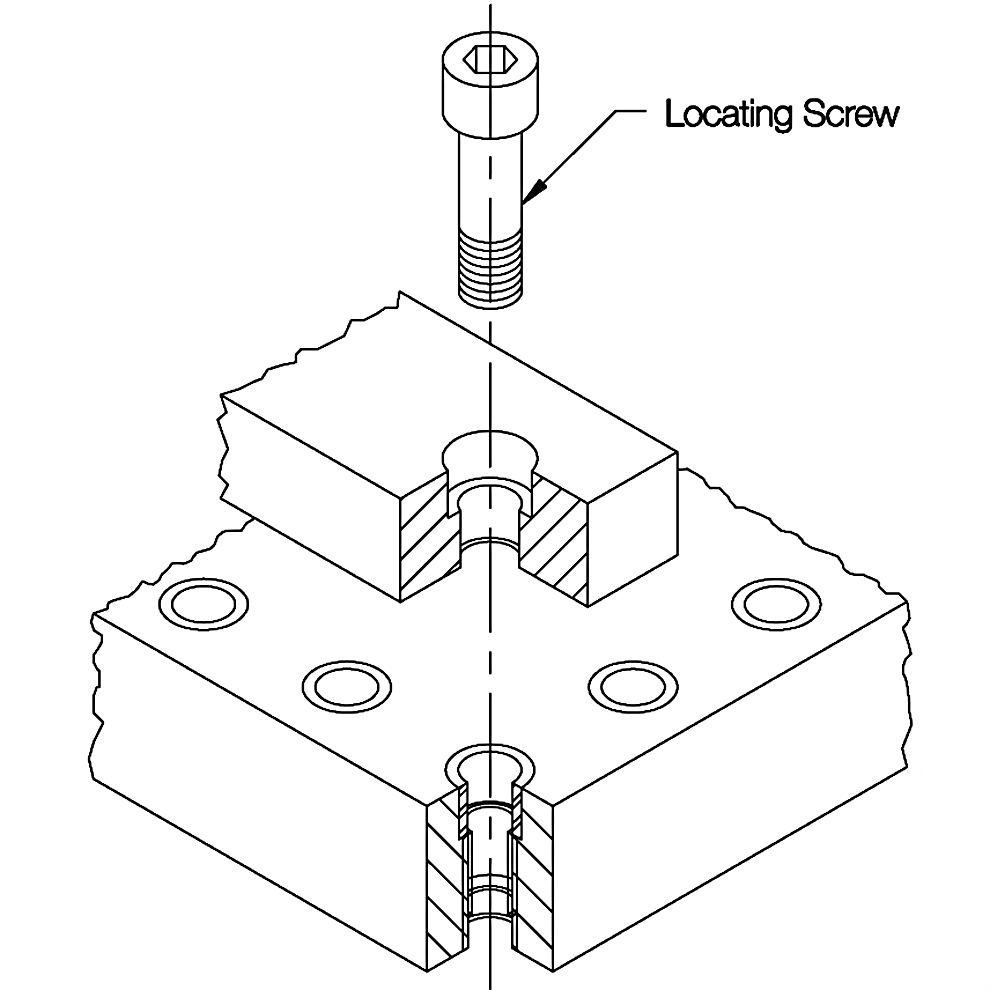

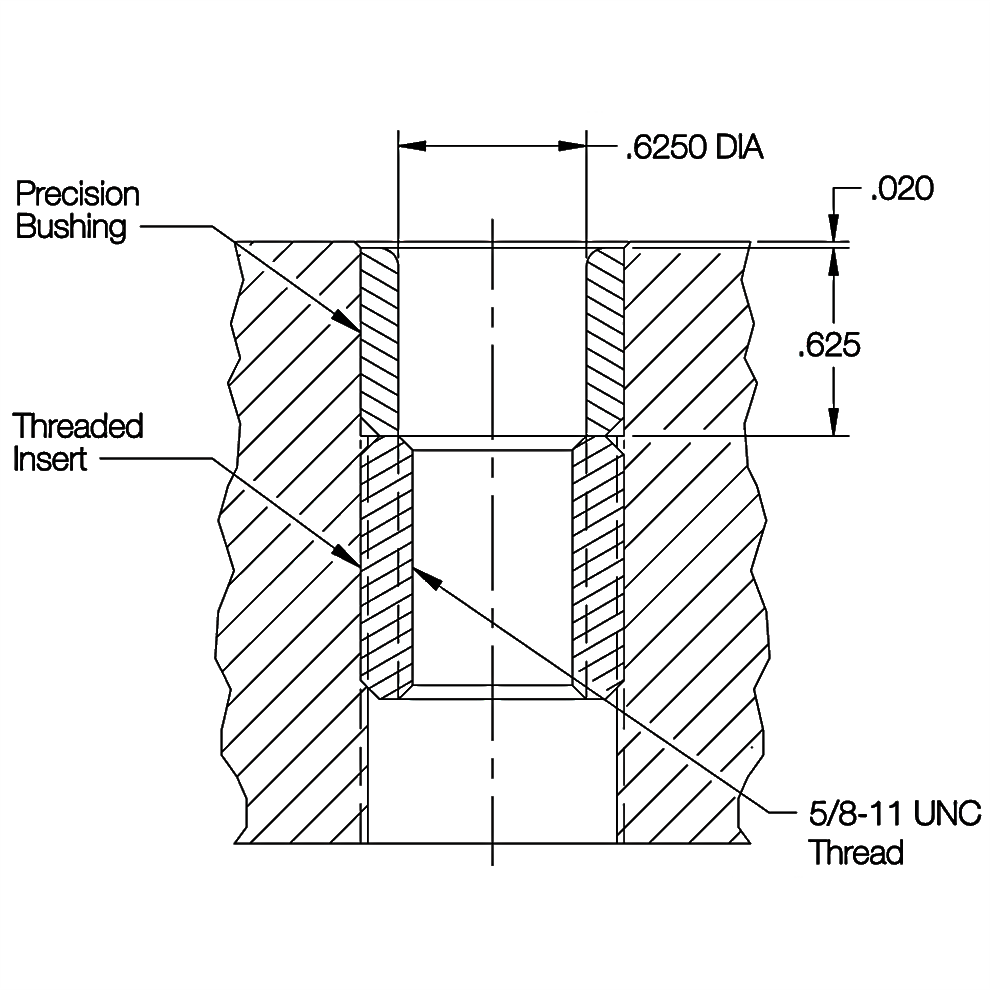

Each multipurpose hole on a Standard System MF50 tooling plate or block has a 5/8" ID bushing on top with a 5/8-11 threaded insert below it. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. Locating Screws, with a precision ground shoulder, are used to locate and fasten at the same time.

Dual Mounting Capability

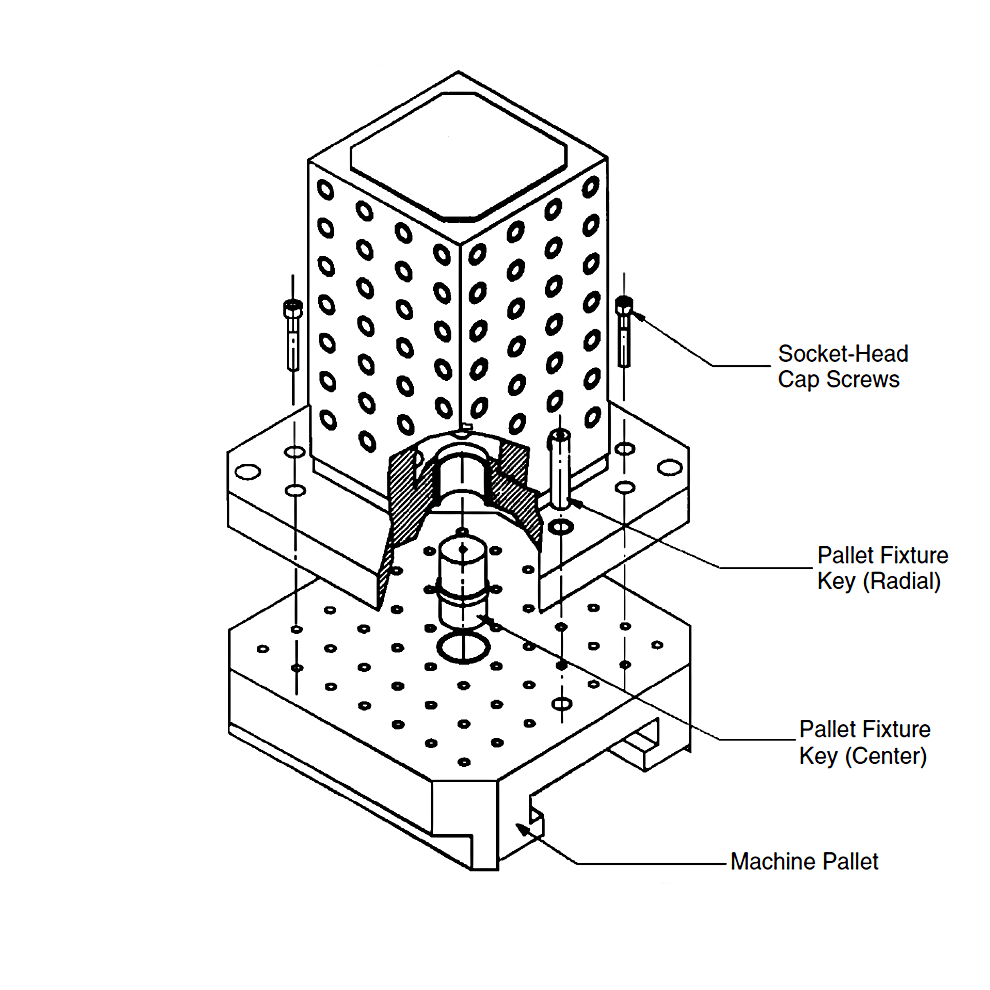

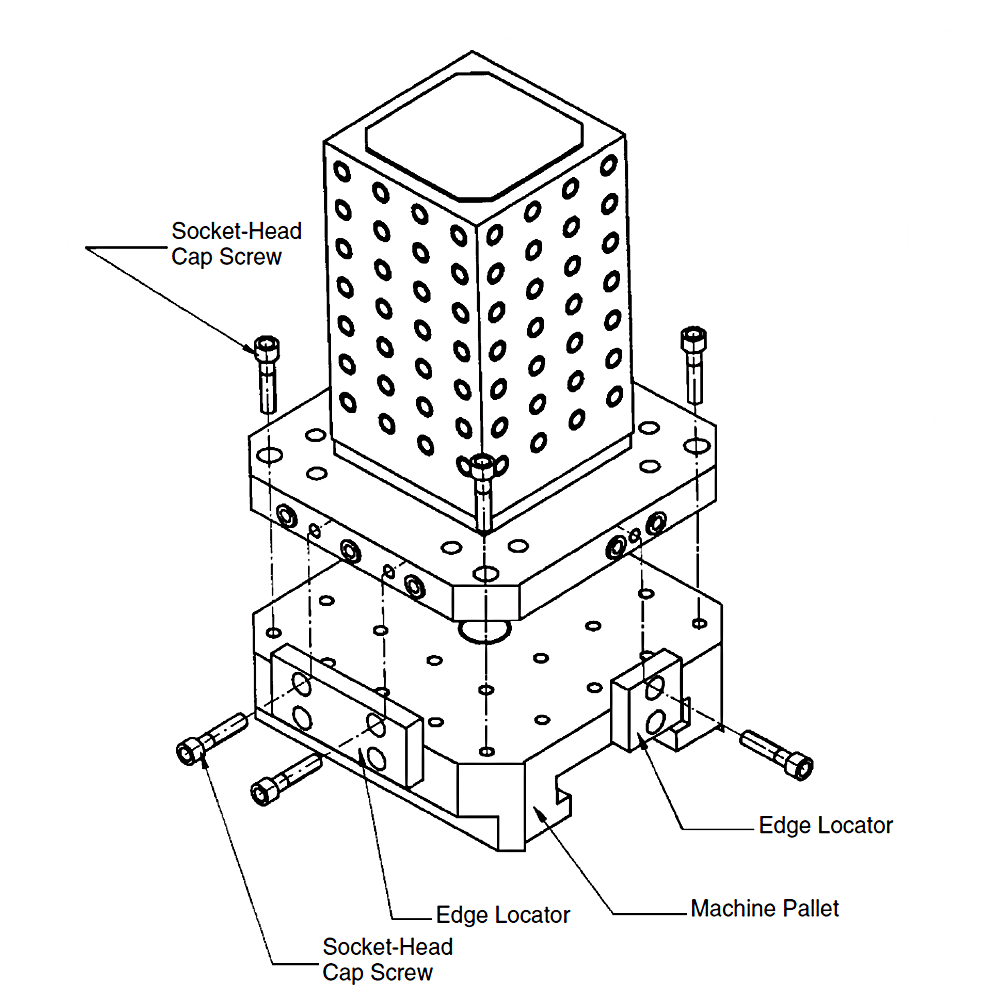

Dual mounting capability allows both JIS mounting (locating from two reference edges) and DIN mounting (locating from center and radial holes) with excellent accuracy. For DIN mounting, see Related Products below for Pallet Fixture Keys. Universal mounting holes fit almost any inch or metric slot spacing.

Material

Parts Specification
