Carr Lane CL-51618-ABS-1.50-S | 5/16-18 Thread Adhesive Bonded Stud

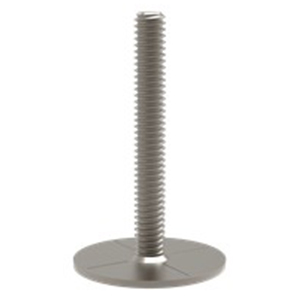

Product Information

Our Adhesively Bonded Studs are heavy-duty structural parts that provide considerable tensile and shear strength. These studs can be attached to virtually any metal, plastic, or composite surface using our acrylic adhesive. They can be bonded on either surface of the base plate, bottom or top. Made of 304 stainless steel for excellent corrosion resistance. The largest two sizes are inertial (friction) welded to a 2” base plate, creating a very strong part with 1,200 lbs tensile strength and 1,500 lbs shear strength.

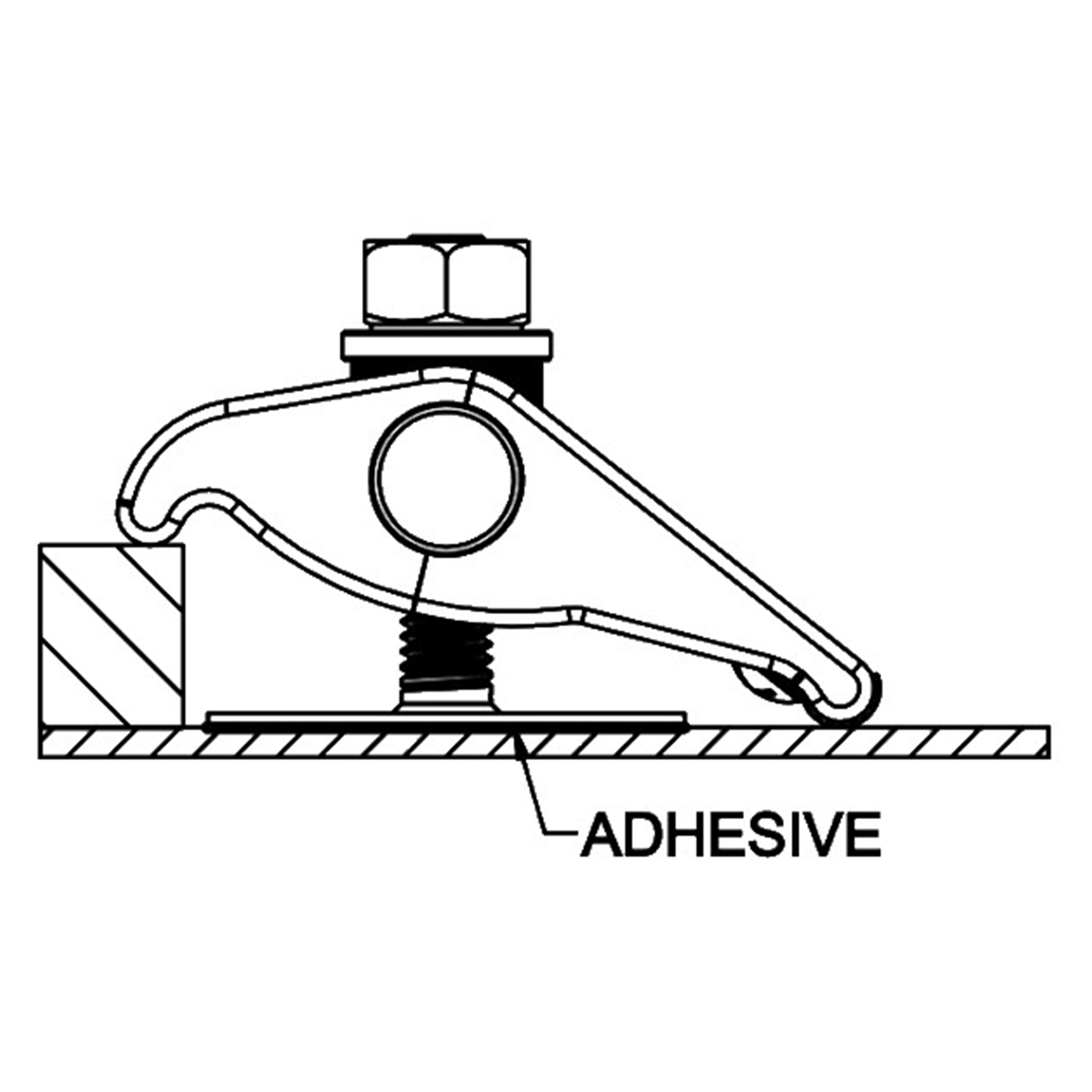

Application Information

Adhesively Bonded Studs are ideal in any application where welding is not possible or threading/tapping a hole is less than ideal. This includes thin wall material and non-metal materials.

Material

Parts Specification
