Product Information

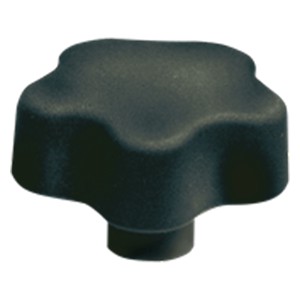

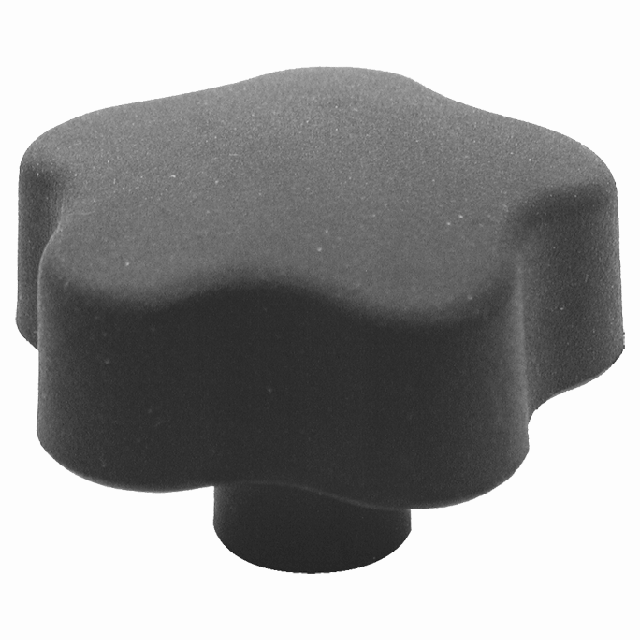

Star Knobs have five lobes to provide a firm, sure grip for applications requiring quick tightening and high torque. This cushion-grip version is made from a unique plastic that feels soft to the touch, comfortable yet rugged. Smooth, rounded lobes to prevent snagging. Textured non-slip, non-glare finish. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Available Sizes
5/16-183/8-16 1/4-205/16-183/8-16 1/4-205/16-18
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Star Knobs (Cushion Grip) | Black cushion-grip plastic (soft touch, matte finish, rugged, excellent impact resistance, operating temperatures to 150 Degree, excellent grip ability even when wet or oily, absorbs vibration) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification

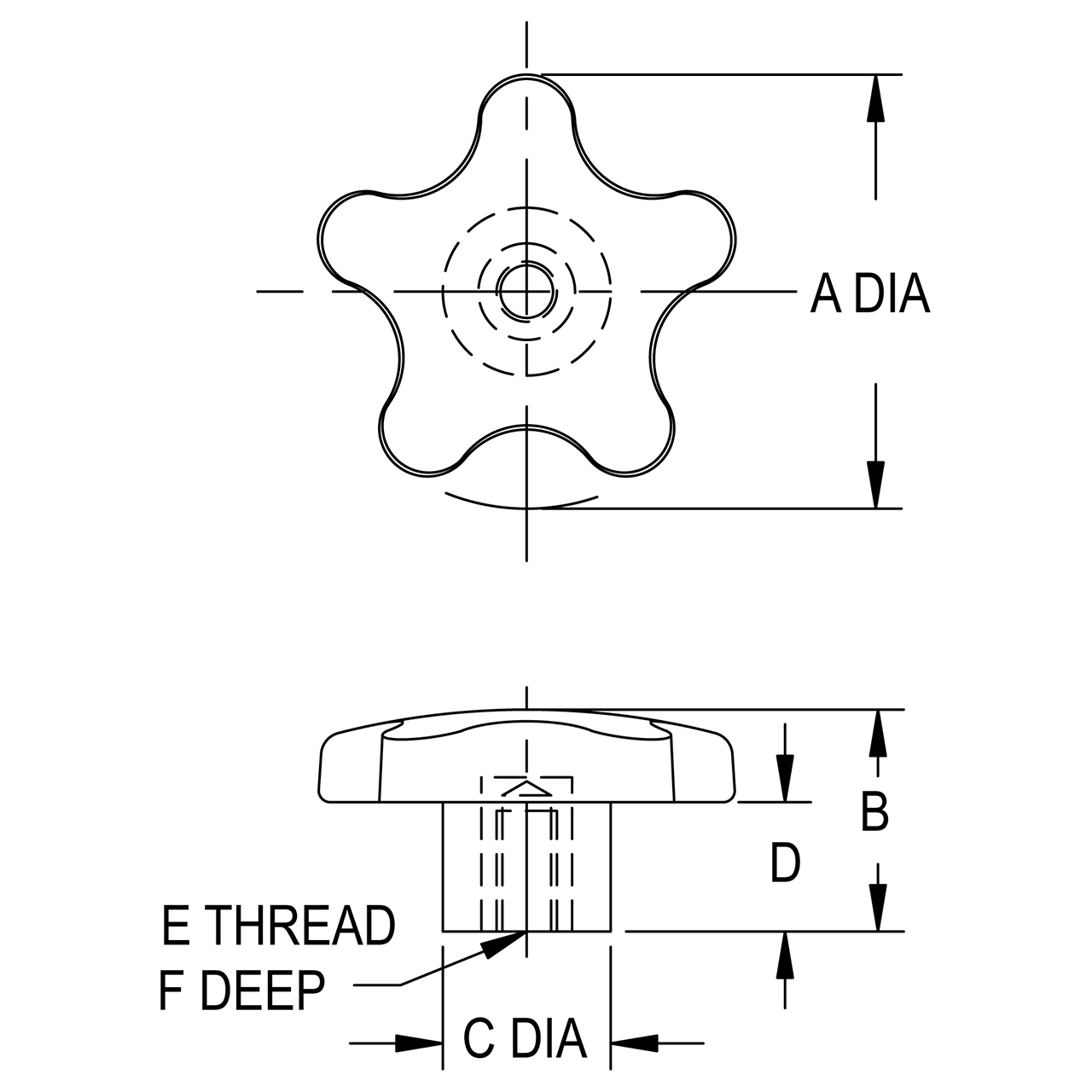

| Part Number | A DIA | B | C DIA | D | E THREAD | F THREAD DEPTH |
| CL-555-SK-PACKOF2 | 2 | 1-3/8 | 3/4 | 33/64 | 5/16-18 | 5/8 |
