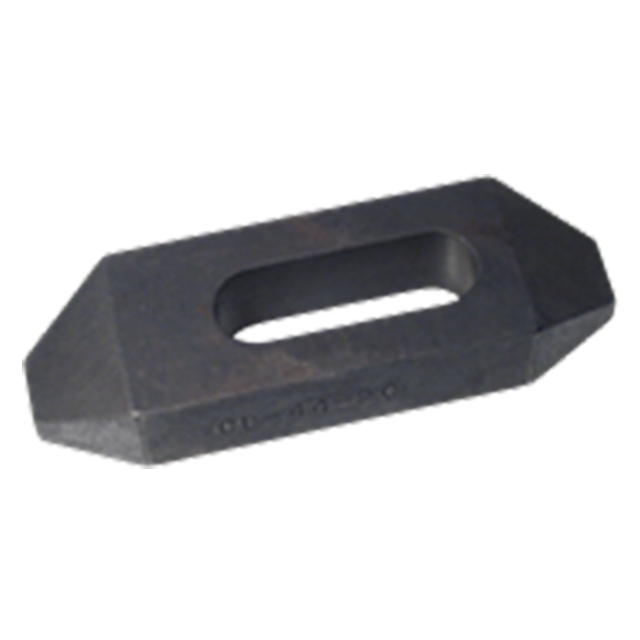

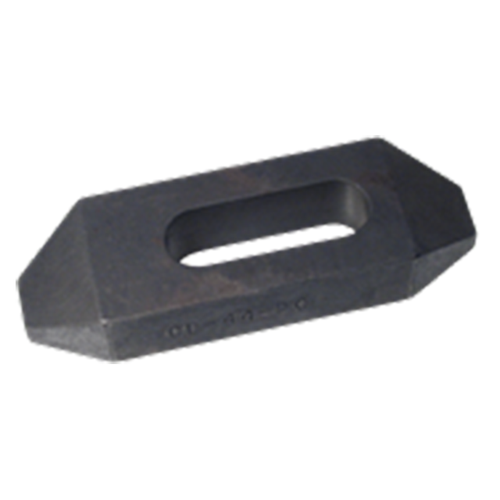

Plain Clamps
Double-end, tapered-nose clamp straps that can be used for holding two workpieces simultaneously, or used with Step Blocks as a rear support for holding a single workpiece. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 11L17 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) |
| 5/8" or M16 | 6" | 7/8" | 1-1/2" | 3/4" | 1-13/32" | 1-15/16" | 11/16" | 9/16" | 7/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
5/8"
