Product Information

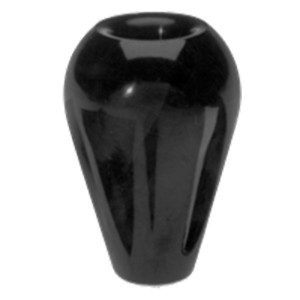

Attractive design suitable for many applications, including control levers and push/pull rods. The solid-plastic version shown here has a counterbored through-hole. This type can be used as a rotating handle by installing with a 3/8" diameter x 1-1/2" long Shoulder Screw. Available in one knob size. Non-standard thread sizes and molded-in studs are available in quantities of 500 and above. Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |

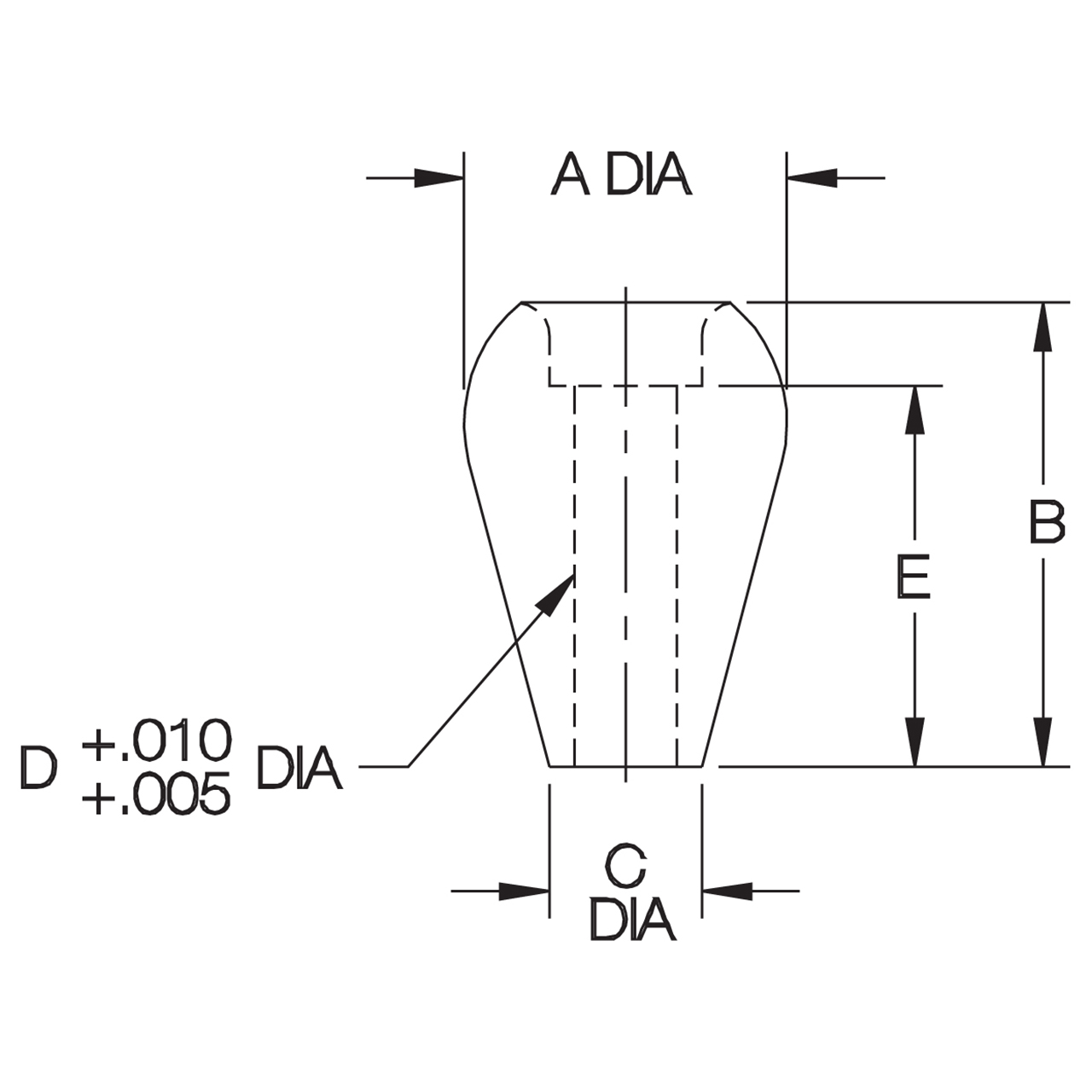

Parts Specification
| Part Number | A DIA | B | C DIA | D | E |
| CL-560-PTK-PACKOF2 | 1-3/16 | 1-3/4 | 9/16 | .375 | 1-7/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1-3/16"
Diameter (Decimal Inch):
1.1900"
Diameter (mm):
30.16mm
