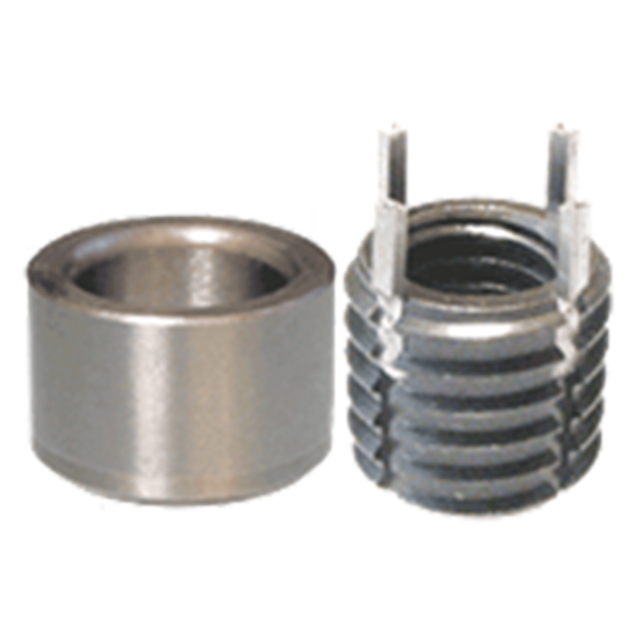

Key Inserts

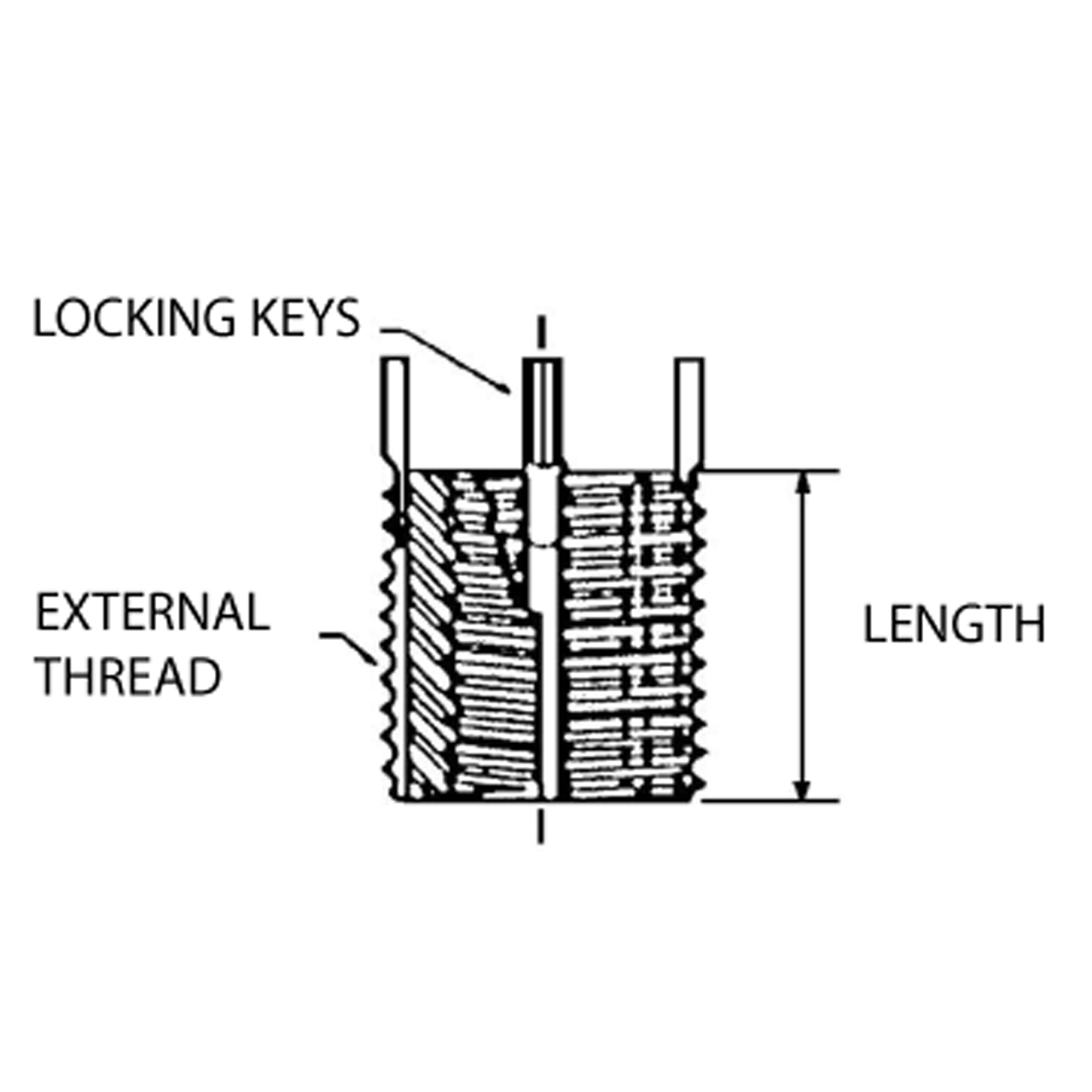

General-purpose threaded inserts with a thick, heavy-duty thread wall, suitable for most applications. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. They provide strong, permanent steel threads in almost any parent material-ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide or Dry Lube | Yes | Yes |
| Keys | 302 Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Internal Thread (Inch) | External Thread (Inch) | Length (Inch) |
| 5/8-11" | 7/8-14" | 0.87" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Length (Inch):
7/8"
Length (Decimal Inch):
0.8750"
Length (mm):
22.23mm
