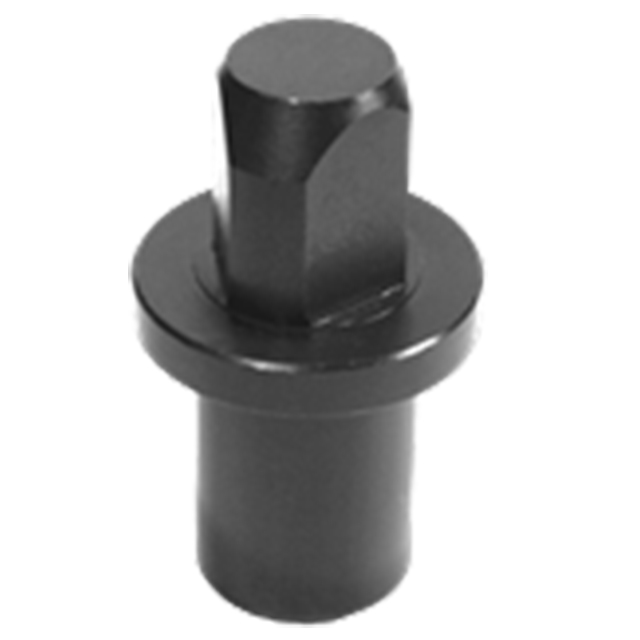

Diamond Locating Pins
One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two holes without binding, because the Diamond Locating Pin is relieved to locate in only 1 axis. The type with a press-fit shank, is designed for permanent installation. Head and shank diameters are concentric to within .0005" TIR. Made in USA.
Locating Principles
When a round pin and diamond pin are used together, the round pin is the primary, 2-axis locator, while the diamond pin is the secondary, 1-axis locator. Diamond pins are relieved to locate only radially around the round pin, avoiding redundant location. This prevents binding, yet still maintains high accuracy.
Specials
Head diameters are limited to the following ranges:
5 0.1150-0.3180
8 0.2780-0.5040
12 0.4640-0.7540
16 0.7140-1.0040
Example: For a Diamond Locating Pin with a 1/2" shank and A = 0.4000".
Material
Material | Heat Treat | Finish | DFARS | RoHS |
1144 Steel | Heat Treated Rc 48-55 | Black Oxide | Yes | Yes |
Parts Specification
B Shank Diameter (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) |
3/4" | 19/32" | 0.5918" | 1-15/16" | 11/16" | 1-1/8" | 3/16" |
