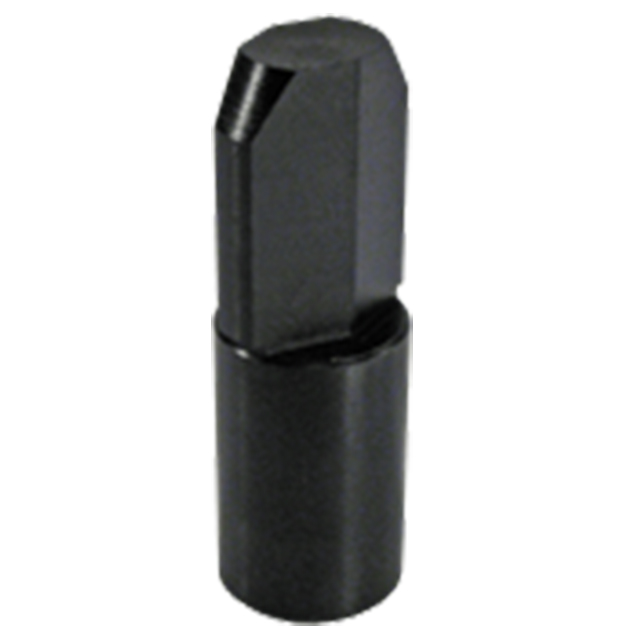

Carr Lane CL-6-DPY | 9/16" Diameter x 1/2" Shank Black Oxide Coated Diamond Pin

Diamond Pins

Precision locating pins that have a chamfered tip for easy part loading, and a shoulder to resist downward forces. These locating pins have important advantages over standard dowel pins. One Round Pin and one Diamond Pin are often used together to locate from two mounting holes in a workpiece, or to align two pieces of a fixture, without binding.

These stainless-steel diamond pins are relieved, to locate only in 1 axis. Head and shank diameters are concentric to within .0005" TIR.

Made in USA.

Diamond Pin Locating Principles

When a Round Pin and Diamond Pin are used together, the Round Pin is the primary, 2-axis locator, while the Diamond Pin is the secondary, 1-axis locator. Diamond Pins are relieved to locate only radially around the Round Pin, avoiding redundant location. This prevents binding while loading and unloading the part, yet still maintains high accuracy.

Material

Parts Specification
