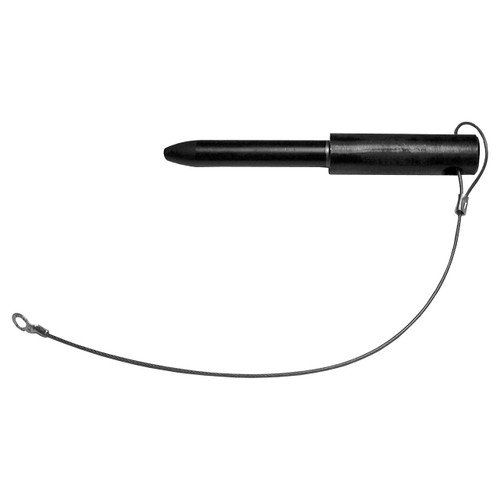

Shoulder Potting Pins
Removable alignment pins used for positioning components to be potted in carbon-fiber composites. The precision-ground pin body and the handle are made from one solid piece of high-carbon steel. The handle is tapered to allow the use of a pulling tool for removal. Carr Lane Shoulder Potting Pins feature an all-in-one design to help improve accuracy and integrate seamlessly with your tooling requirements. All Carr Lane shoulder potting pins are proudly designed and built in the USA
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E Thread (Inch) | H (Inch) |
| 3/8" | 0.3750" | 4.00" | 2-5/8" | 5/8" | 1/4-20" | 3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
3/8"
Pin Shape:
Shoulder Potting Pin
Ships:
From Manufacturer
