Product Information

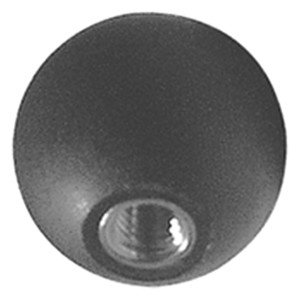

Durable multi-purpose plastic knob, suitable for many applications. The cushion-grip-plastic version shown here is made of a unique material that feels soft to the touch, to be comfortable yet rugged. Available in one knob size (1-1/2" diameter), with tapped-hole sizes from 1/4-20 to 1/2-13. Molded-in brass insert provides superior thread strength. Non-standard thread sizes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.

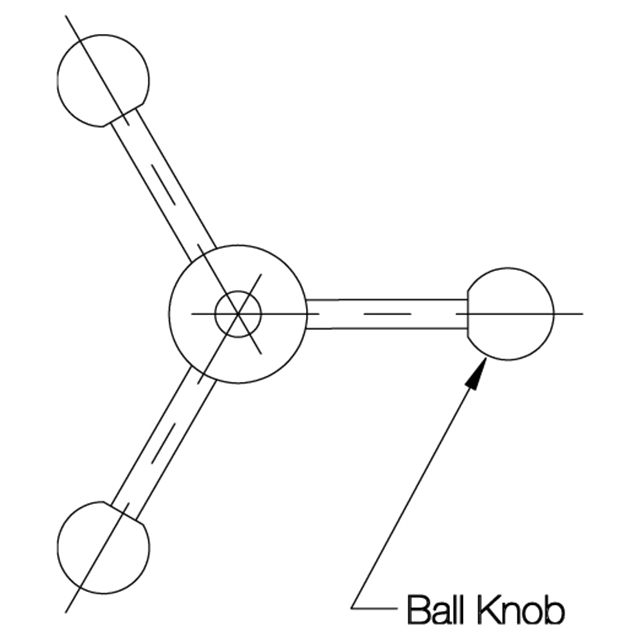

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black cushion-grip plastic (soft touch, matte finish, rugged, excellent impact resistance, operating temperatures to 150 Degree, excellent grip ability even when wet or oily, absorbs vibration) | - | Molded-in brass insert | ✔ | ✔ |
Parts Specification
| Part Number | A DIA | B THREAD | C DIA | D | E |
| CL-6425-PB-PACKOF2 | 1-1/2 | 5/16-18 | 5/8 | 5/8 | 1-15/64 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
5/16-18"
Diameter (Inch):
1-1/2"
Diameter (Decimal Inch):
1.5000"
Diameter (mm):
38.10mm
