Product Information
Thermoplastic knob with a textured non-slip, non-glare finish. Modern three-prong design provides quick tightening and high torque. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Three-Prong Knobs – Tapped (Thermoplastic) | Black Thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150 Degree) | - | Molded-in Brass | ✔ | ✔ |
Parts Specification

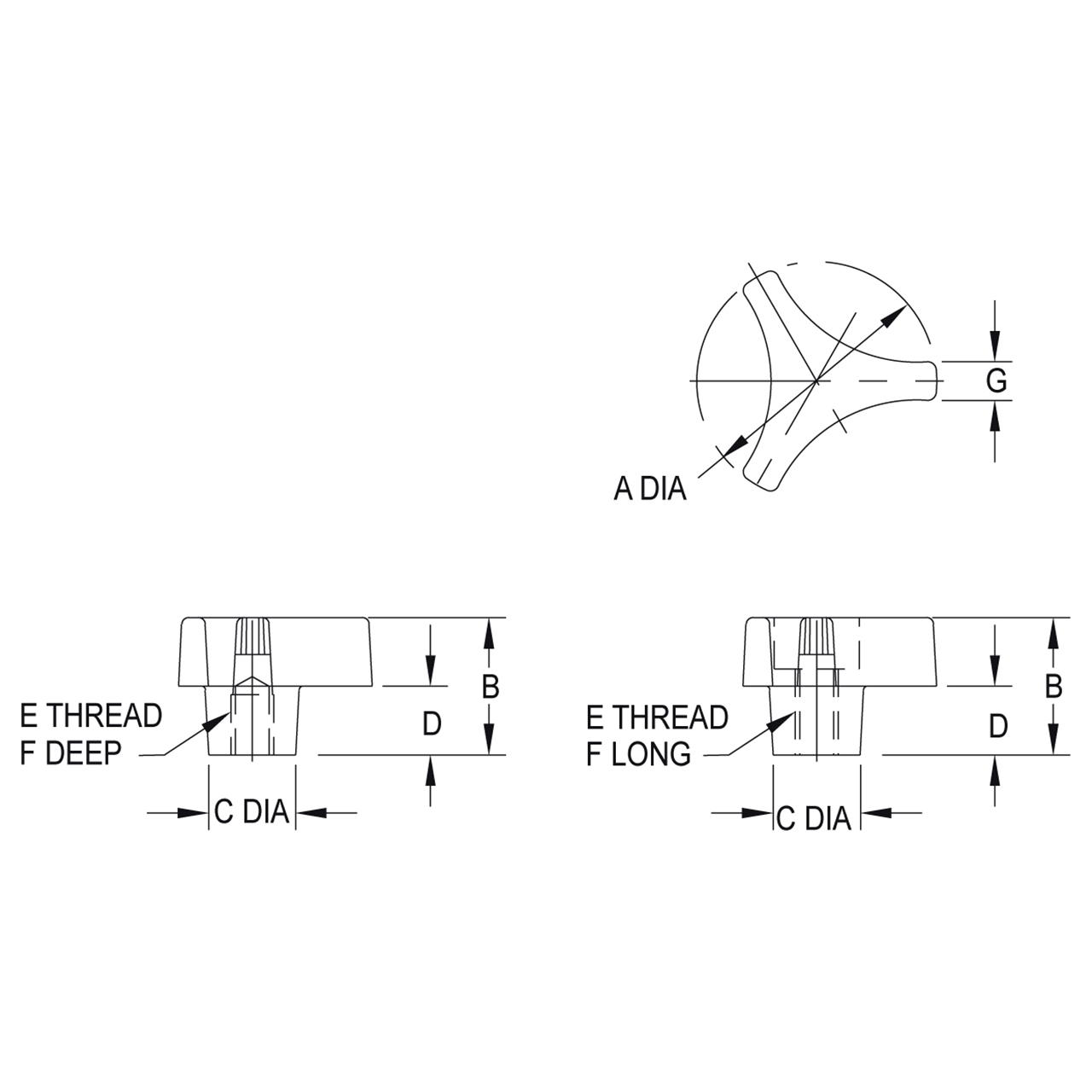

| Part Number | A DIA | B | C DIA | D | E THREAD | F THREAD DEPTH | G |
| CL-650-TPK-PACKOF2 | 2 | 1-1/16 | 5/8 | 1/2 | 5/16-18 | 7/16 | 3/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
5/16-18"
Diameter (Inch):
2"
Diameter (Decimal Inch):
2.0000"
Diameter (mm):
50.80mm
