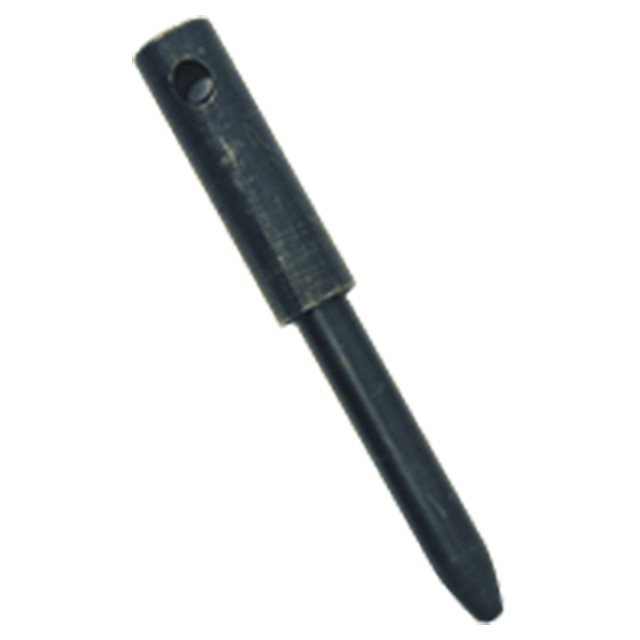

Shoulder Pins
Removable locating pins with a straight handle, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
Shoulder Pins can be used for accurately aligning two plates
Material
Item | Material | Heat Treat | Finish |
Pin | 1215 Steel | Carburized-hardened | Black Oxide |
Handle | 1215 Steel | - | Black Oxide |
Parts Specification
A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
1/4" | 0.2500" | 2-1/2" | 2-5/8" | 1/2" | 1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
1/4"
Pin Shape:
Shoulder Pin
Ships:
From Manufacturer
