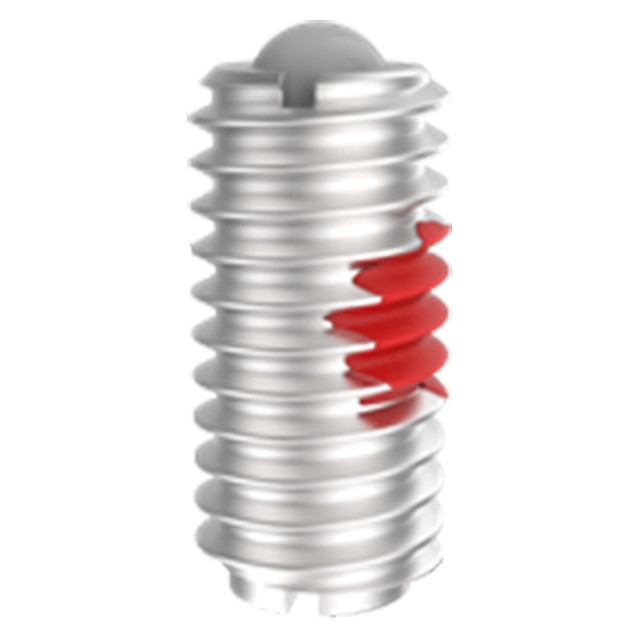

Ball Plungers-Stainless Steel with Delrin Ball
Stainless steel body for extra corrosion resistance, and a Delrin ball to prevent marring. Made in USA.
Install and/or adjust from either end. When using the slot at the ball end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring. A thread-locking element holds the unit securely in place after installation.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | White Delrin 500 | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread | End Force | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) |
| 1/2-13 | Heavy | 6 lbs. | 30 lbs. | 3/4" | 0.072" | 0.281" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
0.2810"
Thread:
1/2-13"
Diameter (Inch):
1/4"
Diameter (mm):
7.14mm
