Product Information

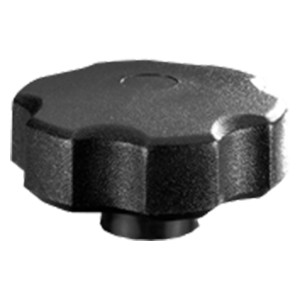

Thermoplastic knob with a textured non-slip, non-glare finish. Large easy-grip knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Available Sizes
5/16-183/8-16 5/16-183/8-16 1/4-205/16-18
Material
ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
Fluted Knobs – Tapped (Thermoplastic) | Black Thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150 Degree) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification

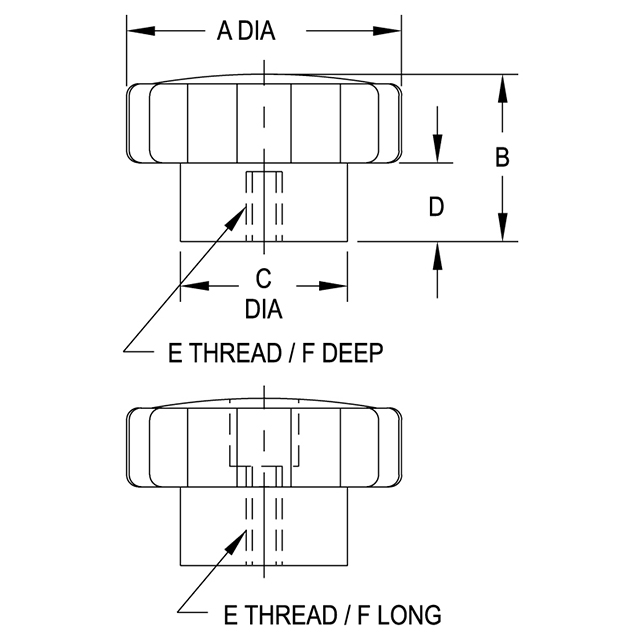

Part Number | A DIA | B | C DIA | D | E THREAD | F THREAD DEPTH |
CL-750-PFK-PACKOF2 | 3-1/4 | 1-5/8 | 2 | 3/4 | 5/16-18 | 3/4 |
