Carr Lane CL-8-RGF-S | #10-32 Thread x 1/2" Diameter Hardened Steel Round Gripper

$5.89
Brand:
Carr Lane
Thread Size:
#10-32
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
SKU:
50018257
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-8-RGF-S | #10-32 Thread x 1/2" Diameter Hardened Steel Round Gripper

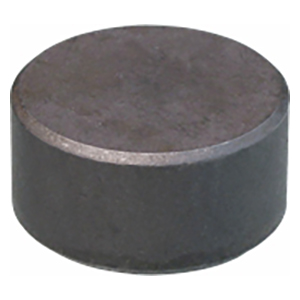

Product Information

Flat Round Grippers are replaceable inserts that can be used to provide additional wear resistance, or as rest pads. The grippers shown here are made of hardened stainless steel for high strength and excellent corrosion resistance. Available in diameters from 3/8 to 1" (10 to 25mm in metric). Made in USA.

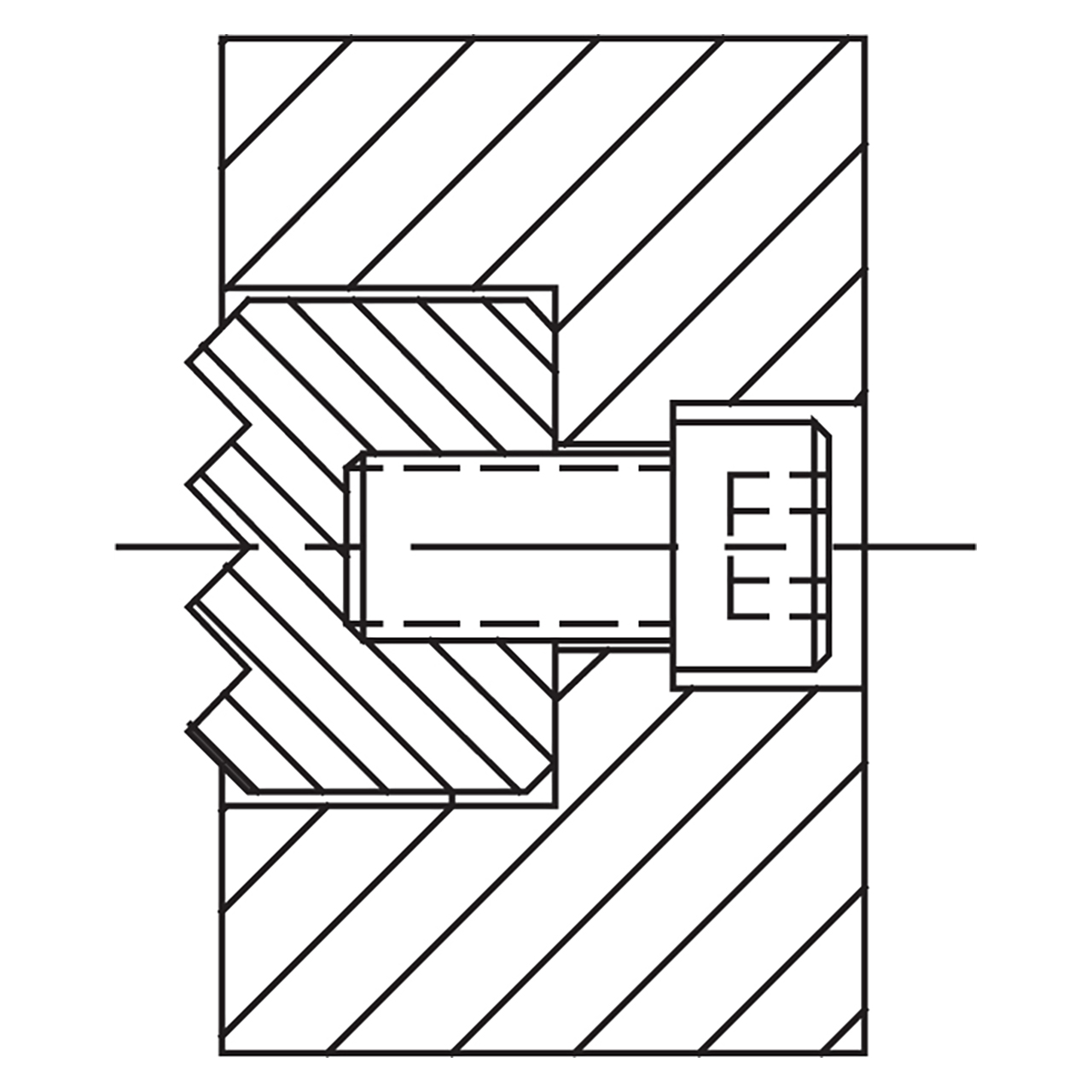

Installation

Fasten from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

MATERIALHEAT TREATFINISHDFARSRoHS
17-4 stainless steelheat treated Rc 43-46-✔✔

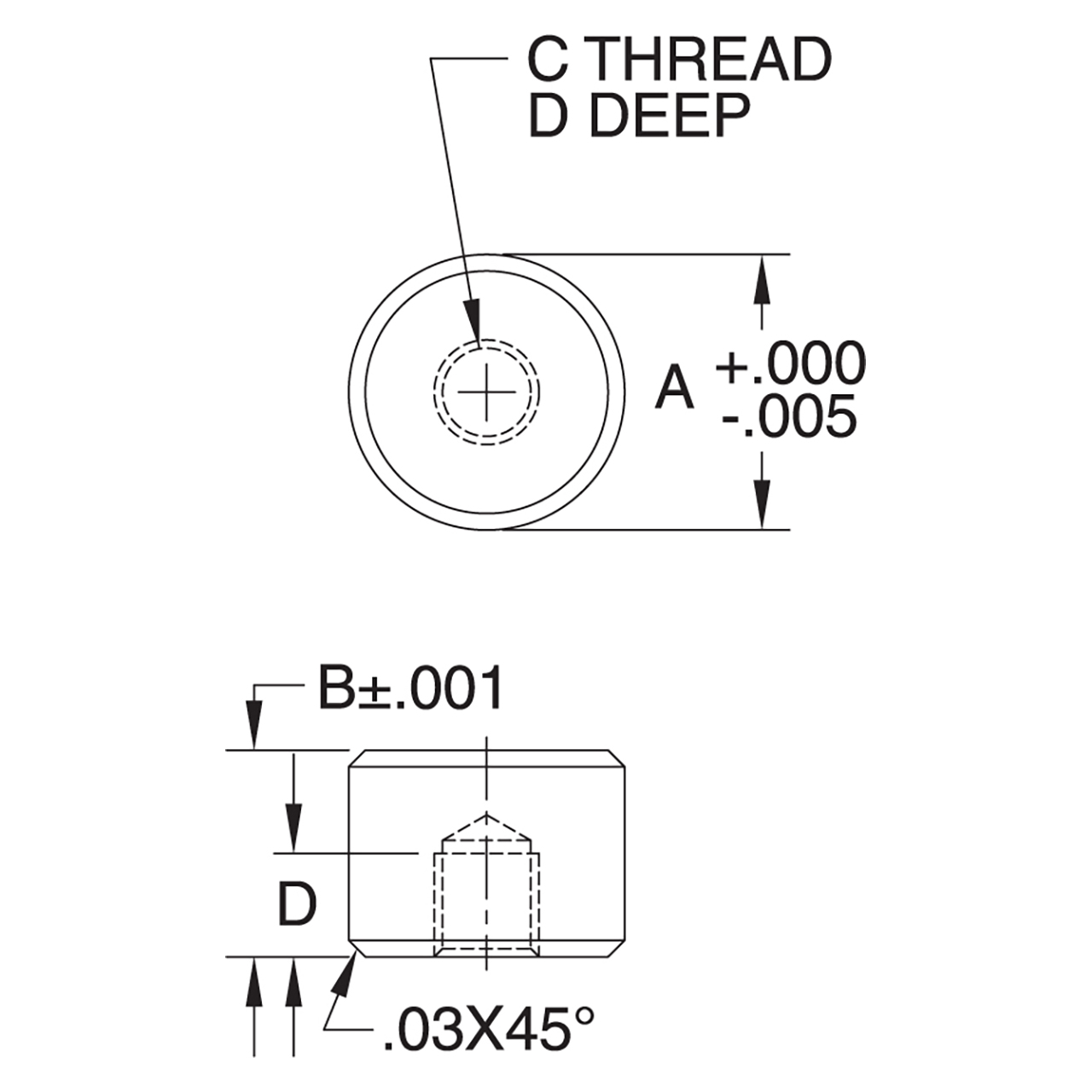

Parts Specification

Part NumberA DIAB NOMINALB ACTUALC THREADD
CL-8-RGF-S1/23/8.3750#10-323/16
