Carr Lane CL-8-RLT-.3917 | 10.00mm Diameter x 1/2" Shank Round Locating Pin

Product Information

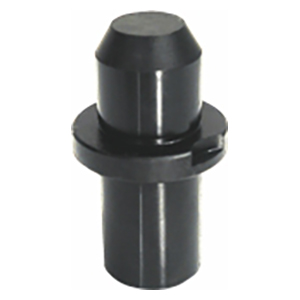

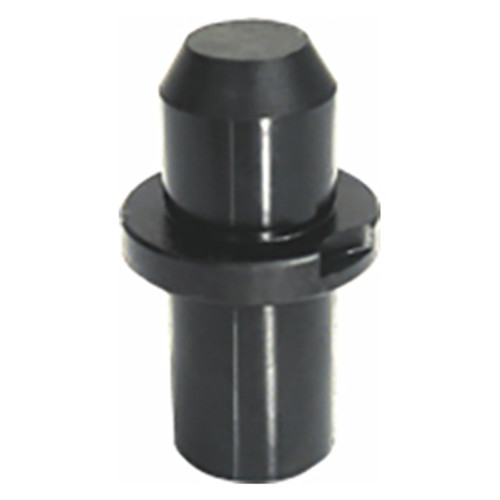

These precision locating pins are especially useful for workpiece location because of the wide selection of head diameters available to fit machined holes in the part. One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two holes without binding, because the Diamond Locating Pin is relieved to locate in only 1 axis. The type shown here, with a slip-fit shank and lockscrew slot, is designed for renewable installation. Head and shank diameters are concentric to within .0005" TIR. Made in USA. Round & Diamond Locating Pins are available in four standard shank diameters, each with a range of standard head diameters in 1/32" increments (2mm increments in metric), each available in either standard or undersize fit. In addition to standard diameters, these pins are also quickly made to order in any special head diameter from .1150" to 1.0400" in .0001" increments. The Part Configurator link at the top of this page can be used for Round Locating Pins with a special head diameter.

Application Information

A series of locating pins can take the place of a locating plug. The pins are positioned at three points, 120 degrees apart, around the internal diameter of the hole. This arrangement is usually much more economical than making a custom plug. Fool proofing prevents improper loading of a workpiece. The problem is most prevalent with parts that are symmetrical or located concentrically. The simplest way to foolproof a workholder is to position one or two pins in a location that ensures correct orientation.

Locating Principles

When a round pin and diamond pin are used together, the round pin is the primary, 2-axis locator, while the diamond pin is the secondary, 1-axis locator. Diamond pins are relieved to locate only radially around the round pin, avoiding redundant location. This prevents binding, yet still maintains high accuracy.

Specials

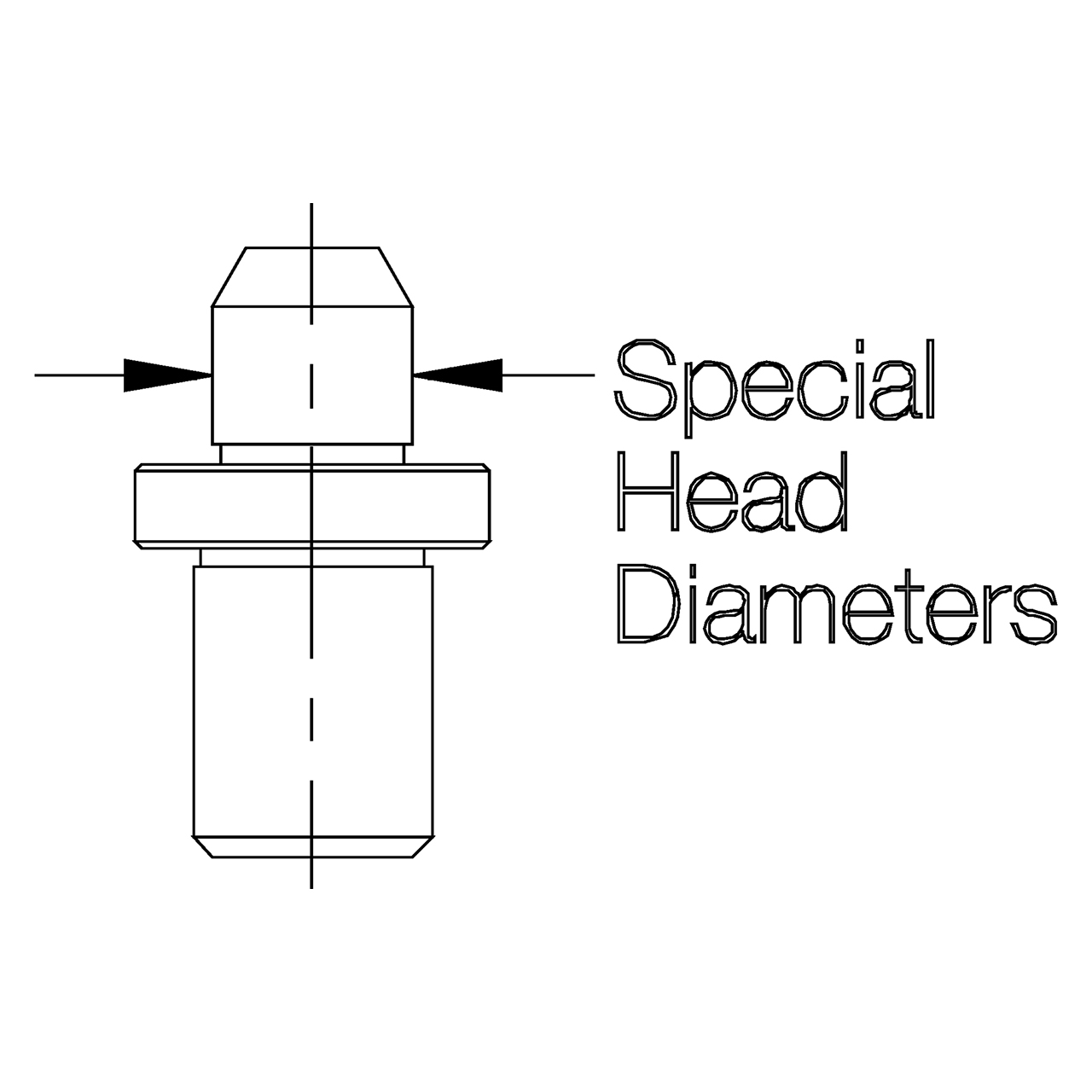

Pins with a special head diameter (A dimension) are quickly made to order in any of the four standard shank diameters.            5     5/16" shank             8     1/2" shank          12     3/4" shank          16     1" shank Head diameters are limited to the following ranges:            5     .1150-.3180             8     .2780-.5040          12     .4640-.7540          16     .7140-1.0040Example:For a Round Locating Pin with a 1/2" shank and A = .4000", specify part number as CL-8-RLT-.4000.

Specials for Configuration

Click Here To launch our configurator Click Here To email us with any questions

Material

Parts Specification
