Product Information

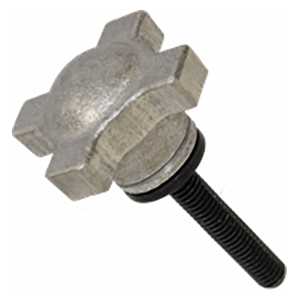

Hand-knob assembly with a captive, freely rotating washer to prevent marring in clamping applications. Four-prong knob design provides a firm grip for applications requiring quick tightening and high torque. Plain-end screw with no dog point. Choice of three knob sizes. Available in thread sizes from 1/4-20 to 3/4-10, most in a choice of several thread lengths. Made in USA.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Knob | 319 Aluminium Alloy | - | - | ✔ | ✔ |
| Screw | 1215 Steel | - | Black Oxide Finish | ✔ | ✔ |
| Washer | Mild Steel | - | Black Oxide Finish or Black Nylon | ✔ | ✔ |
Parts Specification

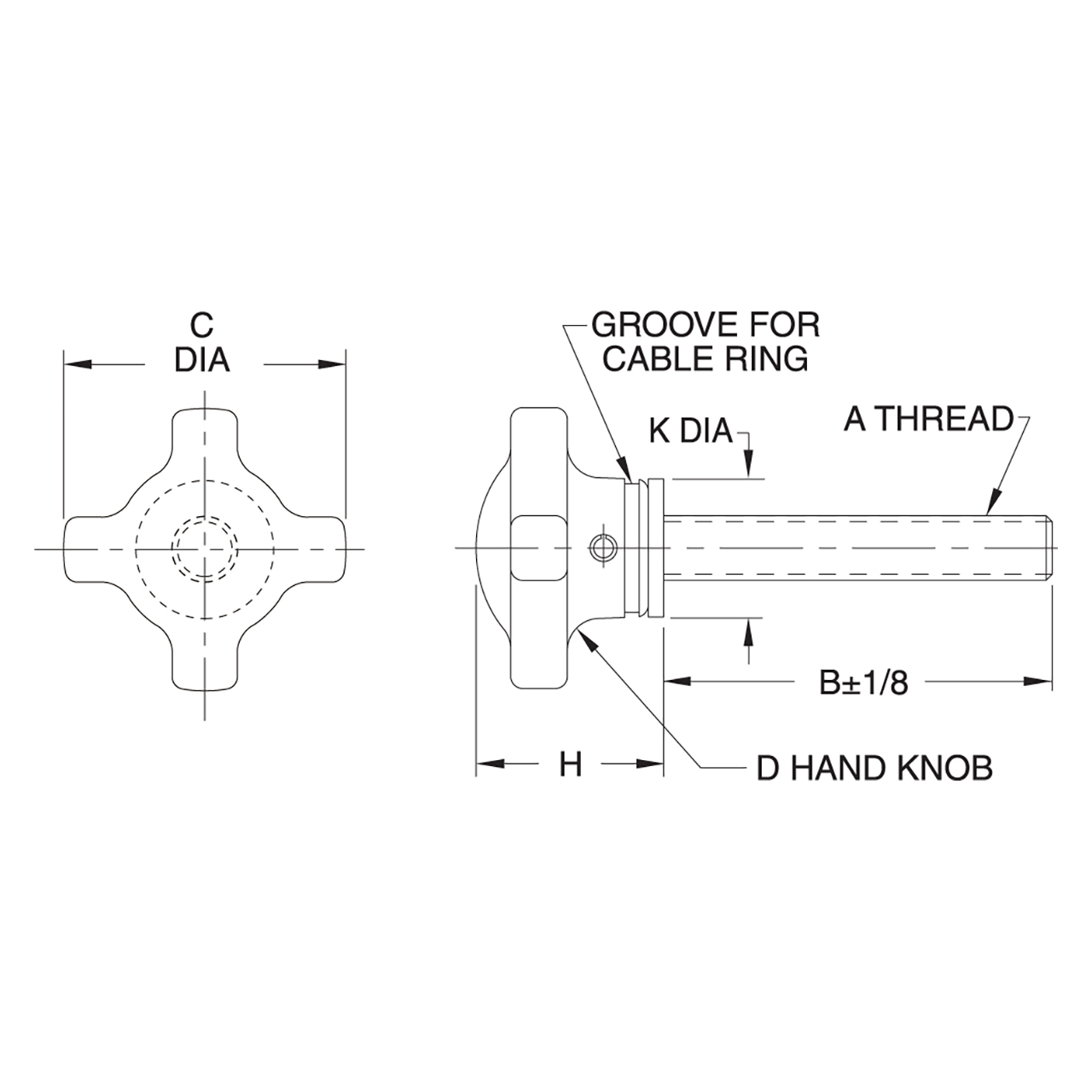

| Part Number | A THREAD | B | C DIA | D | H | K DIA | CABLE RING REQUIRED IF ATTACHING CABLE |
| CL-8-SHK4T | 1/2-13 | 3 | 2-1/8 | CL-45-HK-4A | 1.53 | 1 | CL-14-KR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
1/2-13"
Diameter (Inch):
2-1/8"
Diameter (Decimal Inch):
2.1300"
Diameter (mm):
53.98mm
