Product Information

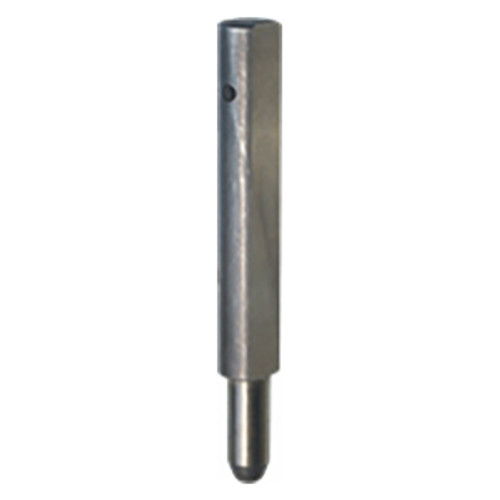

Handy locating tool for holding knurled Slotted Locator Bushings in place during embodiment. This stepped locating pin has a slip-fit-tolerance shank to fit a locating liner bushing in a template plate, and a head diameter with flats to fit a Slotted Locator Bushing perfectly. Available for slotted-bushing sizes 3/16 to 1/2". Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| O-2 Drill Rod | - | N/A | ✔ | ✔ |

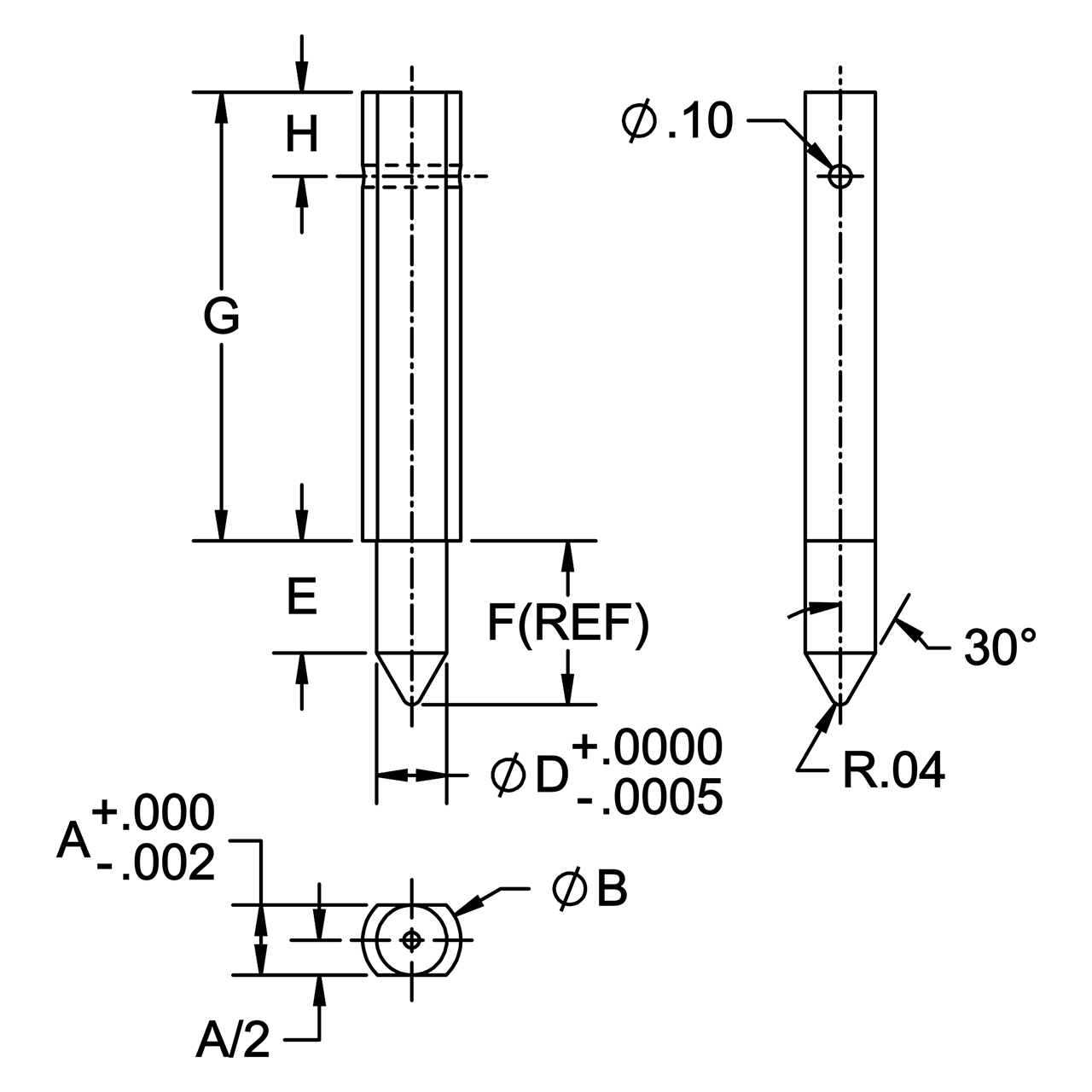

Parts Specification
| Part Number | PIN DIA | A | B DIA | D DIA | E | F | G | H |
| CL-8-SLLT | 1/2 | .499 | .605 | .5000 | .50 | .89 | 2.00 | .37 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
