Product Information

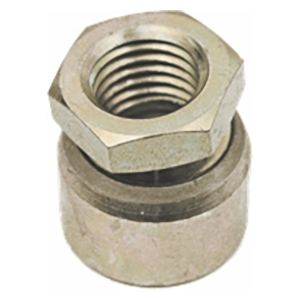

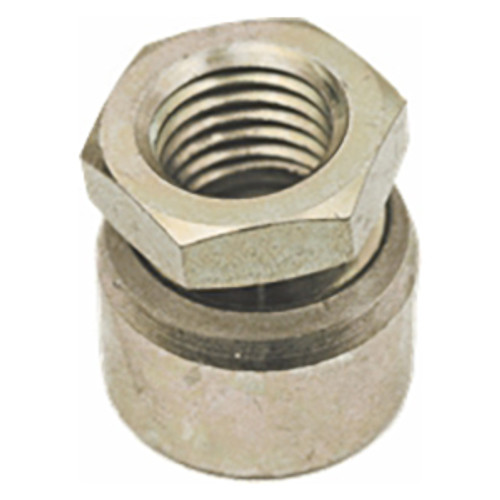

Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 20 Degree total swivel angle. Made entirely of stainless steel for extra corrosion resistance. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.

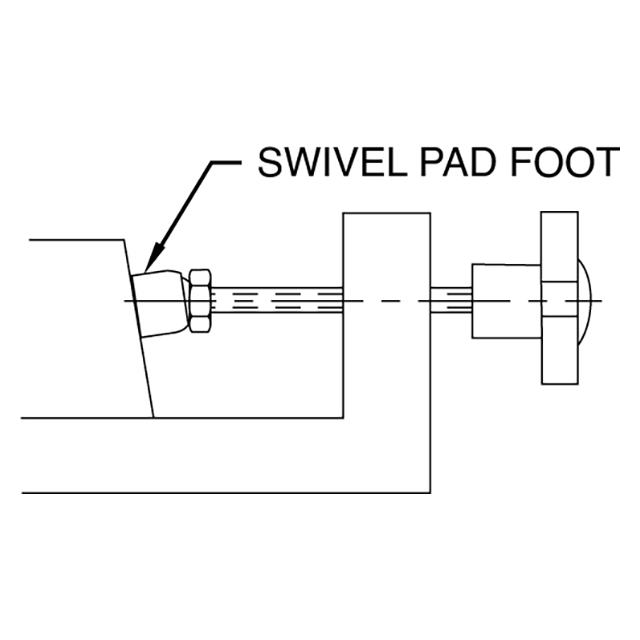

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | ✔ | ✔ |

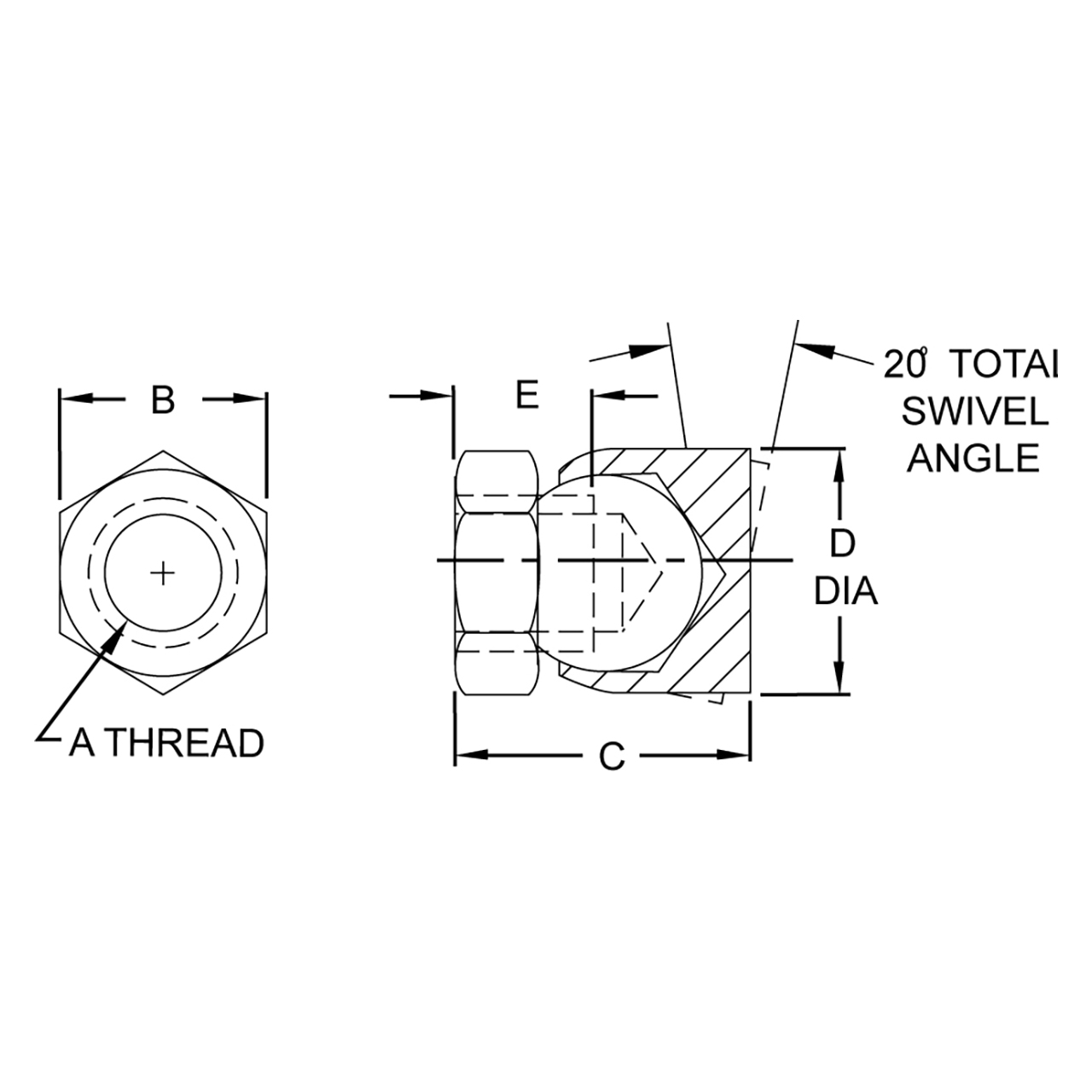

Parts Specification
| Part Number | A THREAD | B | C | D DIA | E |
| CL-8-SPF-S | 1/2-13 | 3/4 | 15/16 | 7/8 | 7/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
1/2-13"
Diameter (Inch):
7/8"
Diameter (Decimal Inch):
0.8800"
Diameter (mm):
22.23mm
