Carr Lane CL-8-SRBP-1 | 0.394" Diameter Self-Retaining Ball Plunger

Product Information

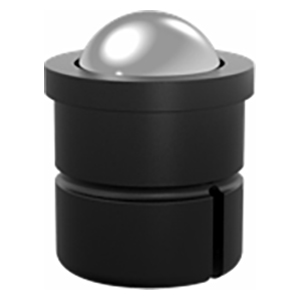

Due to their self-retaining design, these press-fit ball plungers can be securely installed in an ordinary drilled hole. The slotted end of the thermoplastic body expands to compensate for hole tolerances up to .008" oversize. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder. Available in four sizes, from 3/16 to 1" diameter.

Application Information

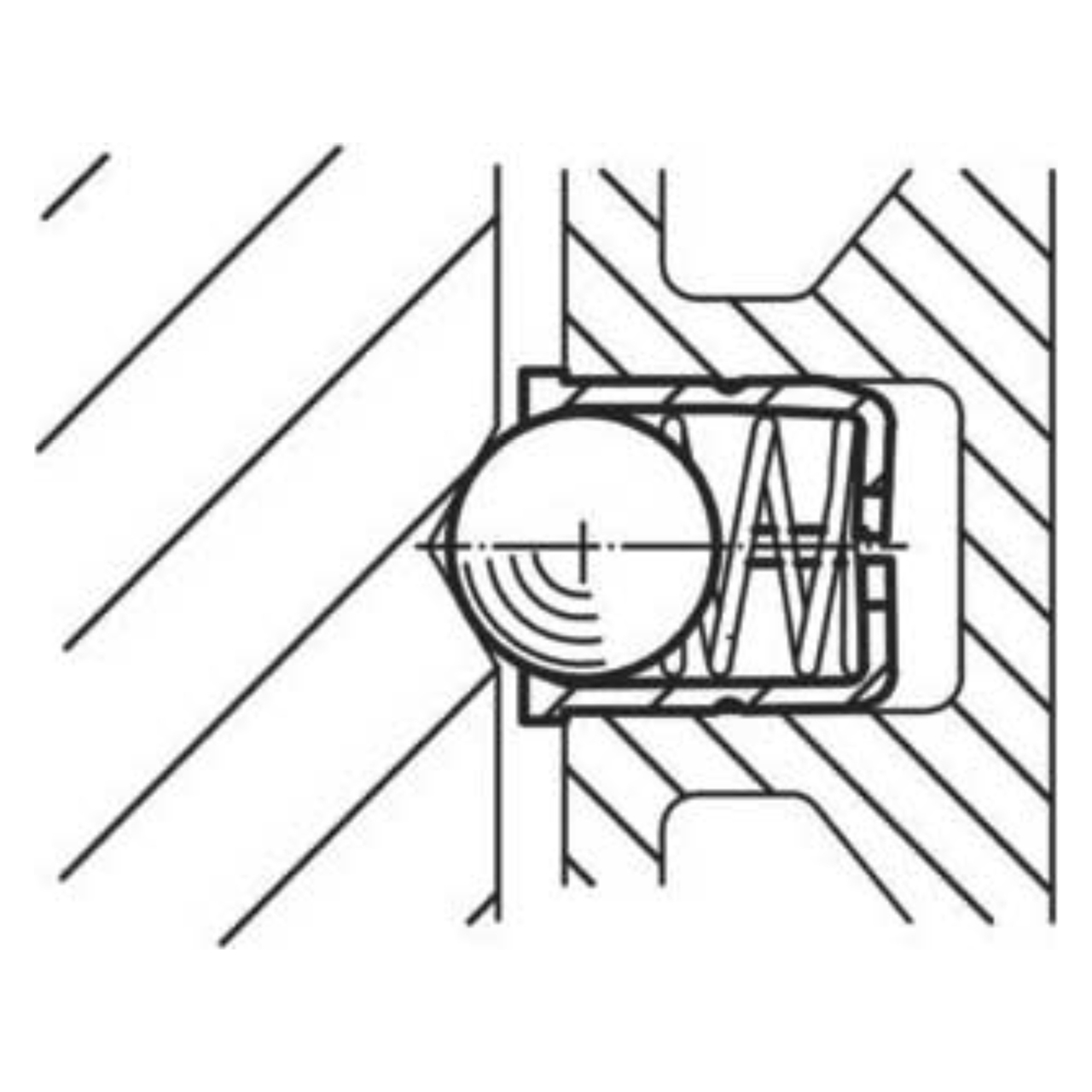

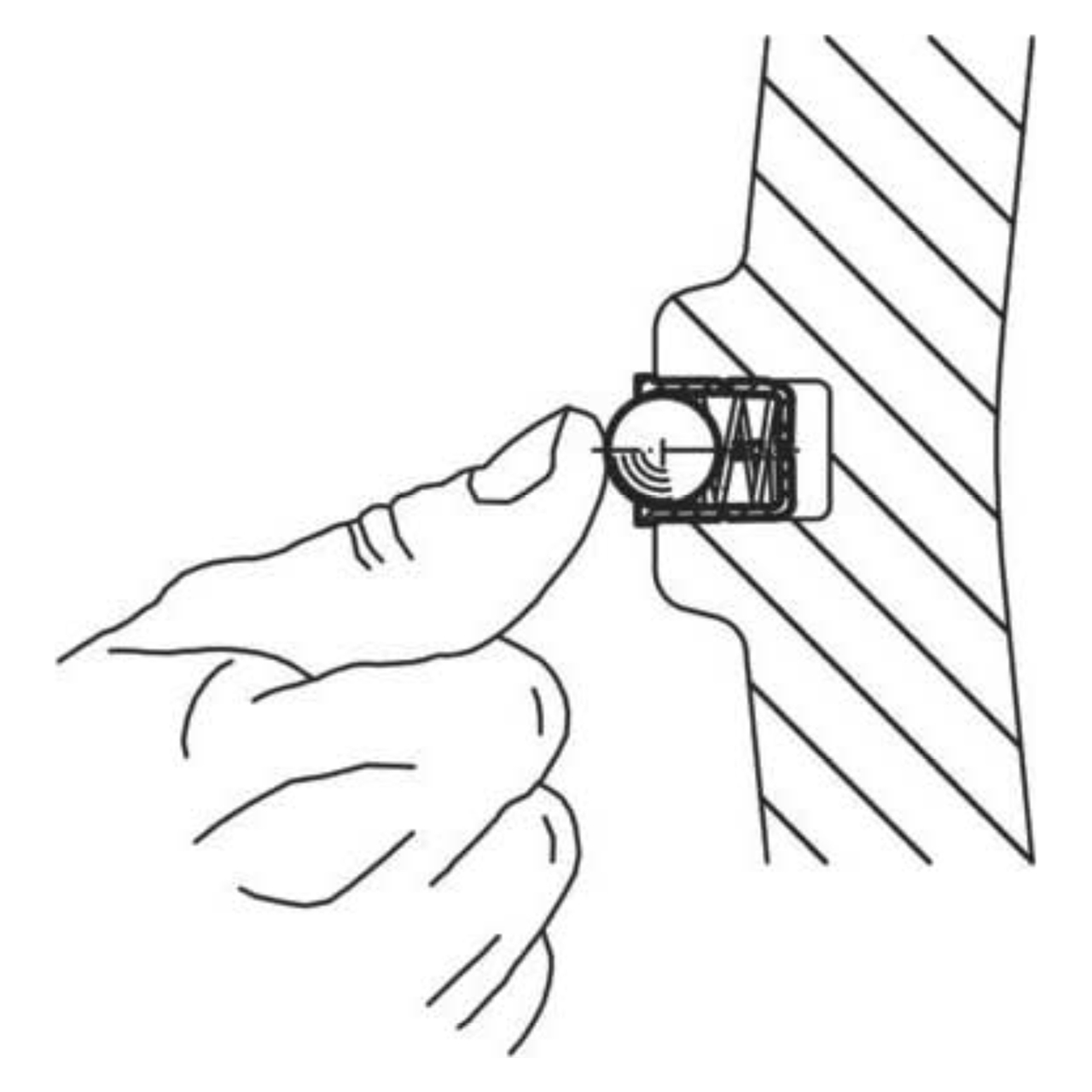

Self-Retaining Ball Plungers can often be installed by hand, due to the body's flexible design. Self-Retaining Ball Plungers can be installed in a plain hole, with the shoulder exposed, or slightly counterbored for flush installation.

Videos

Self-Retaining Ball Plungers Watch a 3D CAD image of Self-Retaining Ball Plungers from Carr Lane Mfg. Co. Due to their self-retaining design, the press-fit ball plungers can be securely installed by hand in an ordinary drilled hole. The slotted end of the thermoplastic body expands to compensate for hole tolerances up to .008" oversize. A sturdy shoulder provides a fixed seating position and positively resists detent force. The installation hole can be counterbored to recess the shoulder.

Material

Parts Specification
