Hand Wheels
High-quality, modern-design aluminum Hand Wheel with two spokes. Rim is machined and highly polished on all sides. Spokes are shot blasted to a satin Finish.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Aluminum | Yes | Gravity Die Cast | Yes | Yes |

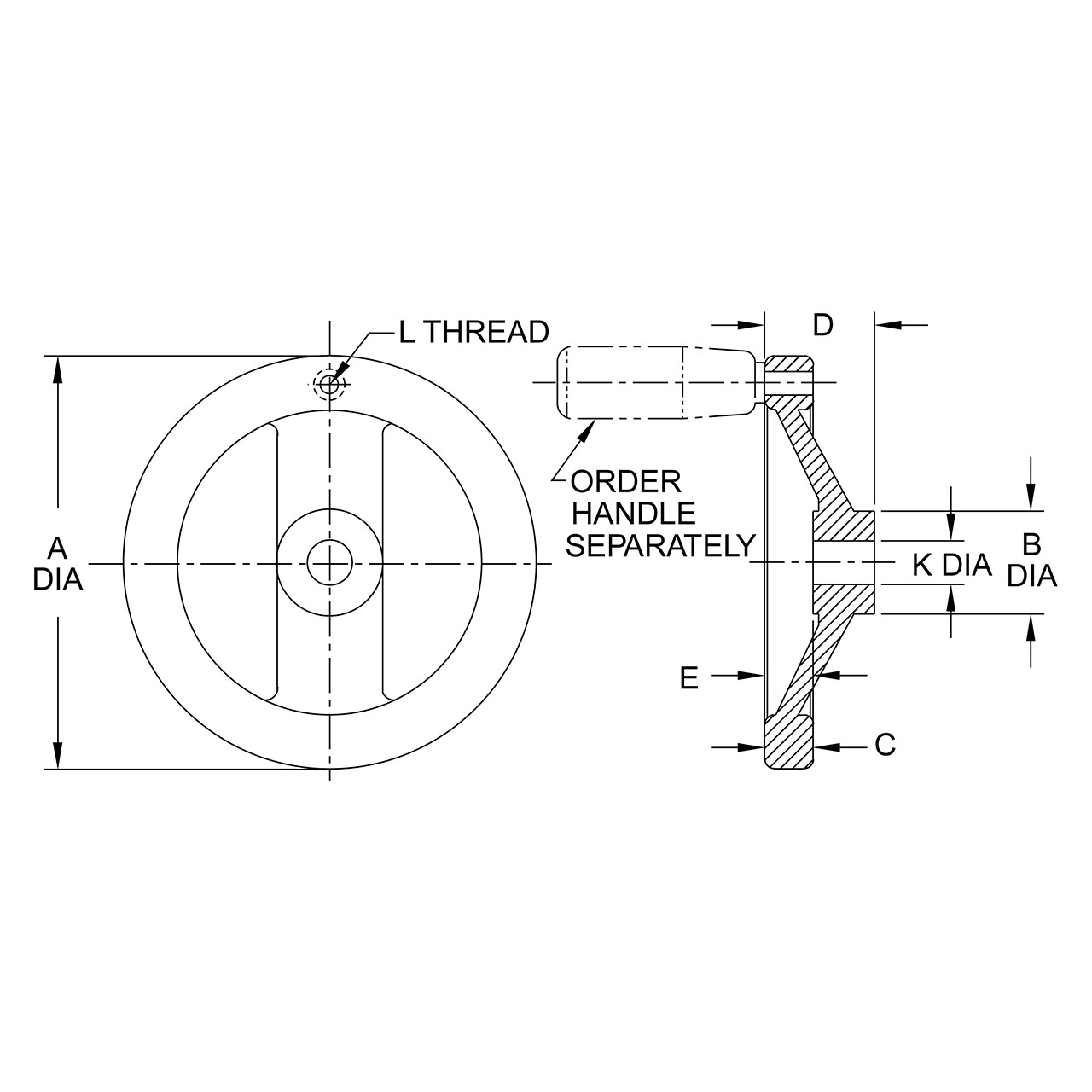

Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) | K Diameter (Inch) | L Thread (Inch) | Matching Handle Size |
| 7.87" | 1.65" | 0.81" | 1.77" | 0.83" | 0.625" | 3/8-16" | Size 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
7.8700"
Ships:
From Manufacturer
