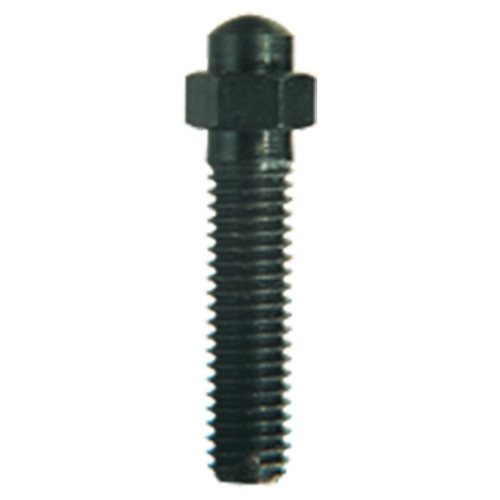

Adjustable Locating Buttons
Support screw with fine threads for precise adjustment. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | G (Inch) |
| 1/4-20" | 1-1/2" | 3/16" | 3/16" | 1/4" | 3/16" | 3/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
