Locating Keys
These heavy-duty removable-type keys are our standard fixture keys for large fixture plates. Locating flats are accurate to within .0005" true position of the body diameter. Made in USA.

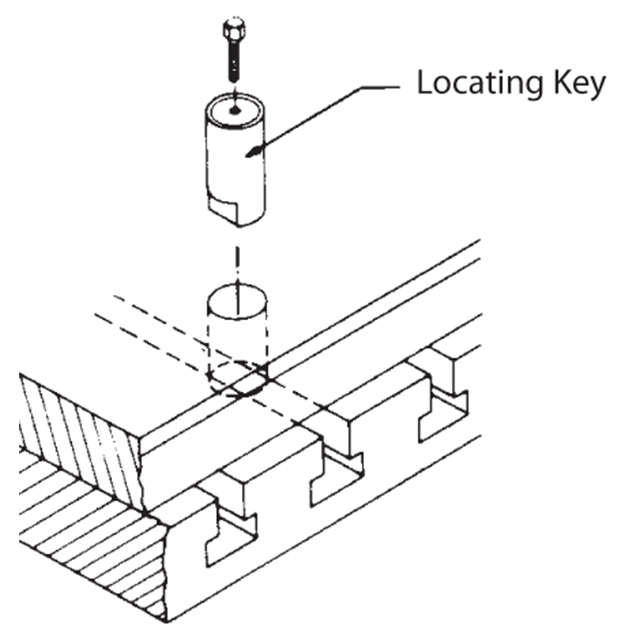

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 or 1045 Steel | Heat Treated Rc 39-45 | Black Oxide | Yes | Yes |

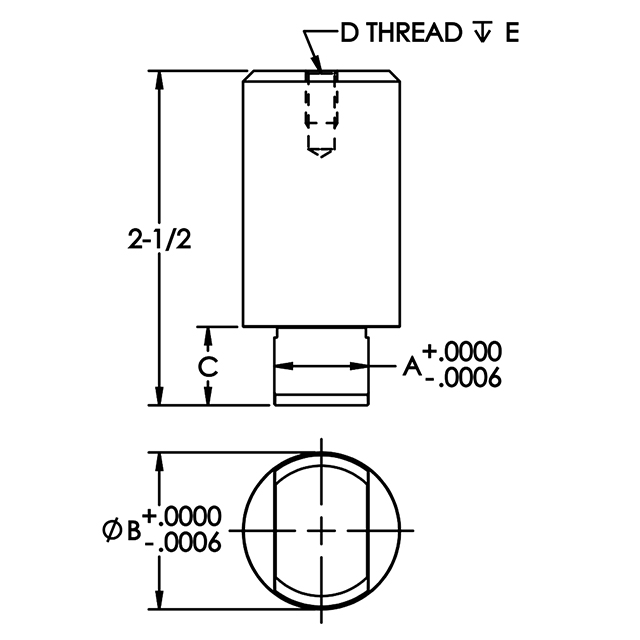

Parts Specification
| Table Slot Size | C (Inch) | B Diameter | Yes | D Thread (Inch) | D (Inch) |
| 14mm | 0.5512" | 1.1875 | 5/8" | 1/4-20 | 3/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
1/4-20"
