Hand Knobs

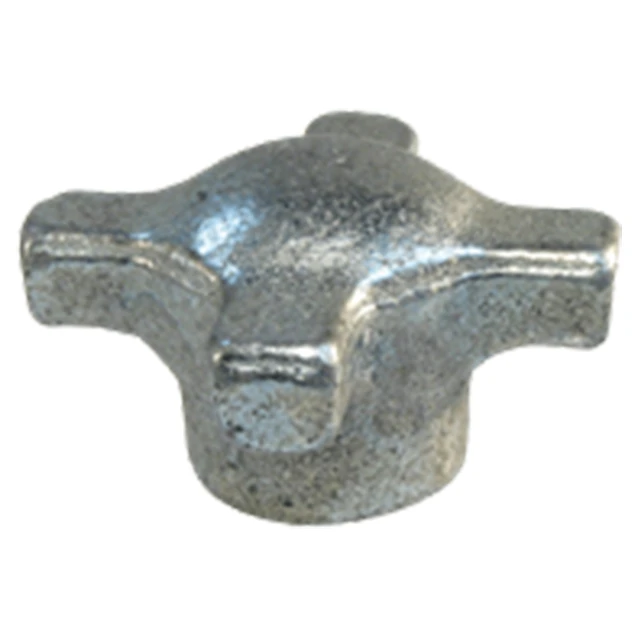

Classic, easy-to-grip cast iron clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Hand Knobs (Cast Iron) | Zinc Plated Clear Chromate | - | - | Yes | Yes |

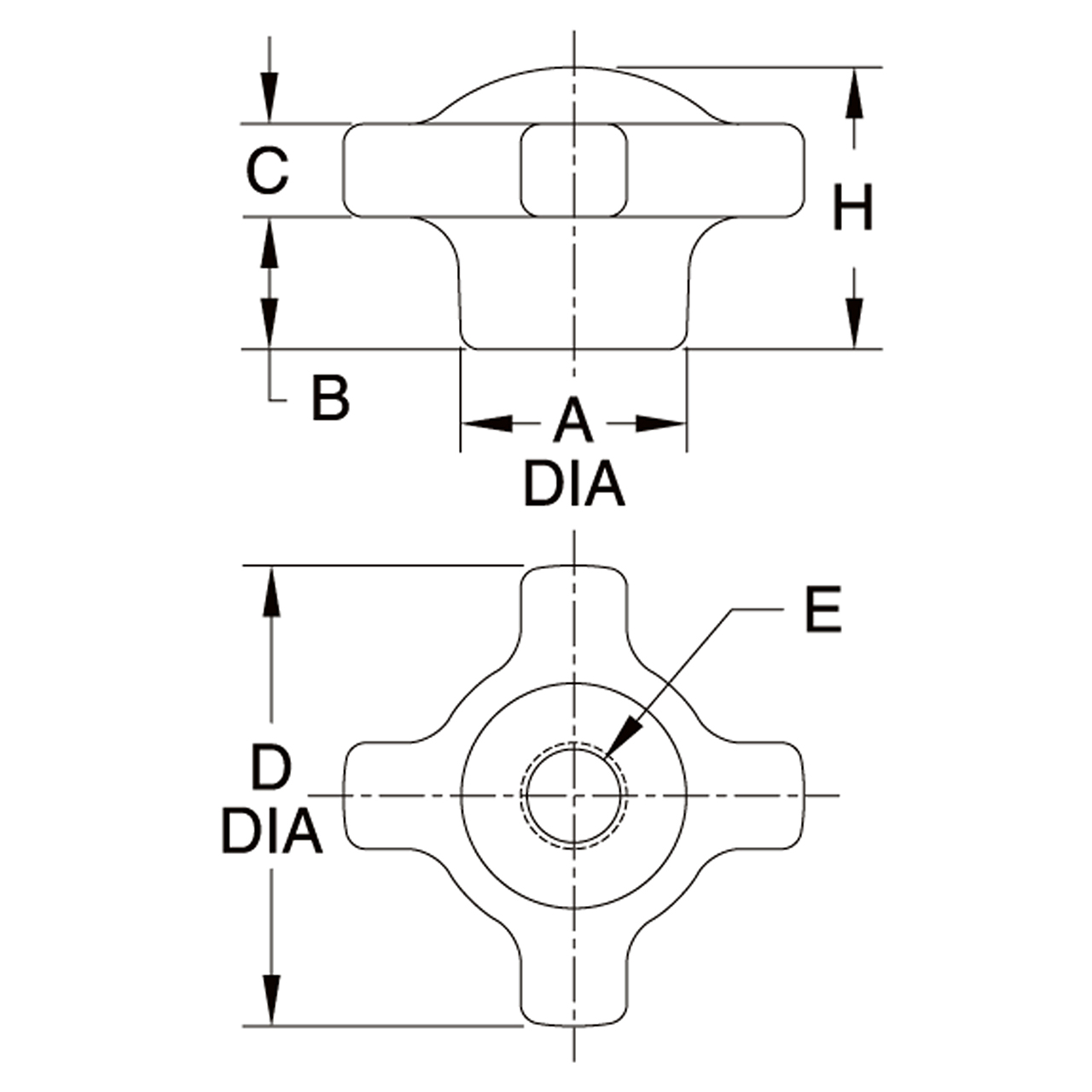

Parts Specification
| D Diameter (mm) | A Diameter (mm) | B (mm) | C (mm) | H (mm) | E Thread | Thread Pitch (mm) |
| 64mm | 29mm | 25mm | 13mm | 42mm | M16 | 2mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
