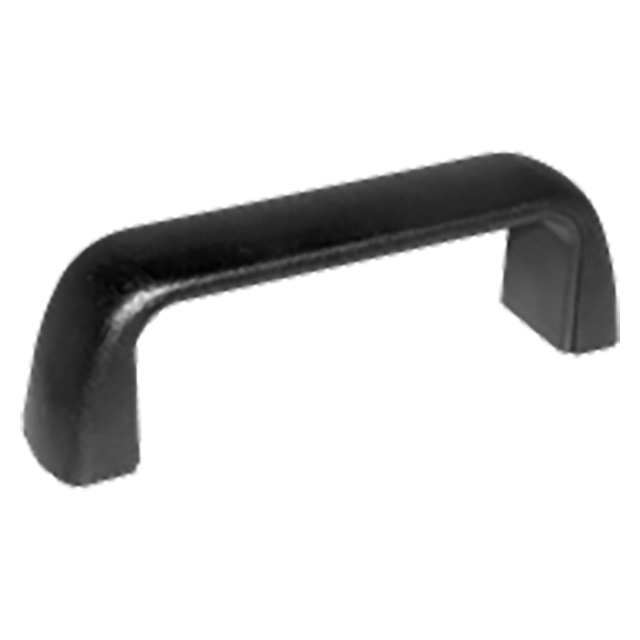

Standard Ring
Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. High-strength thermoplastic provides excellent durability. Textured non-slip, non-glare finish. Choice of two handle sizes. Molded-in brass insert provides superior thread strength.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification

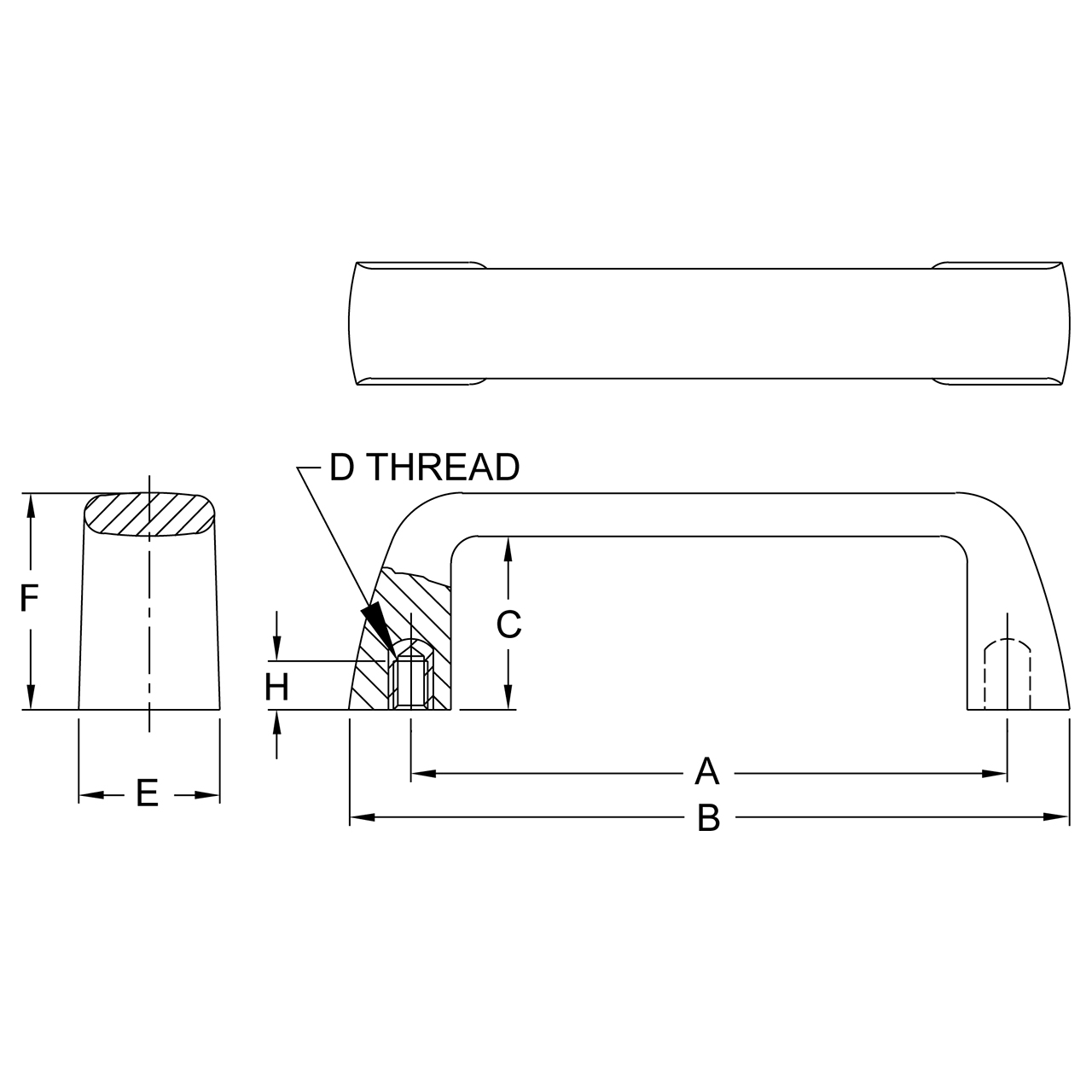

| A (mm) | B (mm) | C (mm) | D Thread | Thread Pitch (mm) | E (mm) | F (mm) | H (mm) |
| 117 mm | 133 mm | 32 mm | M8 | 1.25 mm | 26 mm | 40 mm | 9 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
