Carr Lane CLM-12-DEA-6 | M12 Thread x 1.75Amm Pitch Double-End Clamp Strap

$49.04
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
SKU:
50022615
UPC:
Weight:
2.52 LBS
Shipping:
Calculated at Checkout

Double-End Clamp Straps

Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.

Application Information

Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

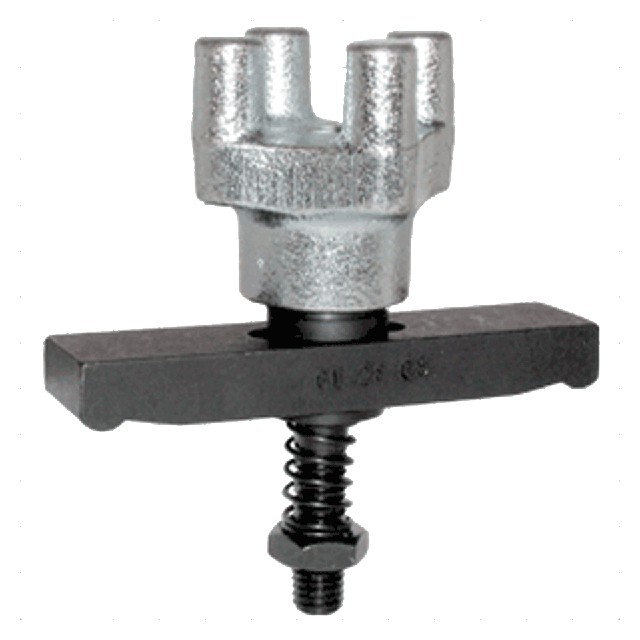

Assembly with Bar Knob & Spherical Washer (-6)

This clamp assembly includes a Double-End Clamp Strap plus the following Items:

Bar Knob

Spherical Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Material

Material Heat Treat Finish RoHS RoHS
1018 Steel Carburized Hardened Black Oxide ✔ ✔

Parts Specification

Thread SizeThread Pitch (mm)A (mm)B (mm)C (mm)Clamp StrapClamp SpringFlat WasherClamping StudJam NutBar KnobSpherical Washer
M121.75mm152.5mm32mm16mmCL-30-CSCL-9-SPGCL-2-FWCLM-12x95-STUDCLM-12-JNCLM-9-BKCL-3-SW
