Jig Rest Buttons
Precision height locator with a counterbored hole for mounting with a socket-head cap screw (not furnished). Jig Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Jig Rest Buttons can be stacked to reach taller heights. Made in USA.

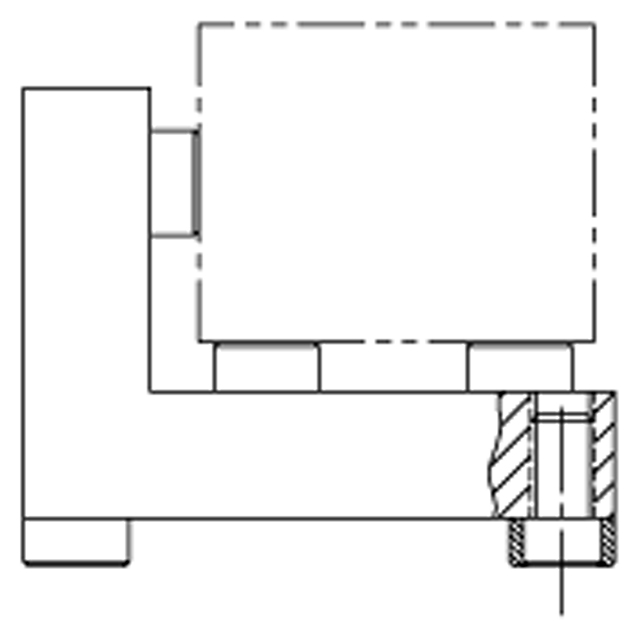

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| 17-4 PH | Preciptation Hardended | Passivated | Yes | Yes |
Parts Specification

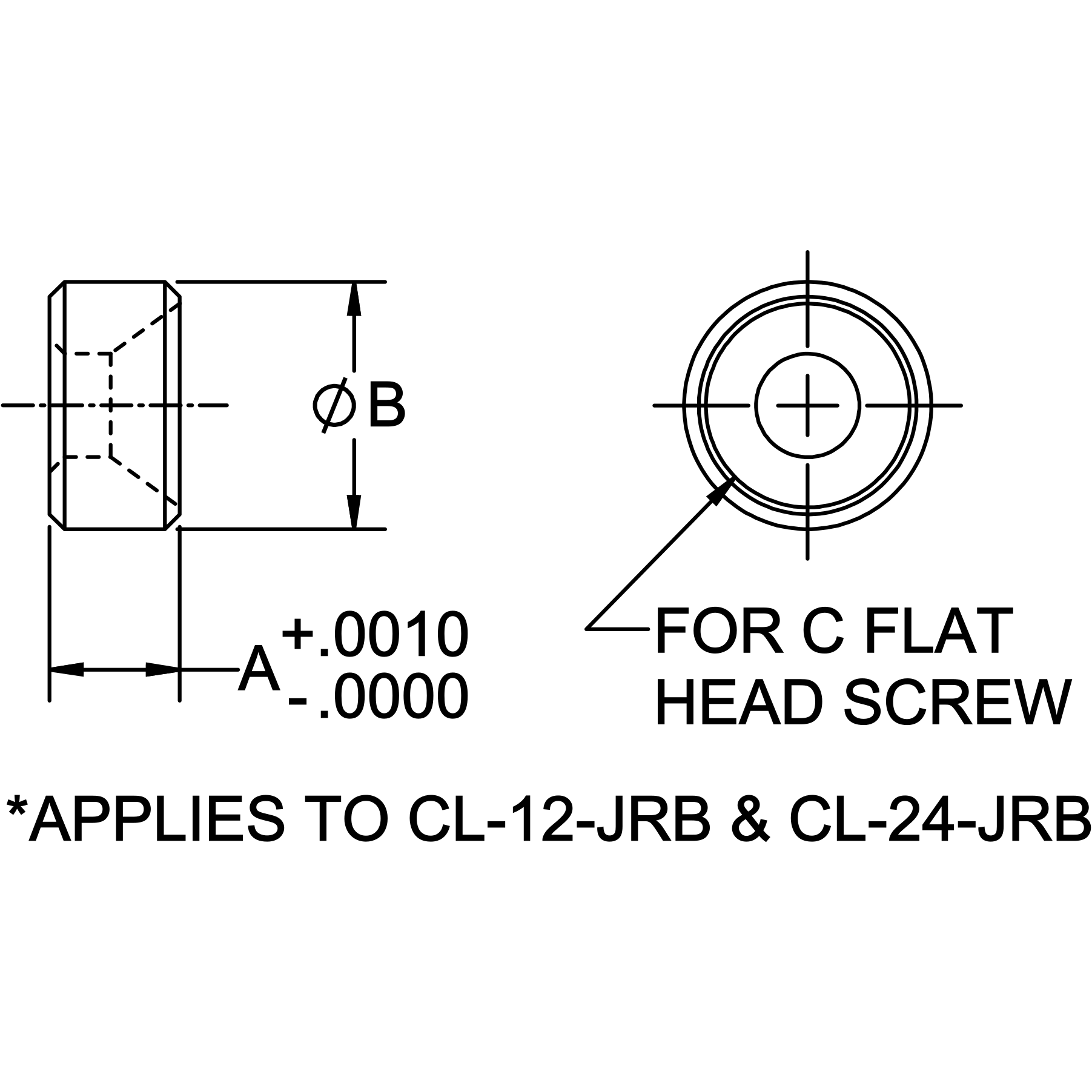

| B Diameter (mm) | A (mm) | C Mounting Screw |
| 25mm | 20mm | M8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
63/64"
Diameter (Decimal Inch):
0.9843"
Diameter (mm):
25.00mm
