Clamp Rests
Rear support for Slotted-Heel Clamp Straps. The shoulder, which supports the Clamp Strap, has a large hex for easy adjustment and tightening. Made in USA.

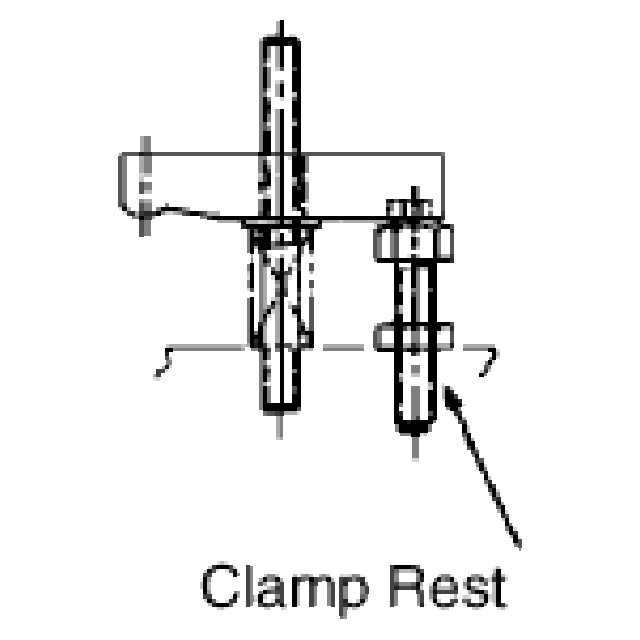

Application Information
Material
| ITEM | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Rest Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | - | Black Oxide | Yes | Yes |

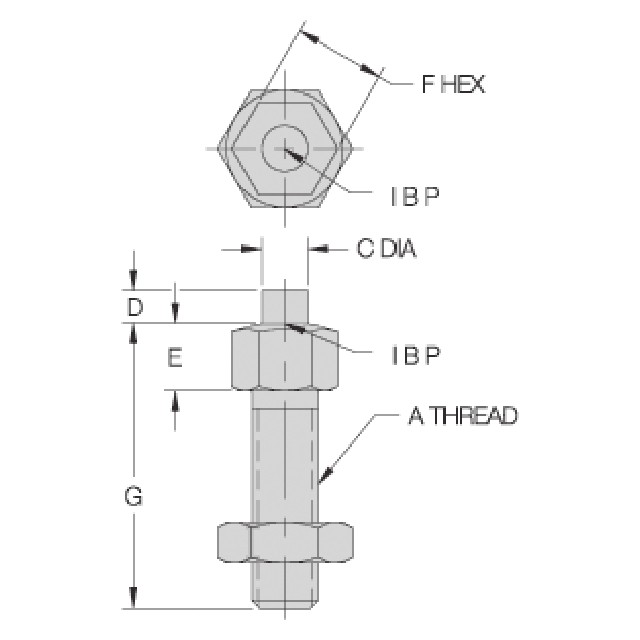

Parts Specification
| A Thread | Thread Pitch (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| M8 | 1.25mm | 5.5mm | 4mm | 8mm | 13mm | 45mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
1-1/4"
Pitch (Decimal Inch):
1.2500"
Pitch (mm):
31.75mm
Thread:
M8
