Product Information
Compact mounting adaptor for long-arm Hook Clamps. Precision bored hole for smooth swing action. Available in three sizes, with mounting screws 5/16-18, 1/2-13, and 5/8-11 (M8, M12, and M16 in metric). For high-rise clamping, a Riser Cylinder can be used to extend the reach of these Hook-Clamp Holders
Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1045 Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification

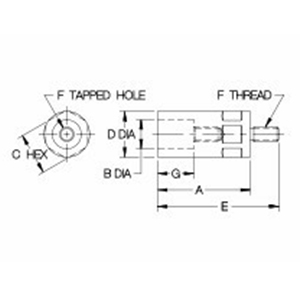

| Part Number | F THREAD SIZE | THREAD PITCH (mm) | A (mm) | B DIA +/-.010 (mm) | C (mm) | D DIA (mm) | E (mm) | G (mm) |
| CLM-2-CACH | M12 | 1.75 | 80 | 25.032 | 36 | 40 | 110 | 40 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
