Product Information

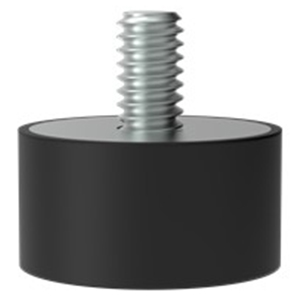

Vibration / Isolation shock-absorbing mount designed to reduce vibration-related damage. The mount absorbs the majority of kinetic energy upon impact. Resulting in reduced shock/rebound damage and reduction in noise. These shock-absorbing mounts are frequently used as end-stop buffers or dampers.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | RoHS |
| Body | Natural Rubber (NR) | - | Black | ✔ |
| Cover Plate | Steel | - | Zinc Plated | ✔ |
| Threaded Stud | Steel | - | Zinc Plated | ✔ |
Parts Specification

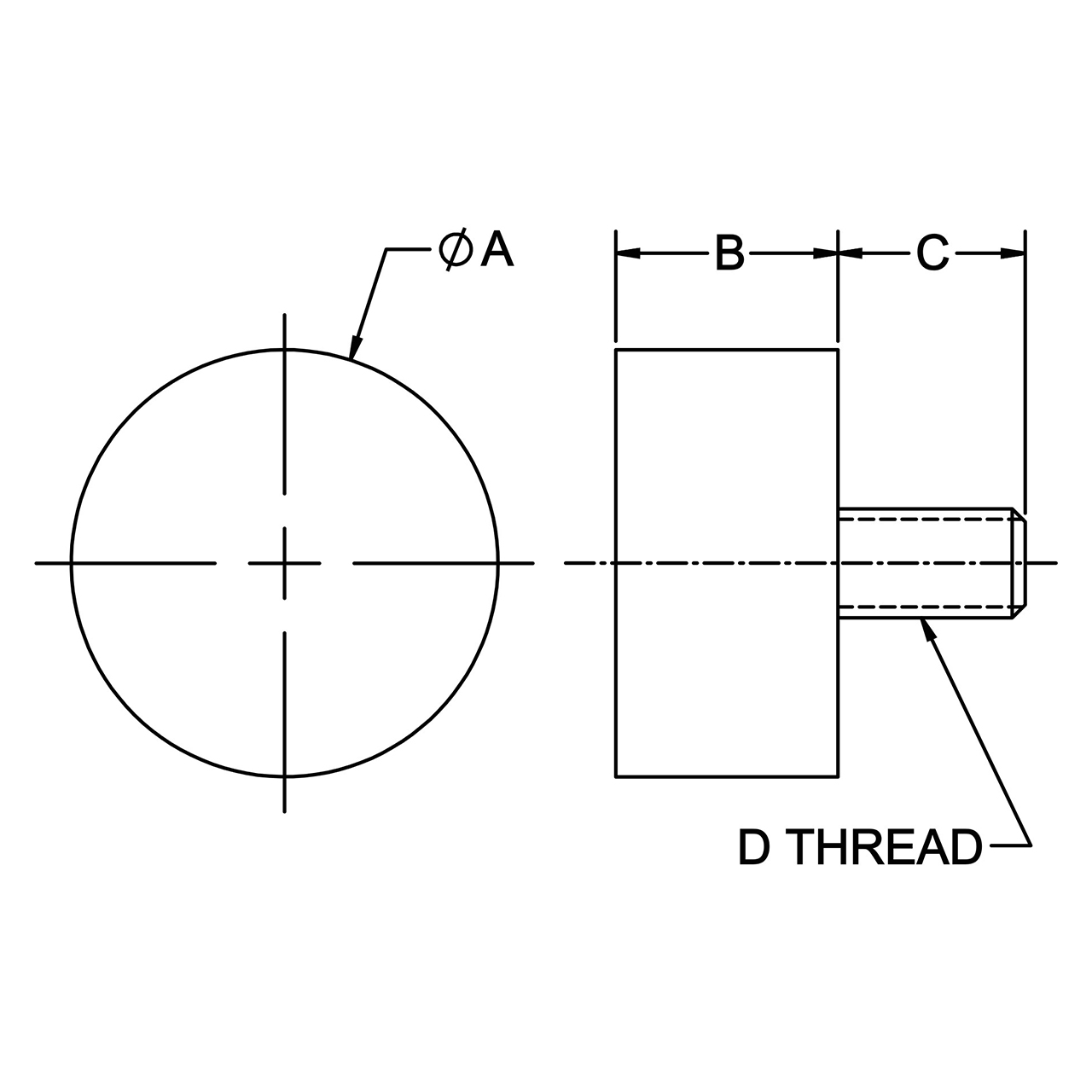

| Part Number | A DIA (mm) | B (mm) | C (mm) | D THREAD (mm) | THREAD PITCH | SPRING RATE (Lbf/in) | MAX LOAD (Lbf/in) | MAX DEFLECTION (mm) |
| CLM-25-20-M6-VIM-PACKOF2 | 25 | 20 | 18 | M6 | 1 | 657 | 130 | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M6
Diameter (Inch):
63/64"
Diameter (Decimal Inch):
0.9800"
Diameter (mm):
25.00mm
