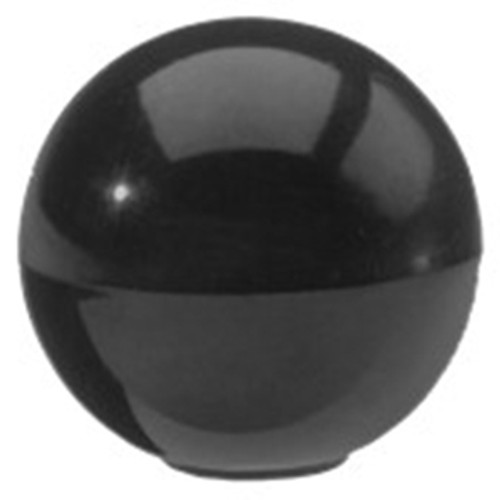

Carr Lane CLM-542-PB-PACKOF2 | 30.00mm Diameter Ball Knob (Phenolic)

$8.09
Brand:
Carr Lane
Diameter (Inch):
1-3/16"
Diameter (Decimal Inch):
1.1800"
Diameter (mm):
30.00mm
SKU:
50035580
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CLM-542-PB-PACKOF2 | 30.00mm Diameter Ball Knob (Phenolic)

Product Information

Durable multi-purpose plastic knob, suitable for many applications. The phenolic version shown here is our most popular, with a hard smooth shiny finish. Choice of seven knob sizes, with tapped-hole sizes from #8-32 to 5/8-18 (M5 to M16 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

Application Information

Available Sizes

3/8-163/8-241/2-135/8-18M10M12M16 3/8-161/2-13M10M12 1/4-205/16-183/8-163/8-241/2-131/2-20M10M12 1/4-205/16-183/8-163/8-24M8M10 #10-321/4-201/4-285/16-185/16-243/8-16M6M8 #8-32#10-321/4-20M5M6

Material

MATERIALHEAT TREATFINISHDFARSRoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in brass insert✔✔

Parts Specification

Part NumberA DIA (mm)B THREADTHREAD PITCH (mm)C DIA (mm)D (mm)E (mm)
CLM-542-PB-PACKOF230M81.25141929

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Diameter (Inch):
1-3/16"
Diameter (Decimal Inch):
1.1800"
Diameter (mm):
30.00mm
