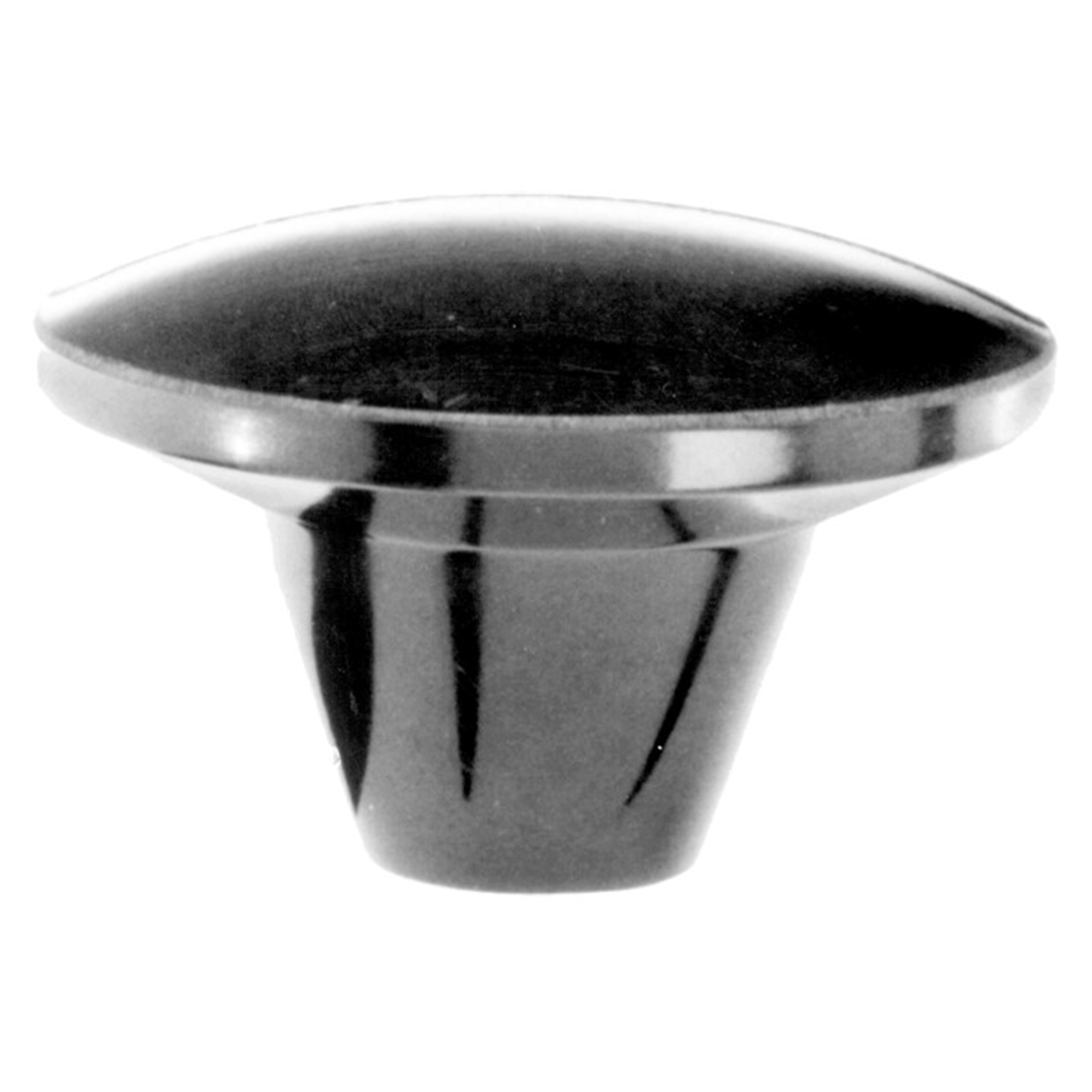

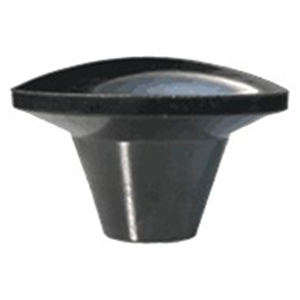

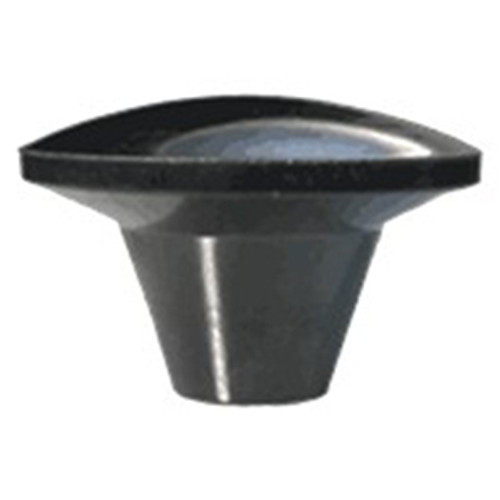

Carr Lane CLM-642-PK-PACKOF2 | M8 Thread x 1.25mm Pitch Pull Knob – Flat Top (Phenolic)

$6.72
Brand:
Carr Lane
Thread Size:
M8
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0500"
Pitch (mm):
1.25mm
SKU:
50035888
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CLM-642-PK-PACKOF2 | M8 Thread x 1.25mm Pitch Pull Knob – Flat Top (Phenolic)

Product Information

Versatile knobs with an enlarged head for pulling, pushing, or lifting. Choice of two knob sizes, available with tapped-hole sizes from #10-32 to 3/8-16 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

Available Sizes

#10-321/4-20M5M6 1/4-205/16-183/8-16M8

Material

MATERIALHEAT TREATFINISHDFARSRoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in Brass Insert✔✔

Parts Specification

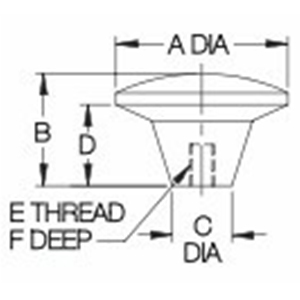

Part NumberA DIA (mm)B (mm)C DIA (mm)D (mm)E THREADTHREAD PITCH (mm)F (mm)
CLM-642-PK-PACKOF246301622M81.2510

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Thread Size:
M8
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0500"
Pitch (mm):
1.25mm
