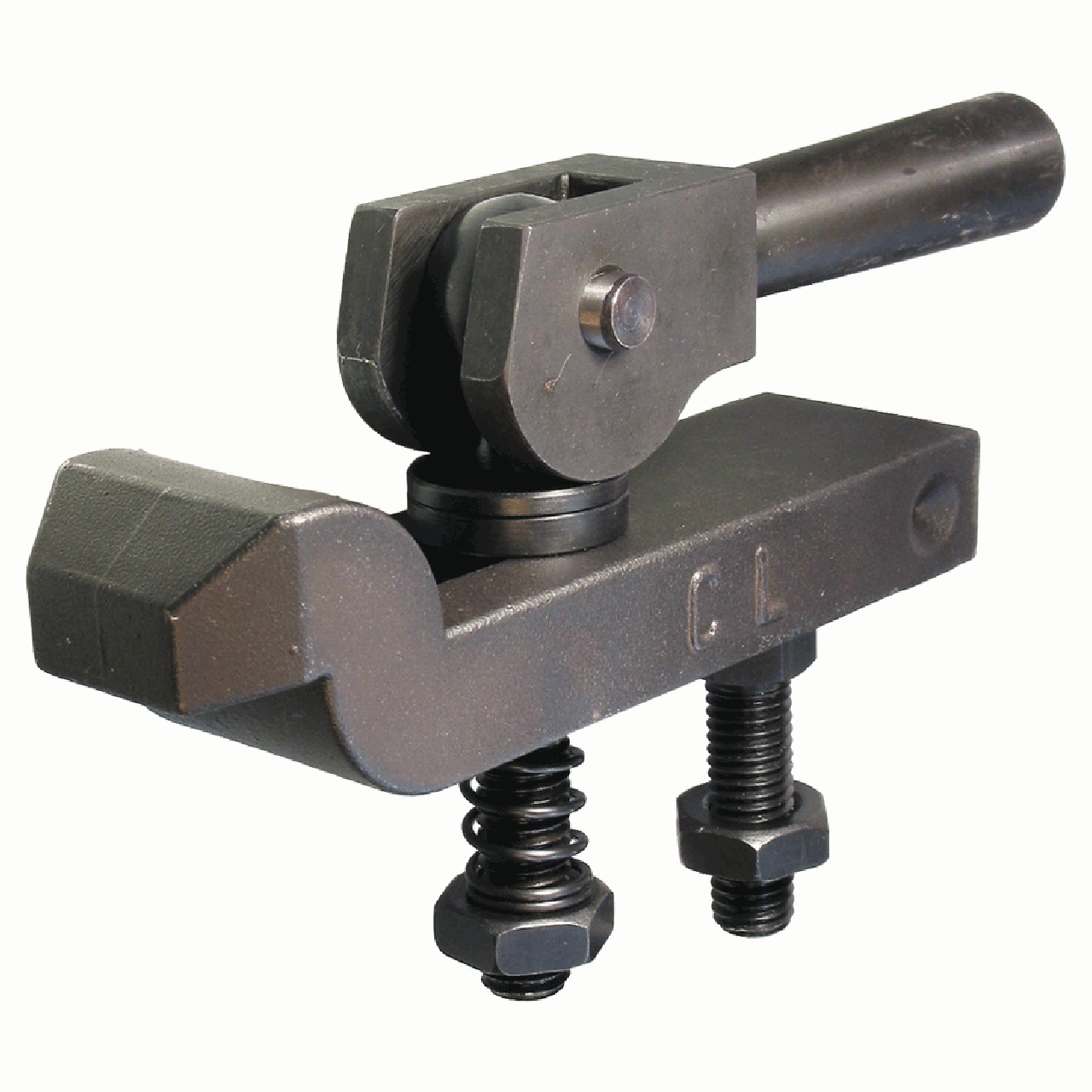

Carr Lane CLM-85-GCSA-7 | M12 Thread x 1.75mm Pitch Slotted-Heel Gooseneck Clamp Strap

$114.45
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
SKU:
50016806
UPC:
Weight:
3.34 LBS
Shipping:
Free Shipping

Slotted-Heel Gooseneck Clamp Straps

Gooseneck version of Slotted-Heel Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

Assembly with Cam Handle & Spherical Washer (-7)

This clamp assembly includes a Slotted-Heel Gooseneck Clamp Strap plus the following Items:

  • Cam Handle
  • Spherical Washer
  • Eye Bolt
  • Clevis Pin
  • Clamp Spring
  • Flat Washer
  • Jam Nut
  • Clamp Rest

Material

MaterialHeat TreatFinishDFARSRoHS
Alloy Steel-Black OxideYesYes

Parts Specification

A ThreadThread Pitch (mm)B (mm)C (mm)D (mm)S (mm)
M121.75mm20mm40mm150mm70mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
