Product Information

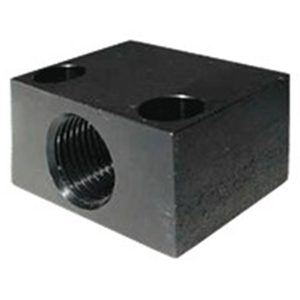

7250 psi Max mounting Blocks provide a way to use Threaded-Body Cylinders with standard fittings, to allow mounting on flat surfaces. Available in six sizes to fit the following Threaded-Body Push Clamp sizes (inch only).
Mounting
Install clamp in Mounting Block with the furnished Sealing Washer at the bottom of the hole. Tighten to the recommended seating torque. Fasten block to fixture with two Socket-Head Cap Screws.
Material
| MATERIAL | HEAT TREAT | FINISH |
| Steel | - | Black Oxide |
Parts Specification
| Part Number | A | B | C | D | E | F | G DIA | H | J |
| CLR-100-TBA | 7/8-14 | 1-3/4 | 2-1/4 | 1-1/4 | 1-1/2 | 3/8 | 5/16-18 | 9/16 | 1-7/32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
5/16-18"
