Carr Lane CLR-1548-105B | M30 x 40 Thread x 12.00mm Stroke x 160.00mm Width x 120.00mm Depth x 131.00mm Height Block Cylinders – Double Acting

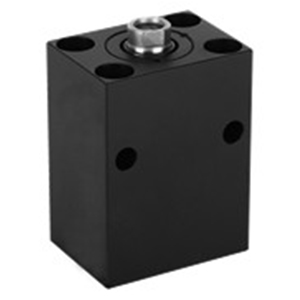

Product Information

7250 psi max Double Acting Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available. These double-acting cylinders can also be used for pulling, by reversing the A and B ports. The manifold-mounted version shown here is available in four mounting styles, with different locations for O-ring ports and mounting holes:          Style B     Ports on bottom end           Style S     Ports on plunger end          Style K     Ports on broad side (short stroke)          Style L      Ports on broad side (long stroke)Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi:             2250 Lbs              5500 Lbs            9000 Lbs          14100 Lbs          22100 Lbs          35100 Lbs          56600 Lbs          88100 Lbs

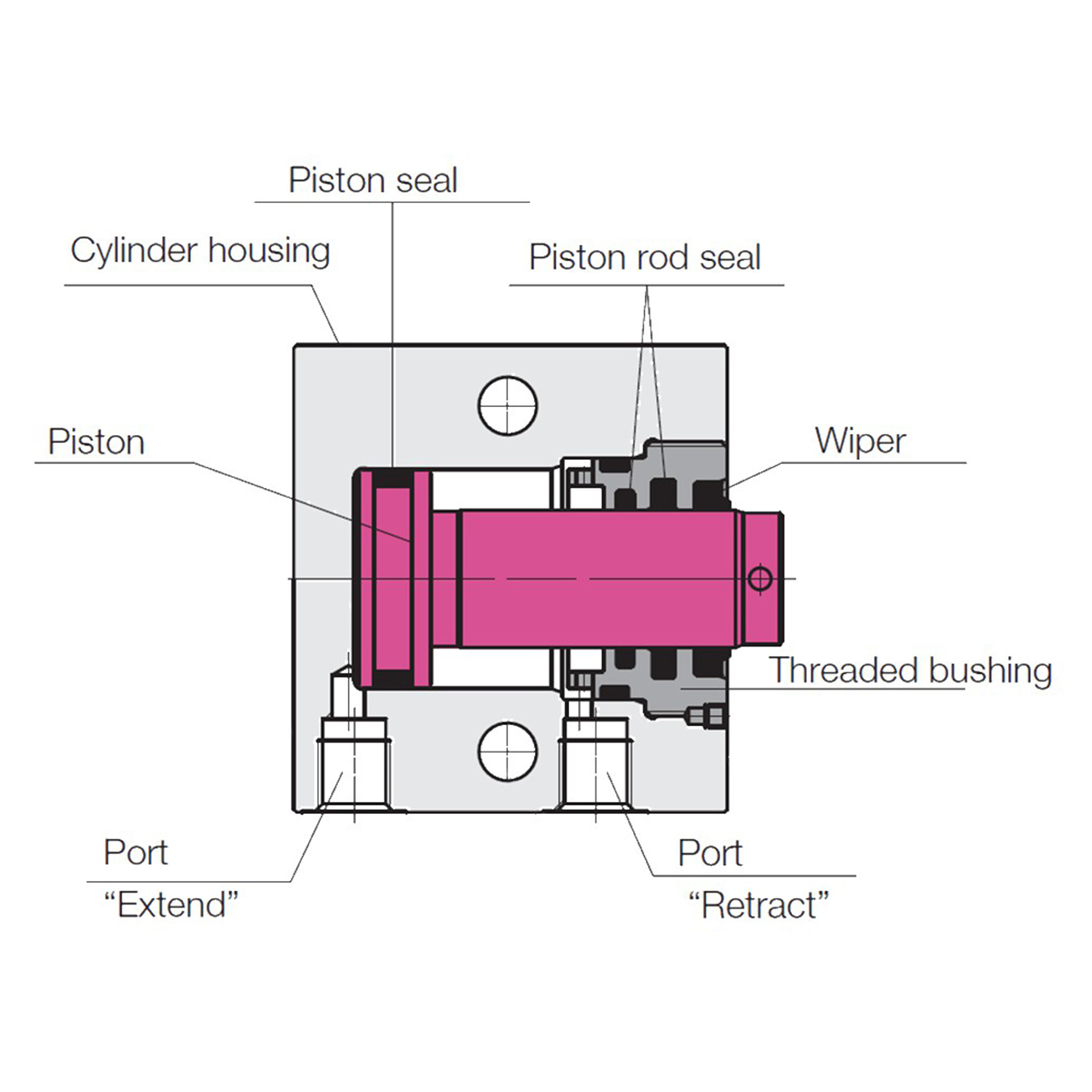

Clamping Action

Applying fluid pressure to the A port advances the plunger. Applying fluid pressure to the B port retracts the plunger (double acting).

Mounting & Fluid Supply

Mounting Style B:Insert four socket-head cap screws from the plunger end, through the four counterbored holes parallel to the plunger. Mounting Style S:Insert four socket-head cap screws from the bottom end, through the four counterbored holes parallel to the plunger. Mounting Style K:Insert two socket-head cap screws through the two broad-side holes perpendicular to the plunger. Block Cylinder must be backed up for pressures over 2300 psi by a rectangular strip or dowel pins with a height at least 1/3 of the B dimension. Mounting Style L:Insert four socket-head cap screws through the four broad-side holes perpendicular to the plunger. Block Cylinder must be backed up for pressures over 2300 psi by a rectangular strip or dowel pins with a height at least 1/3 of the B dimension. Fluid Supply: Fluid is supplied to the O-ring ports through drilled passages in the fixture. Do not use NPT fittings.

Optional Viton Seals

For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life. Please contact factory for more information.

Material

Parts Specification
