Carr Lane CLR-1881-102 | 830 lbs Clamping Force 2 Series Size Swing Clamp

Product Information

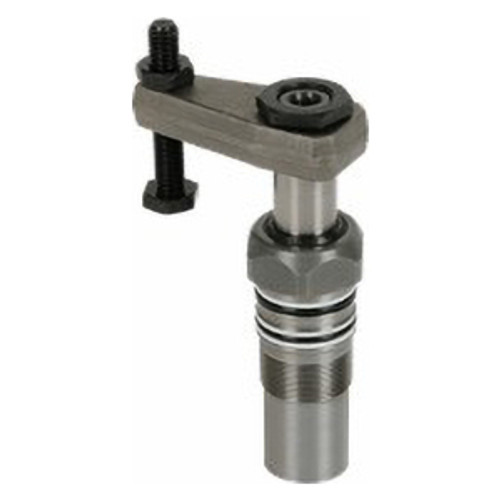

7250 psi max Single Acting Swing Clamps utilize a sturdy helical-cam mechanism to swing the clamping arm clear for unrestricted loading. The threaded-cartridge Swing Clamps shown here provide considerable clamping force in a small size, because they can operate at a full 7250 psi with any standard clamping arm. These Swing Clamps incorporate our unique safety-clutch mechanism. If the clamping arm strikes an unexpected object during its swing, the clutch disengages to avoid damaging the object or the clamp's helical-cam mechanism. Clamping arm can be mounted to start its 90 Degree swing from any position within 360 Degree. Threaded-cartridge Swing Clamps are designed specifically for space-saving manifold mounting. Available in one clamp size, single acting (shown here) and double acting (see Related Products below), with a choice of clockwise, counterclockwise, or zero Degree swing. Available with 45 Degree and 60 Degree swing angles by special order. The single-acting version has a slightly longer body due to the return-spring mechanism. Clamping force at 7250 psi for single-acting clamps with a standard clamping arm:          830 lbs     (2 series)

Application Information

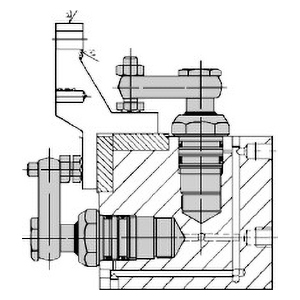

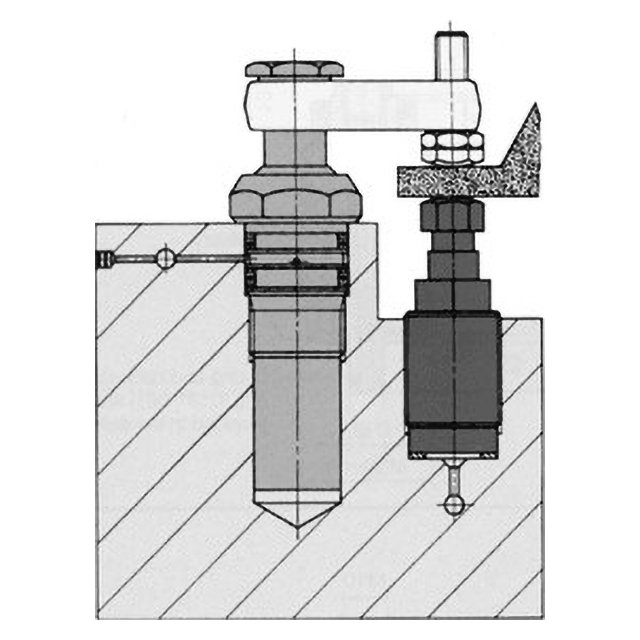

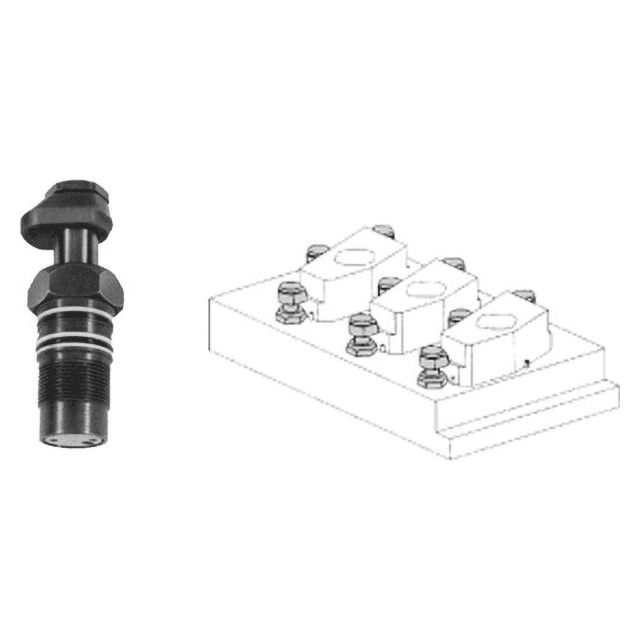

Manifold mounting allows placing these swing clamps very close together. When clamping over a work support, these swing clamps are ideally matched with small threaded-body work supports (1500 lbs load capacity at 7500 psi). The design rule in such applications is that work-support load capacity should be at least 2X clamping force. This fixture has three workpieces held by nine swing clamps with short clamping arms. Short arms extend only .16" onto the workpiece, but are ideal for some small parts.

Clamping Action

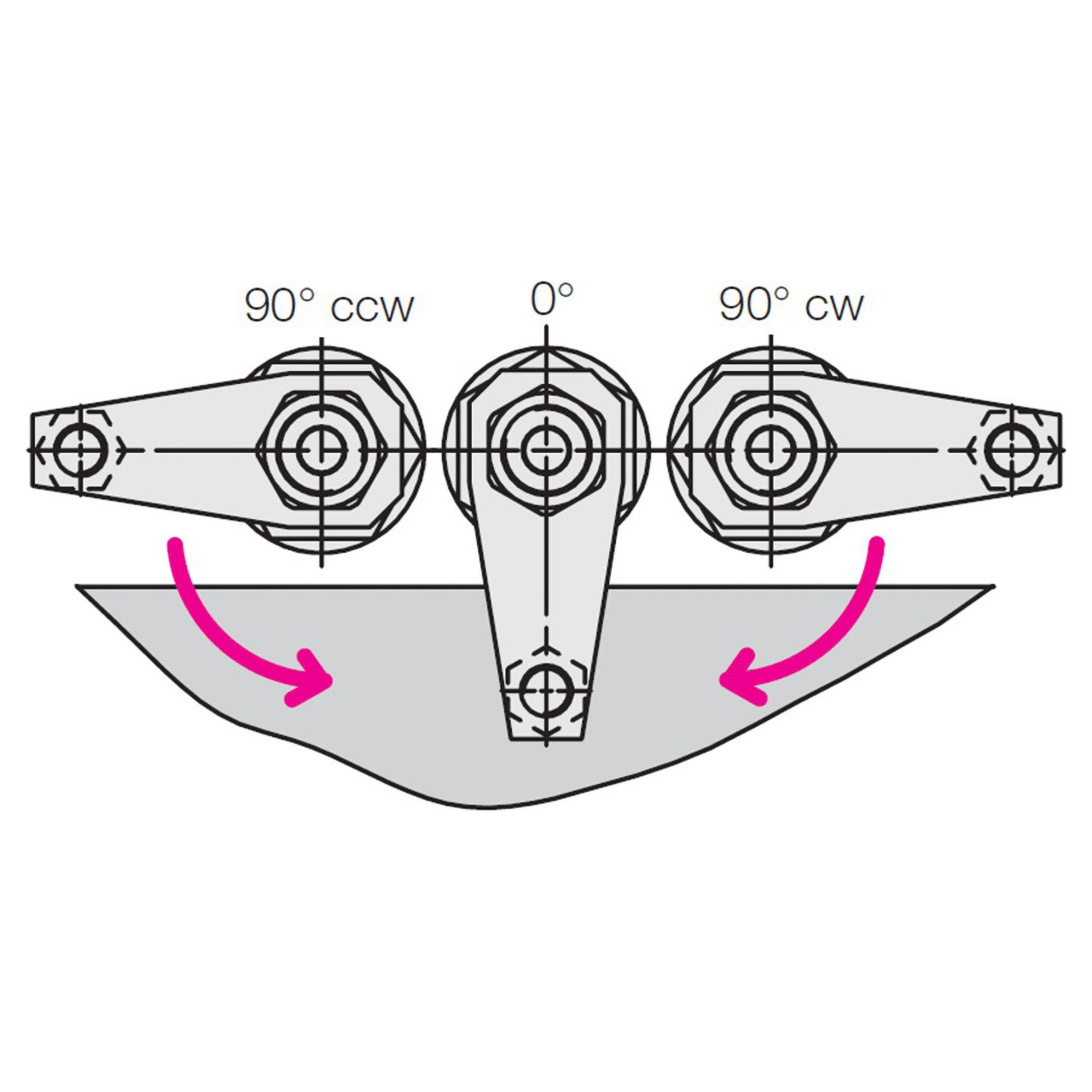

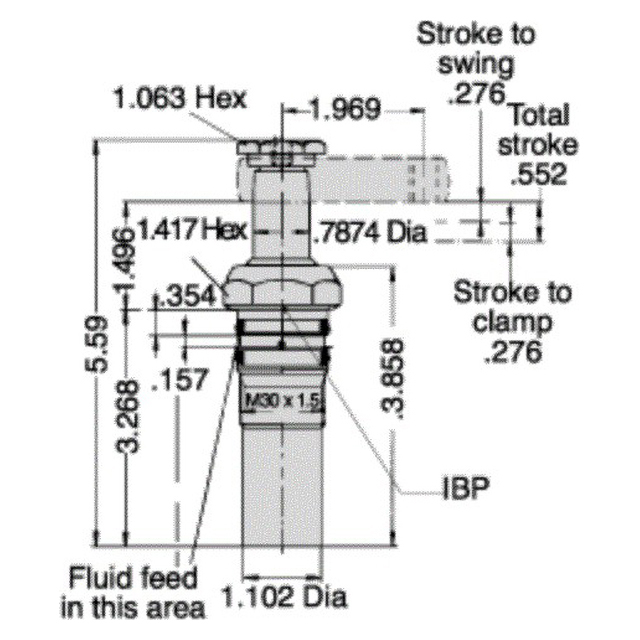

Available with clockwise, counterclockwise, or zero Degree swing Swing Clamps are pull-type cylinders where part of the total stroke is used to swing the piston, and the remaining stroke is available as the clamping range. Applying fluid pressure swings arm 90 Degree over workpiece then clamps down. Single-acting version has a fast, totally dependable spring return that lifts arm then swings it back 90 Degree for loading/unloading. Optional fluid return (double acting).

Design Considerations

These Swing Clamps incorporate our unique safety-clutch mechanism. If the clamping arm strikes an unexpected object during its swing, the clutch disengages to avoid damaging the object or the clamp's helical-cam mechanism. Do not exceed maximum fluid flow rate in table. For extended clamp life and proper operation of the safety clutch, a simple flow-control valve may be required if the fixture is powered by a high-flow-rate power source and only contains a few clamps. Clamping time should be at least one second.

Mounting & Fluid Supply

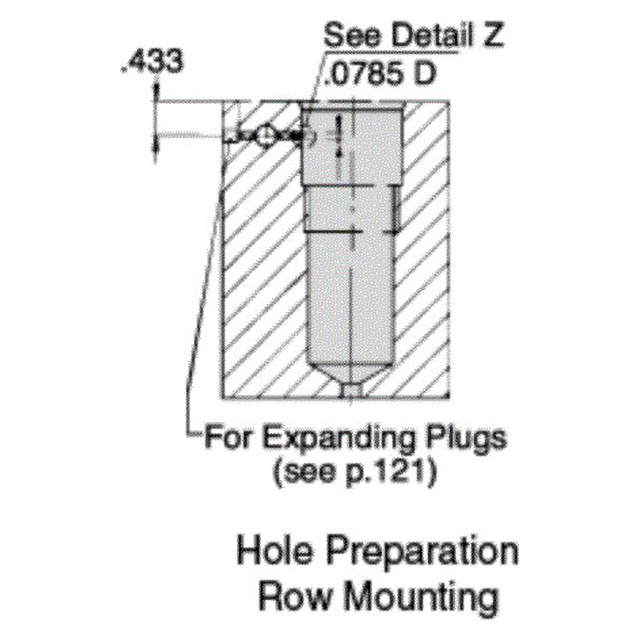

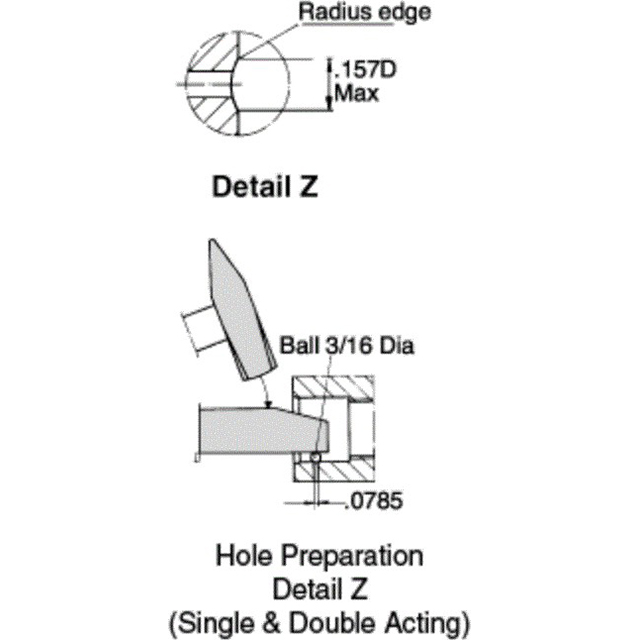

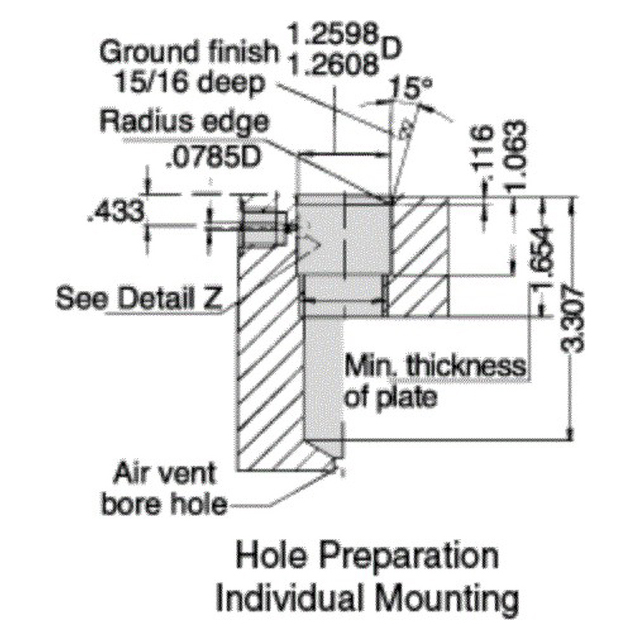

Screw clamp into fixture up to the body hex. Threaded-cartridge clamps have O-ring seals on their outside diameter, so they require a precision mounting hole. Carefully follow hole-preparation instructions in the drawings. Round the sharp edge on the upper fluid passage with a 3/16" dia ball as shown in Detail Z of the drawings (otherwise the lower O-ring can be damaged when the clamp is screwed in). Check for burrs with finger before installing. Fluid passages must be drilled exactly as shown in the drawings. Do not use NPT fittings.

Clamping Arm

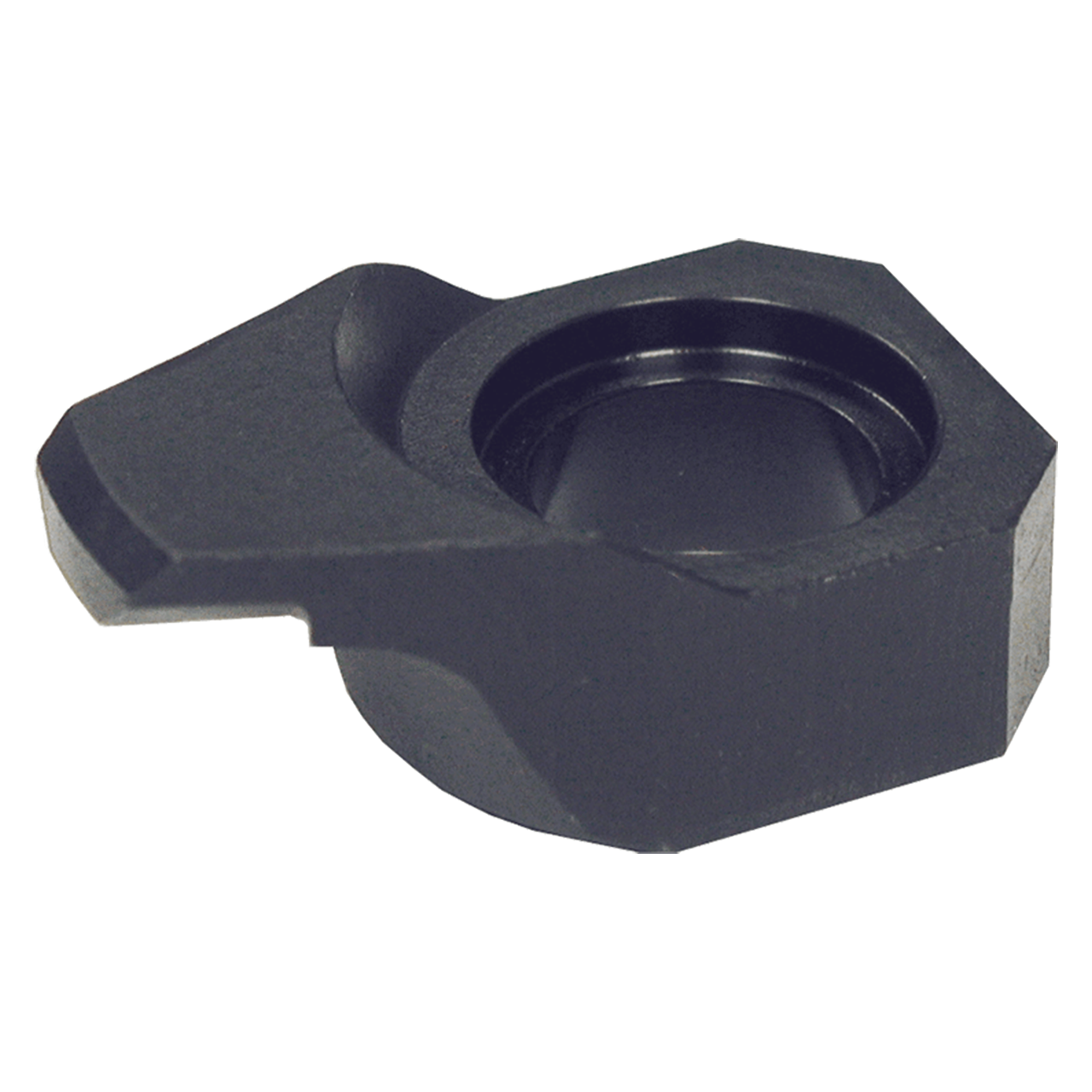

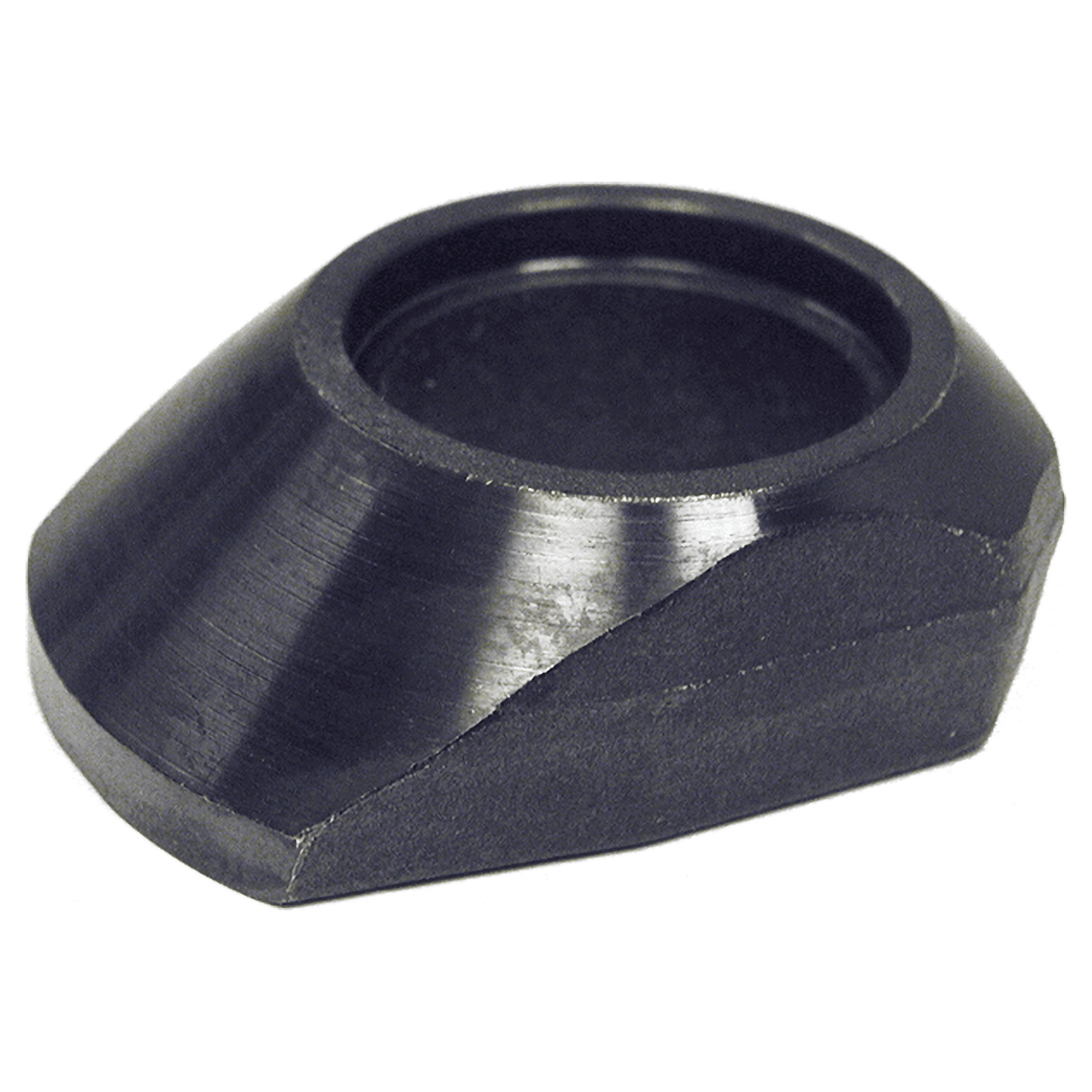

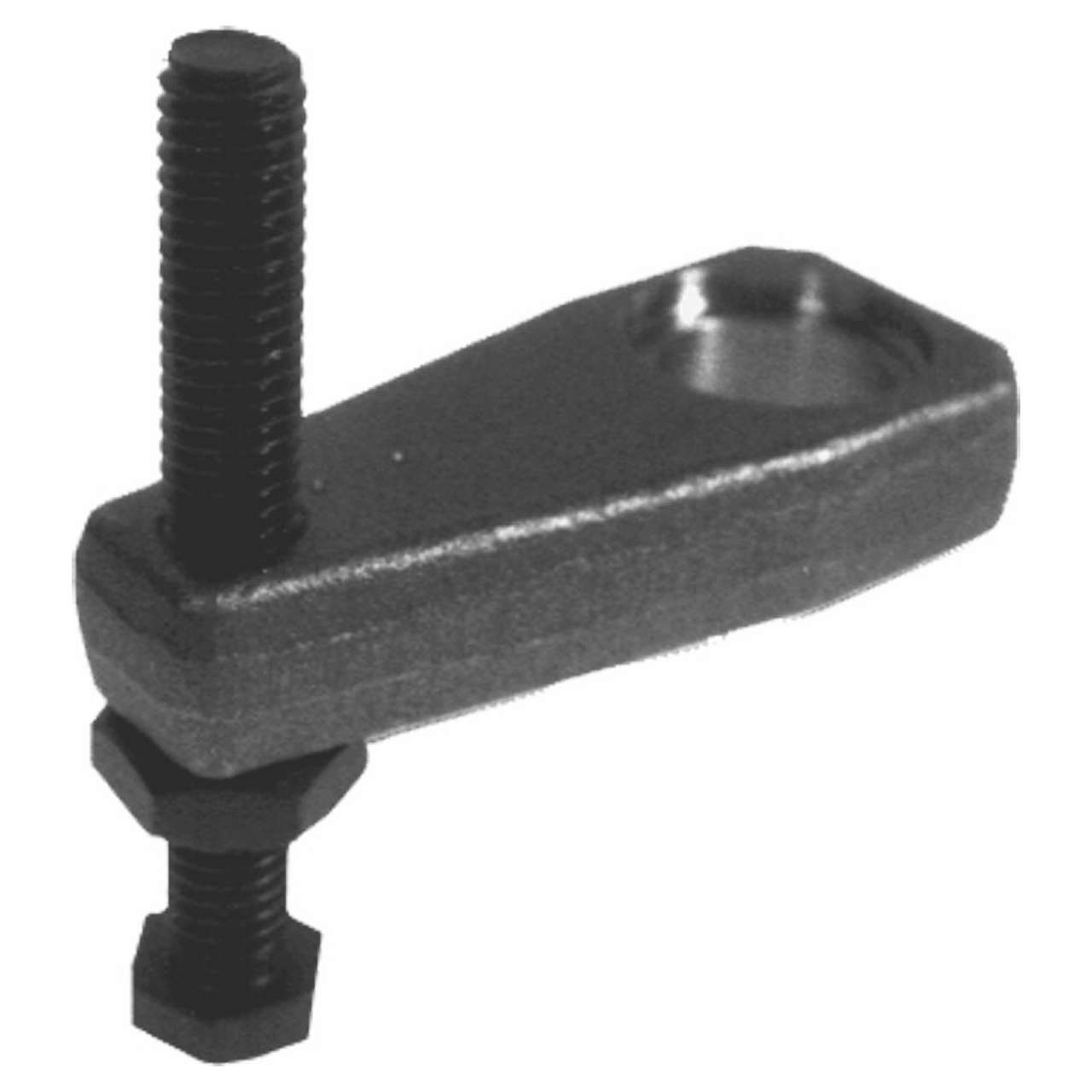

Standard Clamping Arm 7250 psi max Gooseneck Clamping Arm5000 psi max Short Clamping Arm 7250 psi max Order clamping arm separately. Standard Clamping Arms can be used at pressures up to 7250 psi on these clamps.

Parts Specification
