Product Information

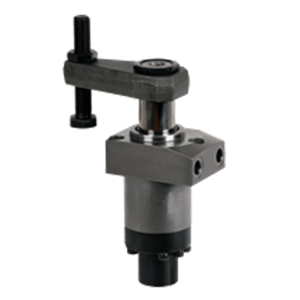

3000 to 7250 psi max Double Acting This special series of double-acting Swing Clamps is designed for automated high production, featuring a reinforced swing mechanism to ensure positive arm position, and an extended helix rod for built-in pneumatic or electrical position-monitoring capability. Automation-type clamps are a further development of our proven Swing-Clamp line to improve safety in process-linked clamping systems. These Swing Clamps are ideal when it is essential to know exact timing of swing-arm position for unrestricted workpiece loading and unloading. They are particularly suited for: clamping fixtures with workpiece loading via handling systems; transfer lines; test systems for motors, gears, and axles; automated manufacturing systems; and assembly lines. Available in three clamp sizes, double acting only, in the three types shown below: Top FlangeFlange Base Threaded Cartridge Contact Customer Service Contact Customer Service
Parts Specification
Part Number | CLAMP SIZE | ADIA | BDIA+0/-.008 | C | D | E |
CLR-3301-019 | 2 series | 2.441 | 1.772 | .433 | .020 | M32x1.5 |
