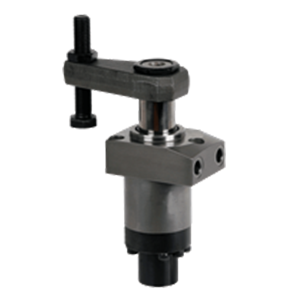

Carr Lane CLR-3527-076 | 1.575 Diameter 1 series Size Automation-Type Swing Clamp

$16.71
Brand:
Carr Lane
SKU:
70038910
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Product Information

3000 to 7250 psi max Double Acting This special series of double-acting Swing Clamps is designed for automated high production, featuring a reinforced swing mechanism to ensure positive arm position, and an extended helix rod for built-in pneumatic or electrical position-monitoring capability. Automation-type clamps are a further development of our proven Swing-Clamp line to improve safety in process-linked clamping systems. These Swing Clamps are ideal when it is essential to know exact timing of swing-arm position for unrestricted workpiece loading and unloading. They are particularly suited for: clamping fixtures with workpiece loading via handling systems; transfer lines; test systems for motors, gears, and axles; automated manufacturing systems; and assembly lines. Available in three clamp sizes, double acting only, in the three types shown below: Top FlangeFlange Base Threaded Cartridge Contact Customer Service Contact Customer Service

Parts Specification

Part NumberCLAMP SIZEADIABDIA+0/-.008CDE
CLR-3527-0761 series1.5751.339.354.020M27x1.5
