Carr Lane CLR-3548-1124 | 4 Clamp Size Compact Clamp

Product Information

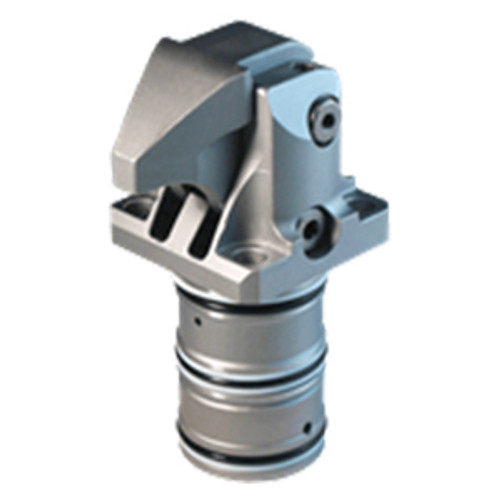

3600 psi max Double Acting Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact both in footprint and overall height. The clamping lever pivots a full 90 Degree for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The top-flange cartridge-type version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure. Available in four clamp sizes, double acting only. Clamping force at 3600 psi with standard clamping arm:            560 lbs             900 lbs          1680 lbs          2360 lbs

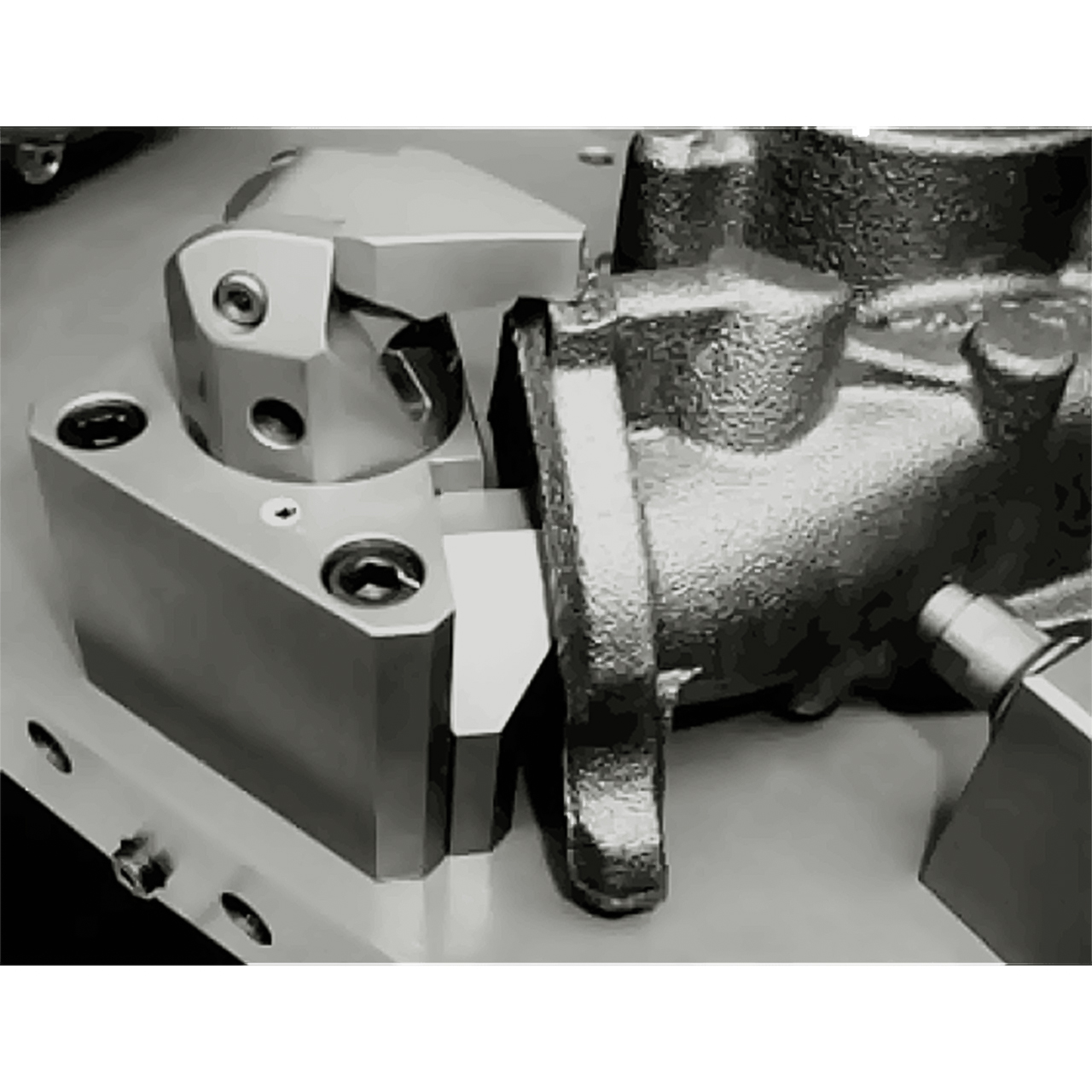

Application Information

Clamping Action

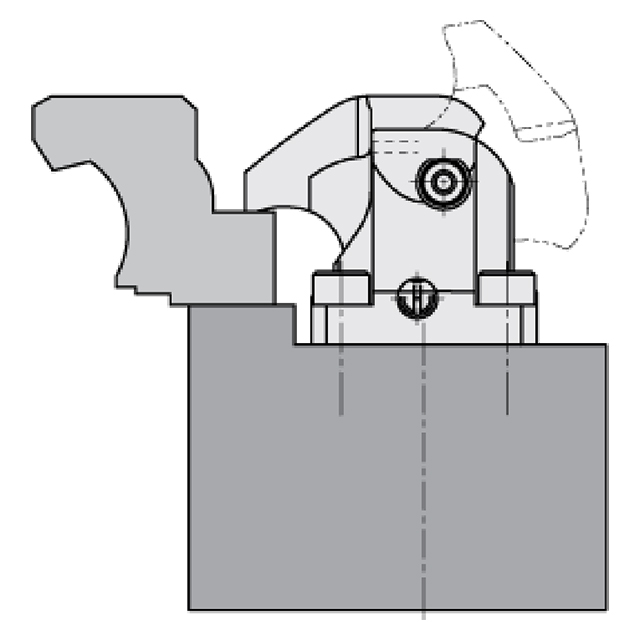

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

Mounting & Fluid Supply

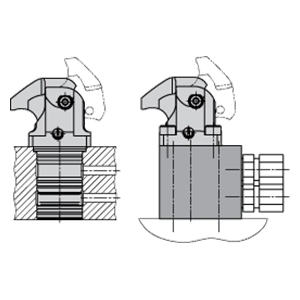

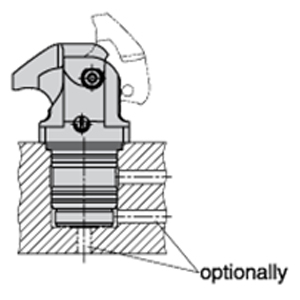

Version 1 With Bottom Cover for Open-Bore Mounting Manifold mounting in a bored through hole, or with accessory mounting block using standard fittings. Version 2 Without Bottom Cover for Closed-Bore Mounting Manifold mounting in a closed pocket hole Fasten clamp with four socket-head cap screws. Threaded-cartridge clamps have O-ring seals on their outside diameter, so they require a precision mounting hole. Carefully follow hole-preparation instructions in the drawings. Fluid passages must be drilled exactly as shown. Do not use NPT fittings.

Clamping Arm

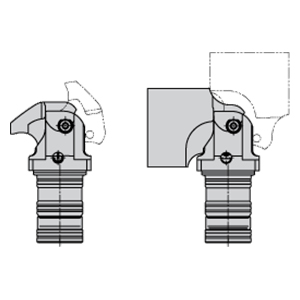

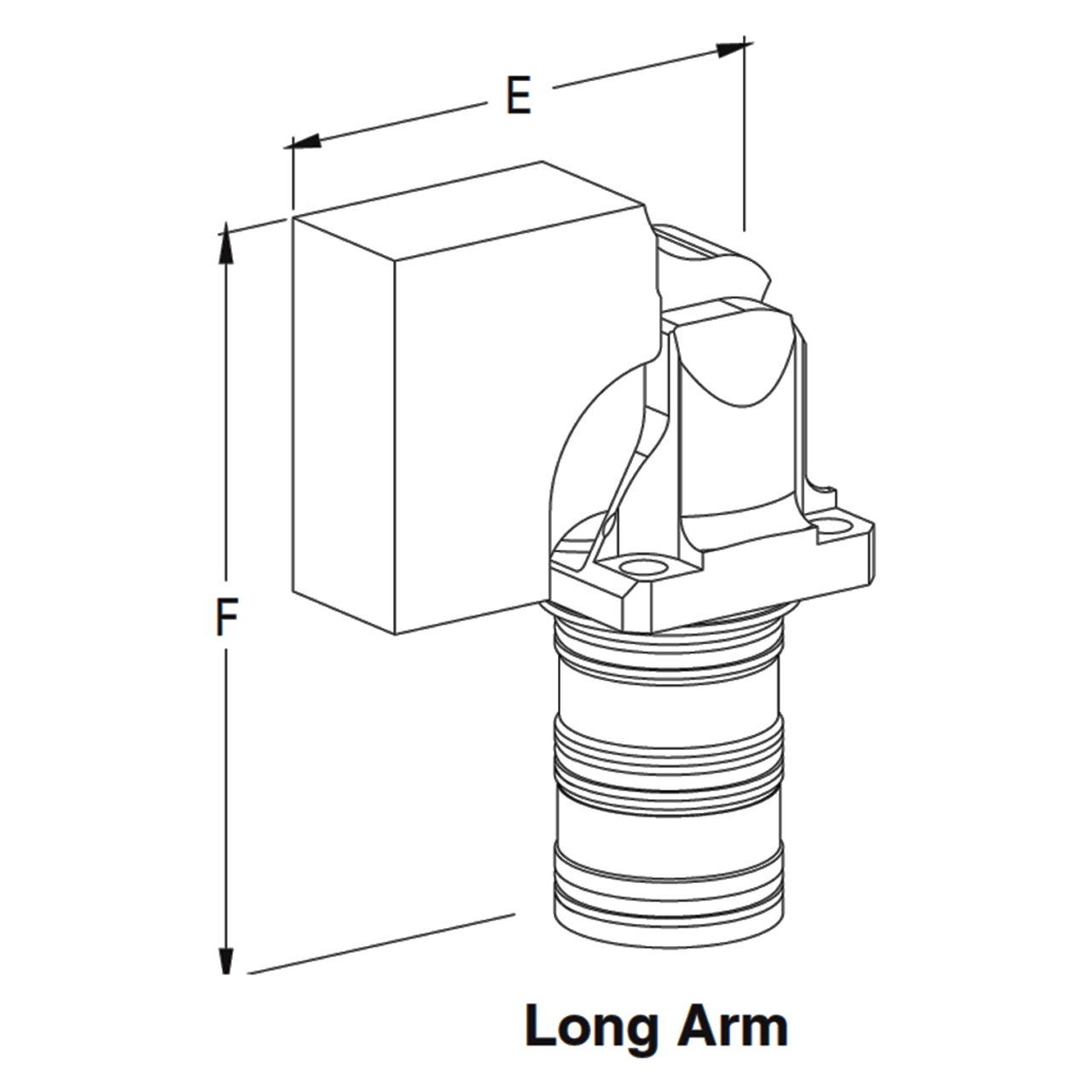

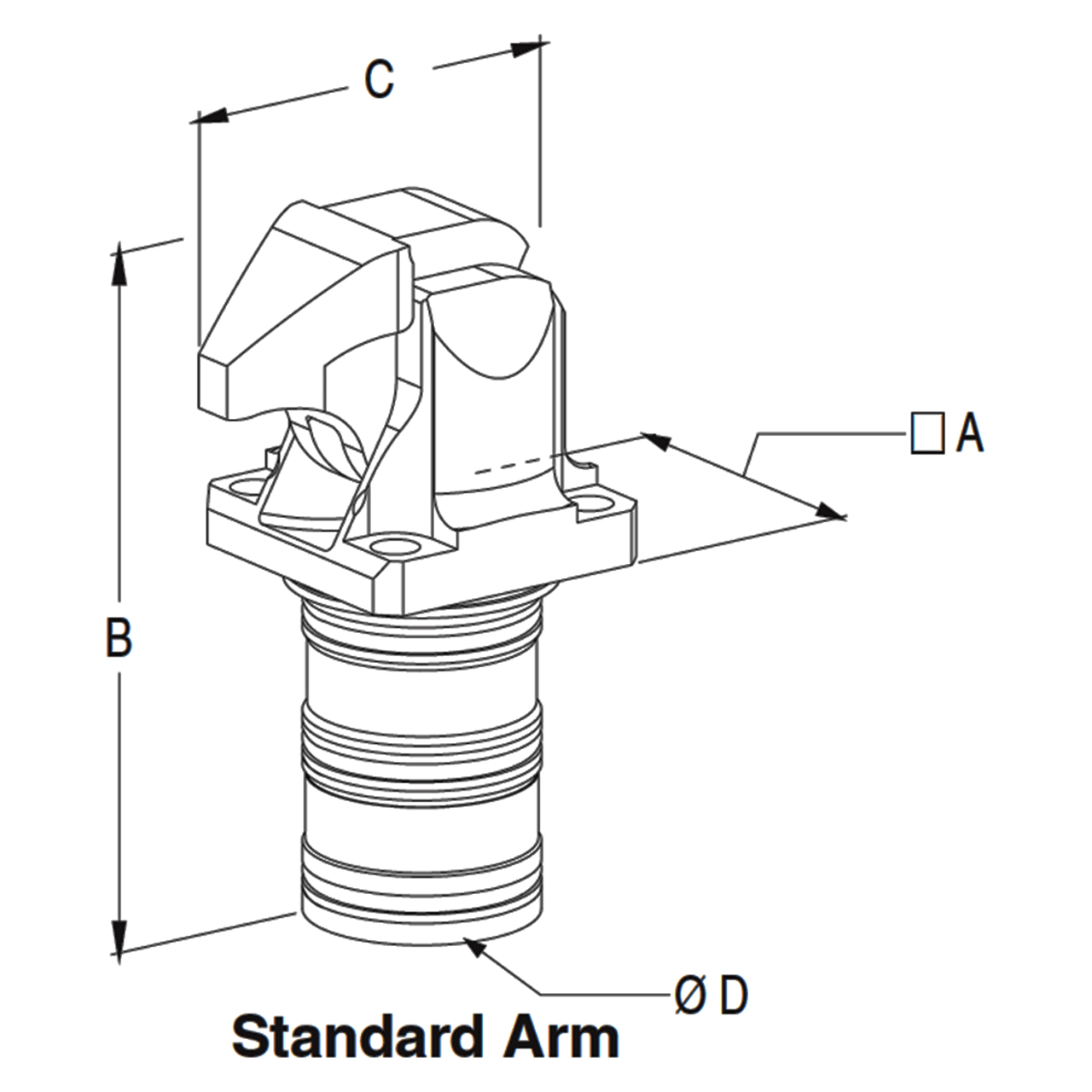

Choice of standard short clamping arm (Left) or long blank clamping arm for customization (Right).

Material

Parts Specification
