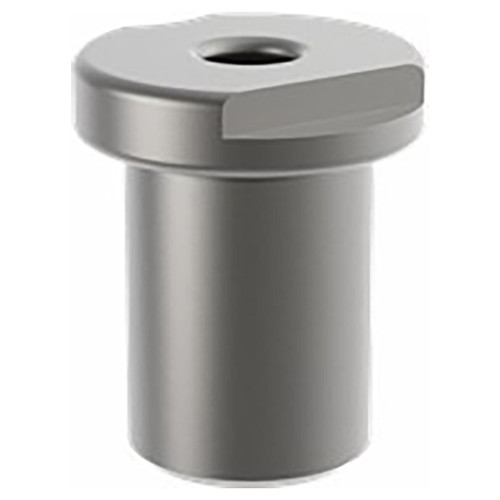

Carr Lane FM-112-12-1.1811 | Flat-Milled Renewable Bushing

Flat-Milled Renewable Bushings

Replaceable bushing used for extra resistance to rotational forces under harsh conditions. This type of bushing, generally used with a liner bushing, has a milled locking flat to allow fastening securely with a Flat Clamp. FM bushings also have a standard recess on the other side to allow fastening with a Lockscrew instead.

Application Information

This replaceable bushing, generally used with a liner bushing, has a milled locking flat to allow fastening securely with a Flat Clamp.

ID Tolerance

Standard ID Tolerance:

• From #80 to 1/4" +0.0001/+0.0004
• Over 1/4 to 3/4" +0.0001/+0.0005
• Over 3/4 to 1-1/2" +0.0002/+0.0006
• Over 1-1/2 and up +0.0003/+0.0007

Reamer ID Tolerance (Special):

• From #80 to 1/4" +0.0005/+0.0008
• Over 1/4 to 3/4" +0.0006/+0.0010
• Over 3/4 to 1-1/2" +0.0008/+0.0012

OD Tolerance

Standard OD Tolerance:

• 3/16 to 1" 0/-0.0002
• 1-3/8 to 1-3/4" 0/-0.0003
• 2-1/4 to 3-1/4" 0/-0.0004

No-Counterbore Option on Long Bushings*

Extremely long bushings with a small ID size are counterbored according to ANSI standards for proper drill-bearing length to eliminate binding and heat buildup.

Material

Parts Specification
