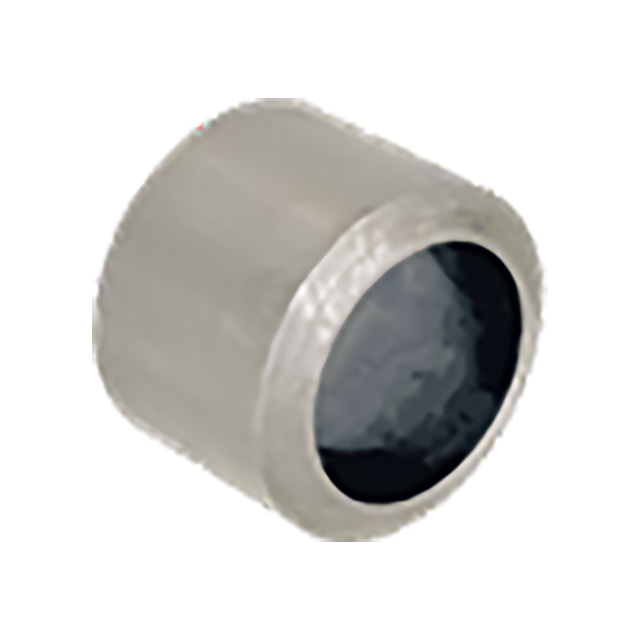

Carr Lane GDI-48-16-.3780 | 3/4" OD x 1" Length Gun-Drill Bushing

Gun-Drill Insert Bushing

Gun-Drill Bushings are used on gun-drilling machines, such as Eldorado, Drillmation, DeHoff, and Lahr. These bushings are similar to SF renewable bushings, except reversed, with the drill bearing at the bushing's head end, which contacts the workpiece. This two-piece system offers maximum economy and flexibility. Only a few liner sizes are required to hold a wide range of replaceable inserts to fit specific gun-drill sizes. Inserts extend slightly beyond the liner head, to contact the workpiece.

Application Information

ID Tolerance

From #52 to 1-1/32"     +0.0000/+0.0002

OD Tolerance

3/4 to 1"          +0.0018/+0.0015

Material

Parts Specification
