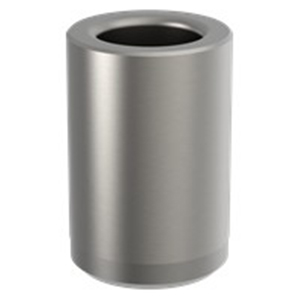

Carr Lane PM-10-10-5.40 | 5.40mm Inner Diameter x 10.00mm Outer Diameter x 10.00mm Length Press-Fit Bushing (PM)

Product Information

Metric version of our popular P bushing. PM bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. PM bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads. Metric Liner Bushings are simply specific large ID sizes of PM Press-Fit Bushings. Complete part numbers for all standard Metric Press-Fit Bushings (all standard ID, OD, and length combinations) are listed in the tables below. The Part Configurator link at the top of this page can be used for any PM bushing, either standard or special.

Application Information

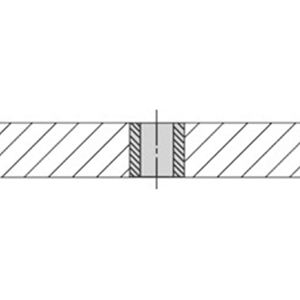

PM bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance (G6):          From .35 to 3mm       +.002/+.008mm          Over 3 to 6mm           +.004/+.012mm          Over 6 to 10mm         +.005/+.014mm          Over 10 to 18mm       +.006/+.017mm          Over 18 to 30mm       +.007/+.020mm          Over 30 to 50mm       +.009/+.025mm          Over 50 to 80mm       +.010/+.029mm          Over 80 and up          +.012/+.034mmReamer ID Tolerance (F6) (Special):          From 1 to 3mm        +.006/+.012mm           Over 3 to 6mm         +.010/+.018mm          Over 6 to 10mm       +.013/+.022mm          Over 10 to 18mm     +.016/+.027mm          Over 18 to 30mm     +.020/+.033mmReamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:          PM-8-12-4.50-REAMER     (Special)

OD Tolerance

Standard OD Tolerance (s6):          4 to 6mm             +.027/+.019          7 to 10mm           +.032/+.023          12 to 18mm         +.039/+.028          22 to 30mm         +.048/+.035          35 to 48mm         +.059/+.043          55 to 62mm         +.072/+.053          70 to 78mm         +.078/+.059          85 to 95mm         +.093/+.071          105mm                +.101

Counterbore on Small Drill Sizes

Metric bushings with small drill sizes through .80mm are counterbored 1.00mm diameter with 3mm drill-bearing length, according to ANSI standards, to eliminate binding and heat buildup.

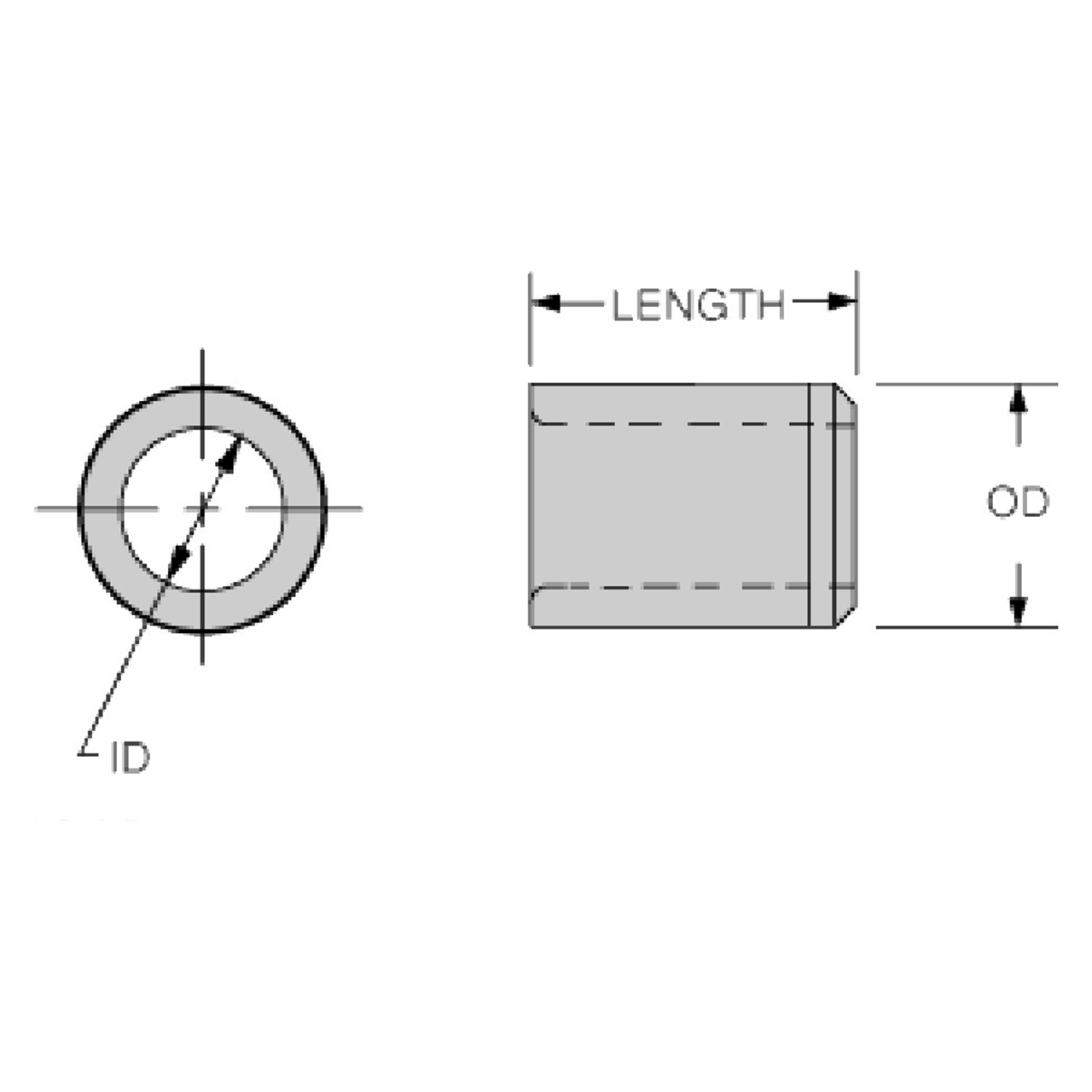

Material

Parts Specification
