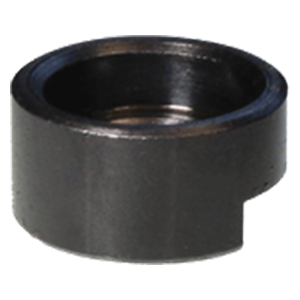

Carr Lane RC-04-PACKOF2 | 3/4 Diameter x 3/8-16 Head Cap Screw Round Clamp

Product Information

Heavy-duty alternative to Lockscrews when clamping the "fixed" side of a renewable bushing. Round Clamps have a slightly shorter recess height than a Lockscrew, to clamp bushings without clearance (which is why they cannot be used on the bushing's "slip" side). Available in a wide range of sizes to fit renewable bushings from 5/16 to 5" body diameter. See bushing pages to select proper clamp size. These Round Clamps are designed for standard mounting only (fully recessed liner bushing). For projected mounting (head liner with head not recessed) use a Round End Clamp instead. See Related Products below.

Installation

Fasten with a Socket-Head Cap Screw. Note: a Round Clamp can be installed in the same tapped-hole location as a Lockscrew.

Material

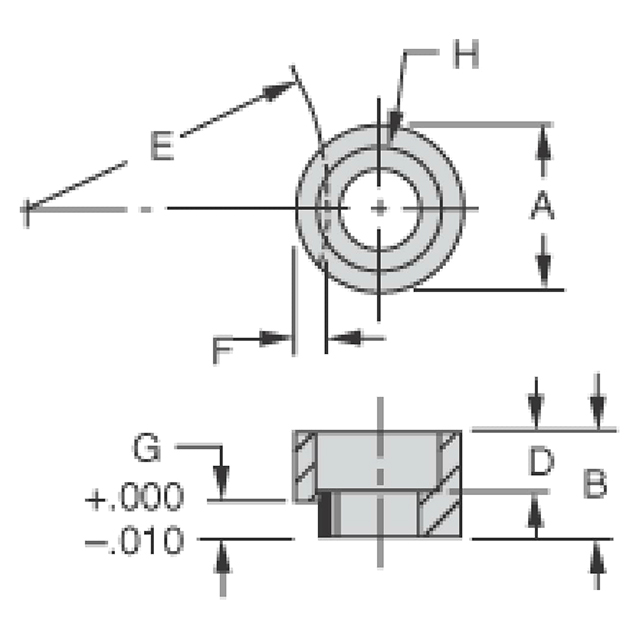

Parts Specification
