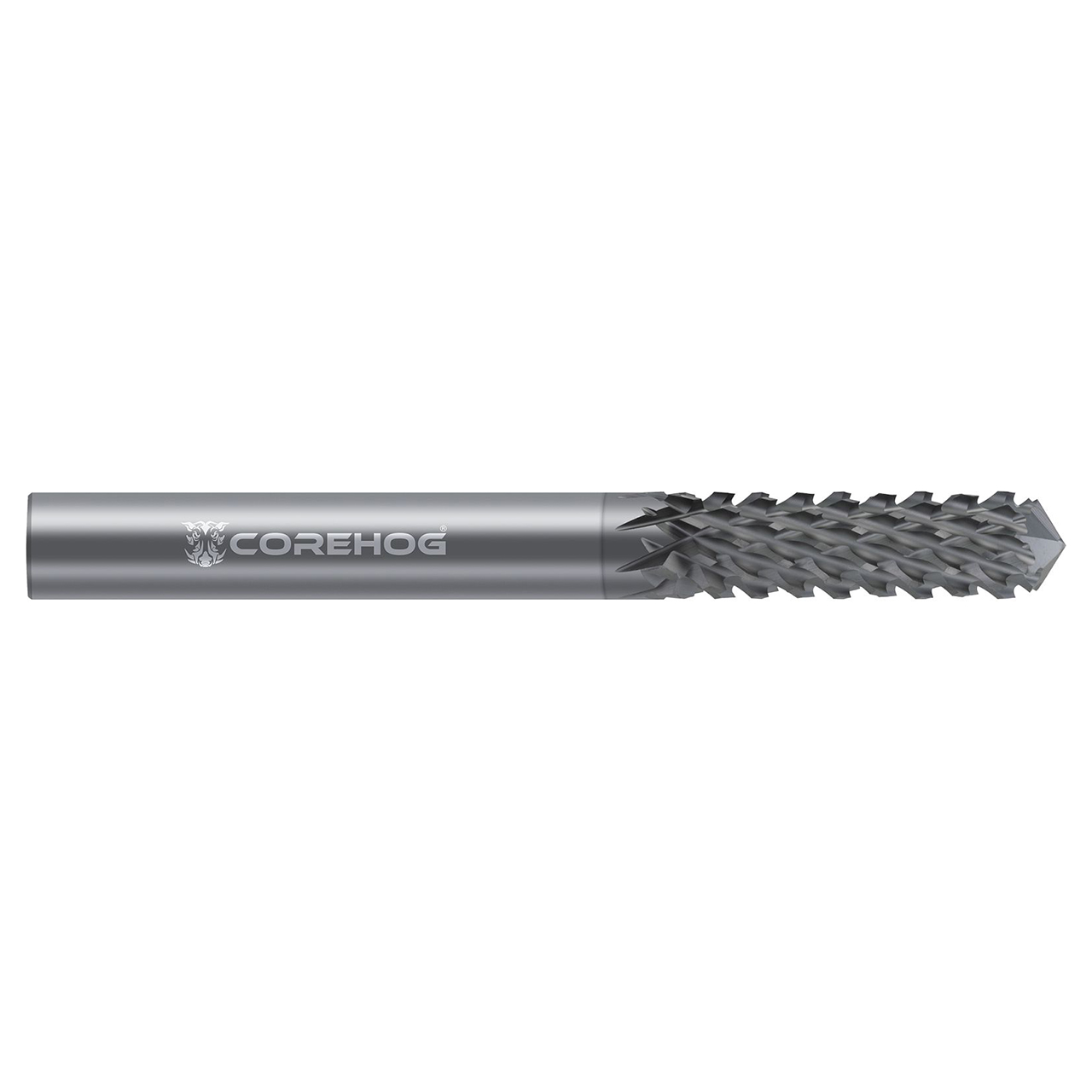

Engineered with geometry for plunging or drilling entry, CoreHog CFRP MAX routers-drill point style-Upcut are designed to provide high feed rates while maintaining excellent finish.
Features:
- Designed to provide high feed rates while maintaining excellent finish
- Free cutting geometry minimizes delamination
- Optimized for trimming CFRP and provides excellent performance in S-glass and other fiberglass materials
- Center cutting
- True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C18336 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 3.000" (3) |
| Metric | N |
| Coating | Chemical Vapor Deposition |
| Substrate | Solid Carbide |
| Number of Flutes | 12 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Number of Flutes:
12
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Finish/Coating:
CVD Diamond
Material:
Solid Carbide
