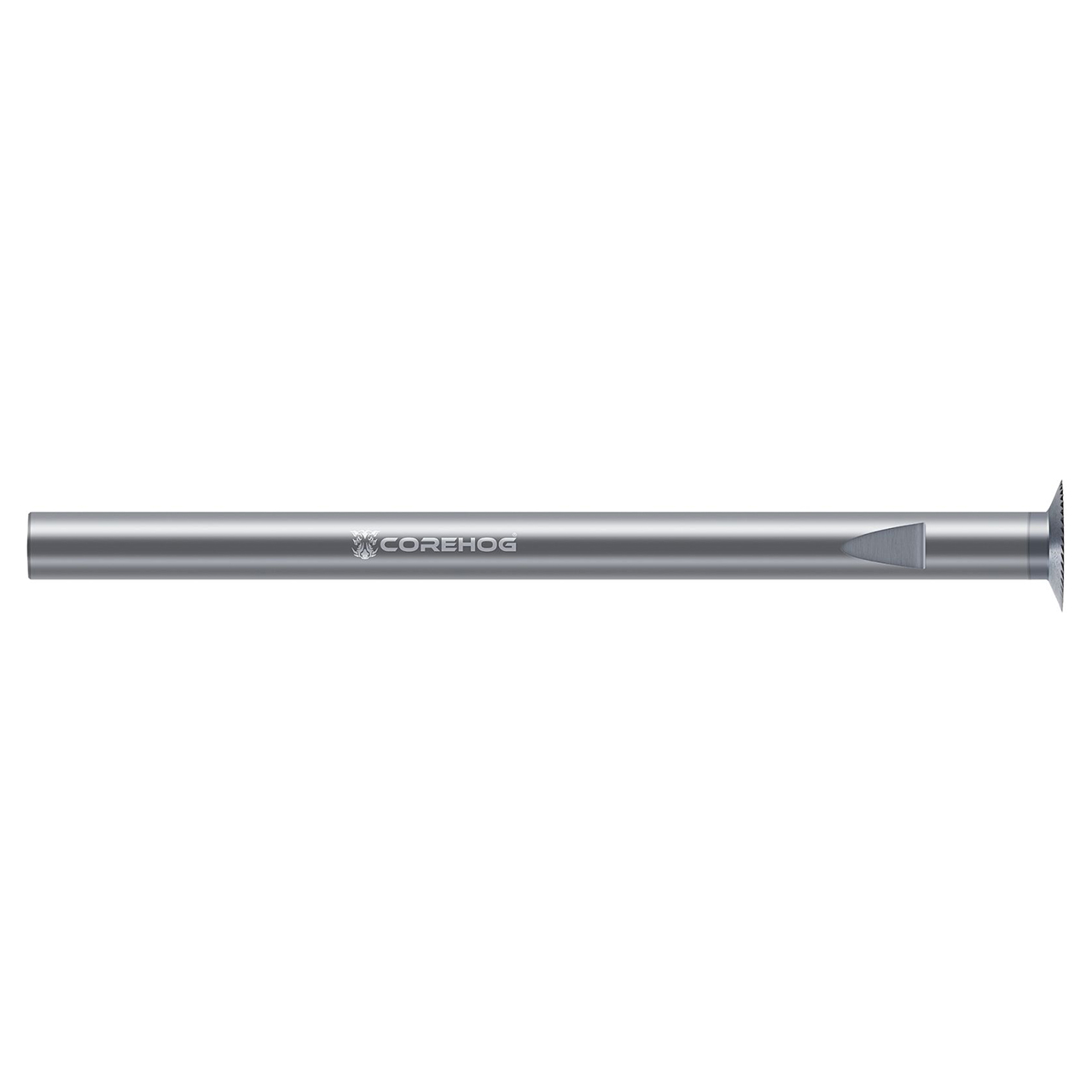

Paired with CoreHoggers, CoreHog's Finishing core tools-small coreslicers provide increased performance during the finishing of honeycomb core materials, and include TiCN coating for extended tool life and improved wear resistance.
Features:
- Optimized for reaching into small, closed features such as pockets, joggles, and closed walls
- Pair with a small CoreHogger for increased performance
- Whistle notch for small CoreHogger assembly set screw
- TiCN coating for extended tool life and improved wear resistance
- Solid carbide
- Precision manufactured in the USA
- Complete assembly consists of small CoreHogger and small coreslicer
Product Specifications
| Manufacturer Part Number | C39016 |
| Cutter Diameter (Inch) | 0.1960" |
| Shank Diameter (Inch) | 0.1180" |
| Overall Length (Inch) | 1.417" |
| Metric | N |
| Coating | TiCN |
| type | Smooth |
| Substrate | Solid Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Cutter Diameter (Decimal Inch):
0.1960"
Cutter Diameter (mm):
5.00mm
Shank Diameter (Decimal Inch):
0.1180"
Shank Diameter (mm):
3.00mm
Overall Length (Decimal Inch):
1.4170"
Overall Length (mm):
36.00mm
Finish/Coating:
TiCN
Material:
Solid Carbide
