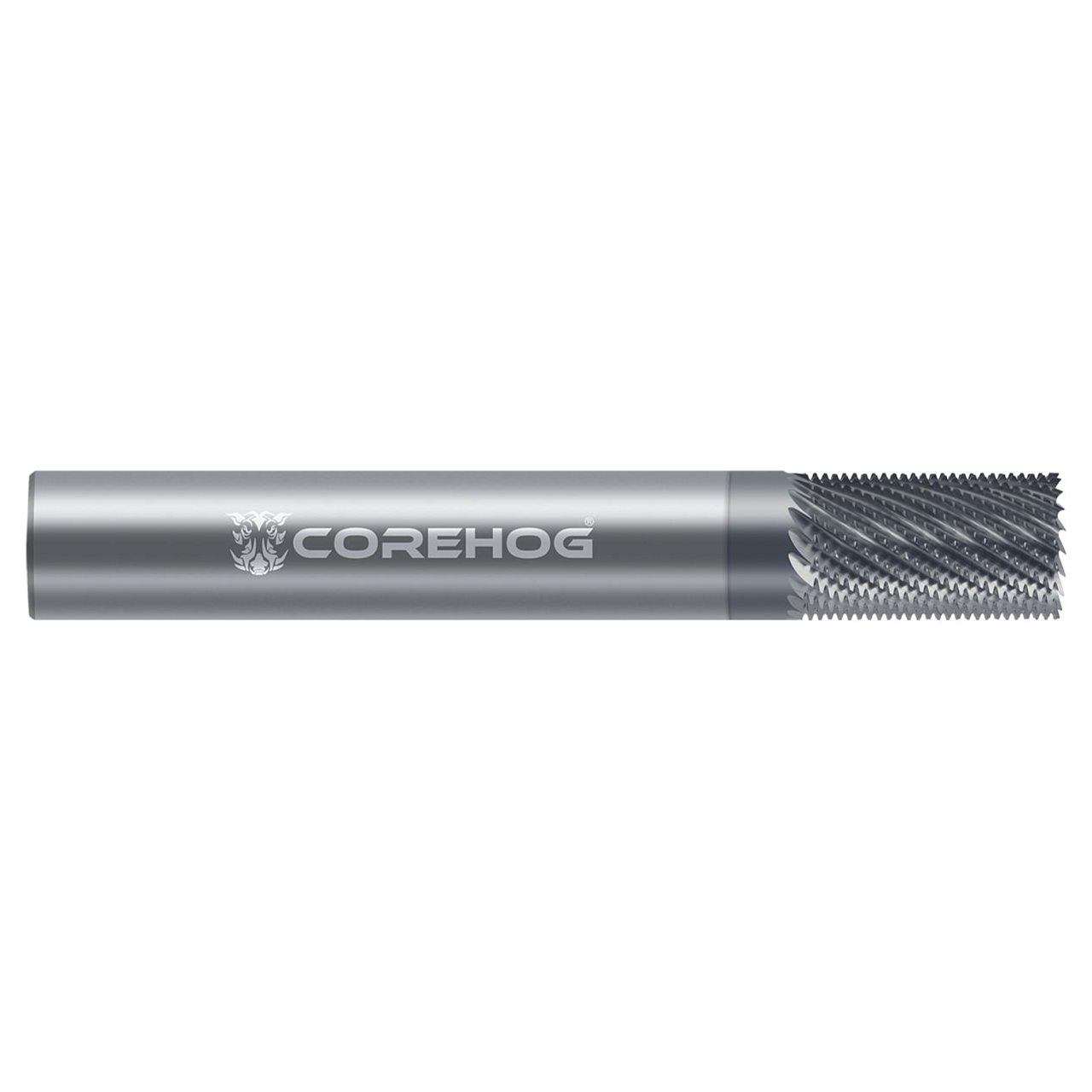

When used with a medium coreslicer, CoreHog's finishing core tools-medium CoreHoggers work to excellently shape smaller complex surfaces, bevels, and external radius in honeycomb core materials.
Features:
- Optimized for shaping smaller complex surfaces, bevels, and external radii in honeycomb core materials
- Solid carbide versions available for superior tool life
- High speed steel
- Precision manufactured in the USA
- Complete assembly consists of medium CoreHogger and medium coreslicer
Product Specifications
| Manufacturer Part Number | C51776 |
| Cutter Diameter (Inch) | 0.6299" |
| Length of Cut (Inch) | 1.1811" |
| Shank Diameter (Inch) | 0.6299" |
| Overall Length (Inch) | 4.724" |
| Size | .750 / 1.000 |
| Assembly Size Pairing | .750 / 1.000 |
| Metric | N |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Number of Flutes | 20 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Cutter Diameter (Decimal Inch):
0.6299"
Cutter Diameter (mm):
16.00mm
Number of Flutes:
20
Length of Cut (Decimal Inch):
1.1811"
Length of Cut (mm):
30.00mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Overall Length (Decimal Inch):
4.7240"
Overall Length (mm):
120.00mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
interval quantity:
1
