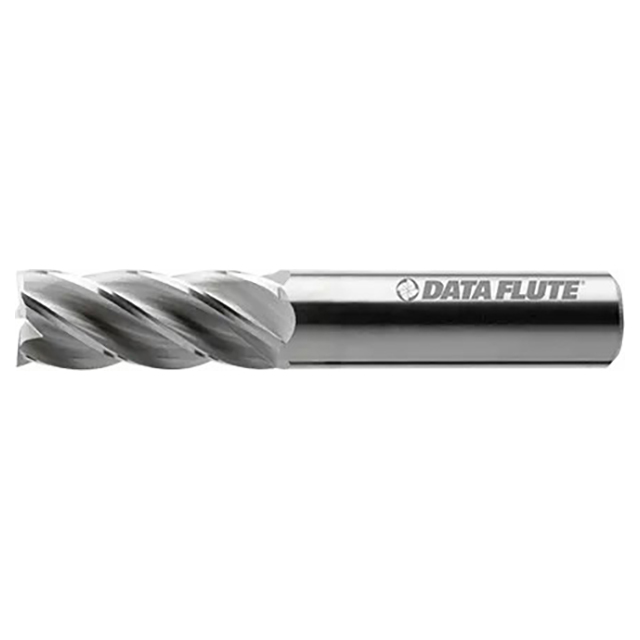

The Aluminum Multi-Flute Series (AMF) features patented geometries with a flute form that reduces unwanted harmonics. The AMF provides unparalleled surface finishes at superior feed rates in aluminum and other non-ferrous materials. This tool can also profile in some peripheral roughing applications. With its special geometry for process dampening, the AMF is a perfect choice for straight wall finishing.
Features:
- Unequaled Surface Finish
- Performance Geometry Developed for Machining Aluminum
- Unique Double Duty Performance Characteristics
Product Specifications
| Manufacturer Part Number | AMFL50250 |
| Diameter (Inch) | 1/4" |
| Shank Diameter (Inch) | 1/4" |
| Length of Cut (Inch) | 1-1/4" |
| Overall Length (Inch) | 3-1/4" |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Data Flute
Diameter (Inch):
1/4"
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
1-1/4"
Overall Length (Inch):
3-1/4"
Finish/Coating:
Uncoated
Diameter (Decimal Inch):
0.2500"
Length of Cut (Decimal Inch):
1.2500"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Decimal Inch):
3.2500"
