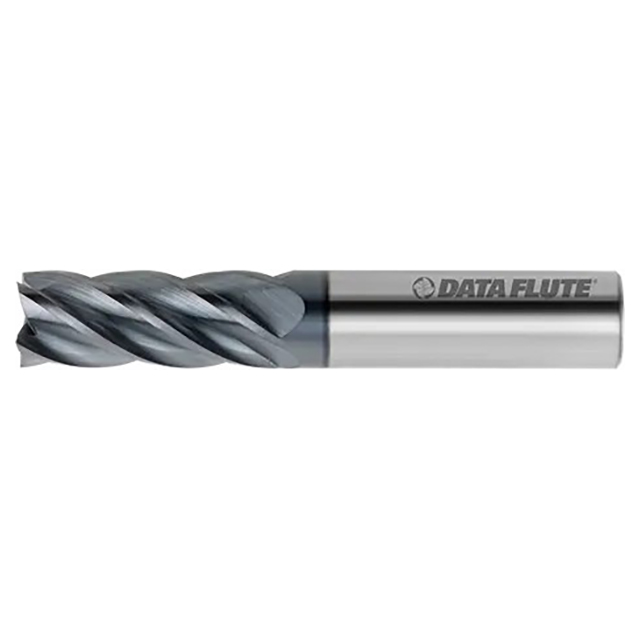

The SSI-5 is the all terrain vehicle of our ferrous alloy series tools. It can chew up the road in most roughing applications and at the same time provide smooth, high speed cruising well into finishing range. The SSI-5 will appeal to those who demand high performance and seek to minimize tool changes in a wide range of operations. This series has the addition of a Radius Program from stock.
Features:
- 5 Flute, Variably Indexed
- Roughing and Finishing in Titanium and Ferrous Alloys
- 5th Flute Enables Increased Metal Removal Rates
- Stocked in Square Ends and Radii
Product Specifications
| Manufacturer Part Number | SSIST50437-030C10 |
| Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Length of Cut (Decimal Inch) | 0.563" |
| Overall Length (mm) | 2.50mm |
| Radius (mm) | 0.03mm |
| Coating | C10 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
DATA FLUTE
Diameter (Decimal Inch):
0.4380"
Shank Diameter (Decimal Inch):
0.4380"
Length of Cut (Decimal Inch):
0.5630"
Overall Length (mm):
2.50mm
Radius (mm):
0.03mm
Finish/Coating:
C10
interval quantity:
1
