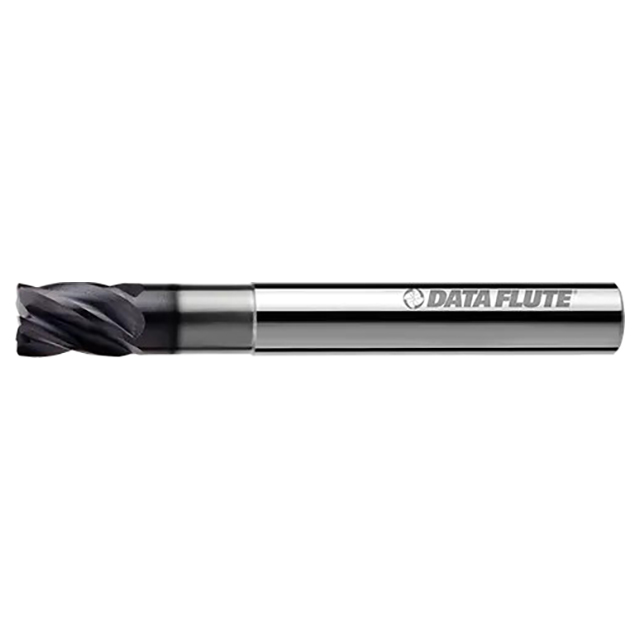

The introduction of the TiW series was designed for thin wall machining of Titanium Aerospace Structures with walls 3 times or more the diameter in depth of wall. The TiW series has patented geometries which improve Process Dampening in machining thin wall structures.
Features:
- Variable Index
- Variable Helix
- Full Eccentric Grind
- Special Patented Thin Wall Geometry Design
Product Specifications
| Manufacturer Part Number | TiWL50500-060C11 |
| Diameter (mm) | 0.50mm |
| Shank Diameter (mm) | 0.50mm |
| Length of Cut (Decimal Inch) | 0.625" |
| Overall Length (Decimal Inch) | 6.000" |
| Coating | C11 |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
DATA FLUTE
Diameter (mm):
0.50mm
Shank Diameter (mm):
0.50mm
Length of Cut (Decimal Inch):
0.6250"
Overall Length (Decimal Inch):
6.0000"
Finish/Coating:
C11
