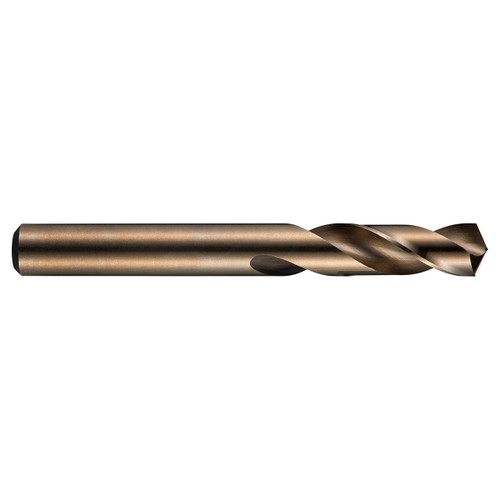

The A620 short drill is available in a range of metric sizes. It has a 130° point angle which helps keep the drill centered on the hole and reduces the amount of downward force needed to cut the workpiece. The bronze finish stops workpiece material from sticking to the cutting edge of the tool. The A620 is manufactured from premium High Speed cobalt and can be used to machine a wide variety of materials, being particularly suited to drilling stainless steels.
Product Specifications
| EDP Number | 46499909 |
| Usable Length | 2.5 |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 2.5984" |
| Point Angle | 130 |
| Material Code | HSS-E |
| Drill Length | Stub |
| Cutting Direction | Right Hand |
| Coating | Bronze |
| Surface Color | Bronze |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Drill Bit Size (Inch):
15/64"
Drill Bit Size (Decimal Inch):
0.2362"
Drill Bit Size (mm):
6mm
Drill Point Angle:
130°
Overall Length (Inch):
2-19/32"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66mm
Material:
HSS-E
Finish/Coating:
Bronze
